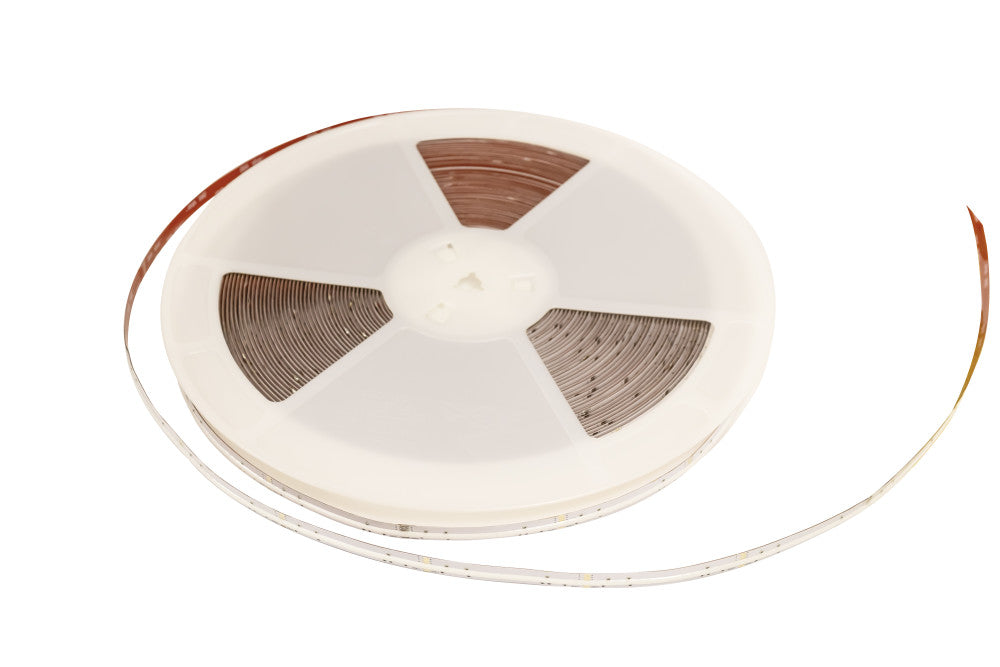

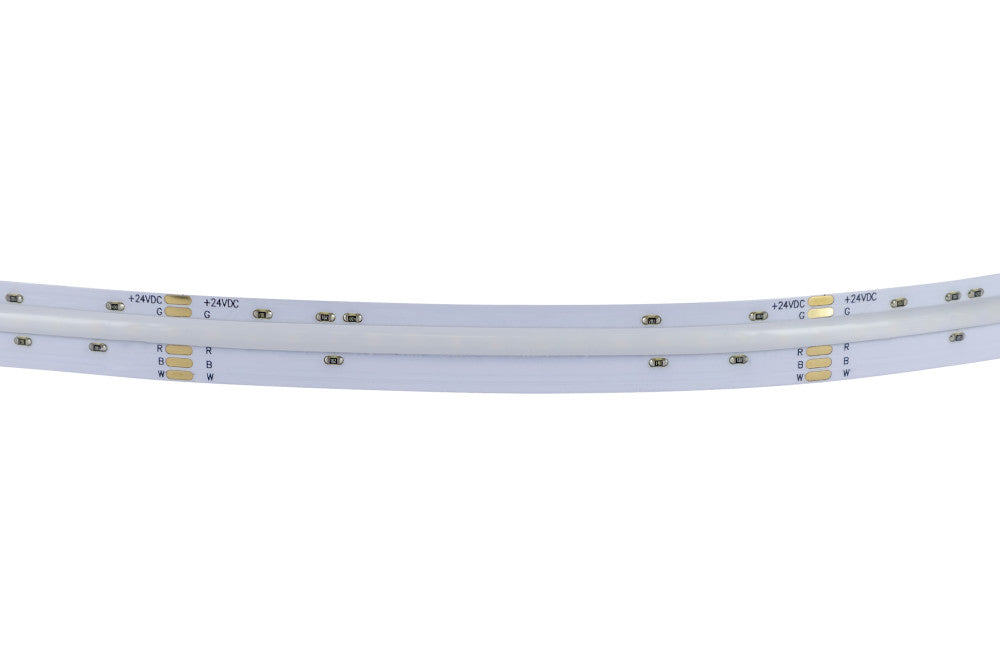

COB HIGH UNIFORMITY PRO STRIP IP20 30M REEL RGB+W 4000K 24V 15W/M 1344LED/M 12MM WIDTH BUILT-IN STEEL LINING - 5M MAX RUN - ILSTRGBWA348E

COB HIGH UNIFORMITY PRO STRIP IP20 30M REEL RGB+W 4000K 24V 15W/M 1344LED/M 12MM WIDTH BUILT-IN STEEL LINING - 5M MAX RUN - ILSTRGBWA348E

Regular price £678.73 exc. VAT
Regular price exc. VAT
exc. VAT
Sale price £678.73

£814.48 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This specialist range LED strip utilises ultra-small LEDs arranged in a close formation to effectively eliminate the visible shadow present in many LED strips. This creates the effect of one continuous line of light, especially when installed within an aluminium profile with a frosted diffuser, whilst the integrated thermal management and gold immersion of the conductive material guarantee outstanding longevity and reliability. The strip is also capable of up to 5 Metres of uniformly lit continuous runs.This High Uniformity Pro strip allows for bringing vibrant colour decoration into your environment. RGBW Strips are a cost-effective way of adding changeable colours along with Cool White light to make your space attractively stand out in domestic and commercial areas. You can use pre-defined colours or select your own from many options from a mix of red, green and blue to match your setting.You can also switch on pulsating colour-changing modes, e.g. flashing, fading and smooth colour-changing options (Functions dependant on the selected compatible controller). It is also IP65-rated to suit any wet-area application.Each 30m reel is supplied with an easy-to-follow installation guide.A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).Additional accessories are available to purchase (see suggested products below).

Product Feature 1:

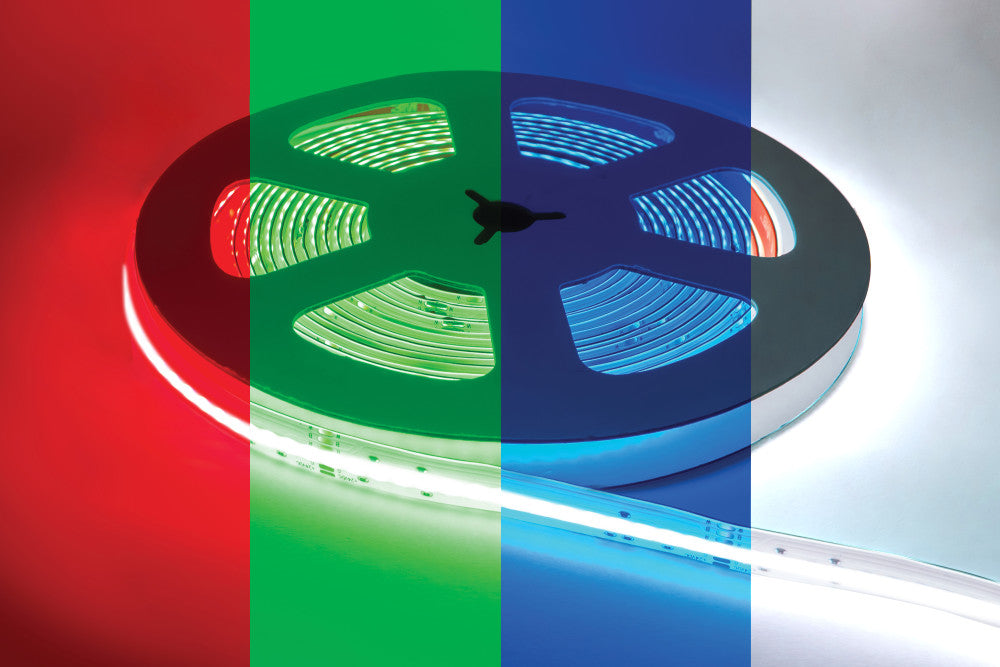

RGB + Cool White (4000K)
Product Feature 2:
15W per metre
Product Feature 3:
1344 LED's per metre
Product Feature 4:
24V DC Constant Voltage
Product Feature 5:
Gold-immersed circuit board and solder contacts
Product Feature 6:
Integrated stainless steel heat sink
Product Feature 7:
30-metre pack
  • Quick Order Code: 204180
  • Barcode: 5055788279907
  • Category: Strips
  • Range Name: High Uniformity Pro
  • Product Type: Colour strip
  • Market Segment: Commercial indoor, Residential indoor
  • Features: RGB + White, Spotless
  • Warranty (Years): 5
  • Strip Cut Points: 83.3
  • Product Width (mm): 12
  • Material: PCB
  • Construction: LED integrated into strip PCB
  • Max Run Length (m): 5
  • Placement / Application: Decorative indoor
  • Strip length (M): 30
  • Strip Width (mm): 12
  • Length (m): 30
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: RGB+W
  • Beam Angle: 140
  • Colour Rendering Index (CRI): 90
  • Colour Type: RGBW
  • LEDs per meter: 1344
  • Lifetime (hours): 36000
  • Power Consumption per meter (W/m): 15
  • Voltage (V): 24
  • Voltage Range (v): 24
  • Watts per metre: 10.1w - 20w
  • Dimming: Dimmable
  • Driver Included: No
  • Electric Current: DC
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 50
