Integral LED

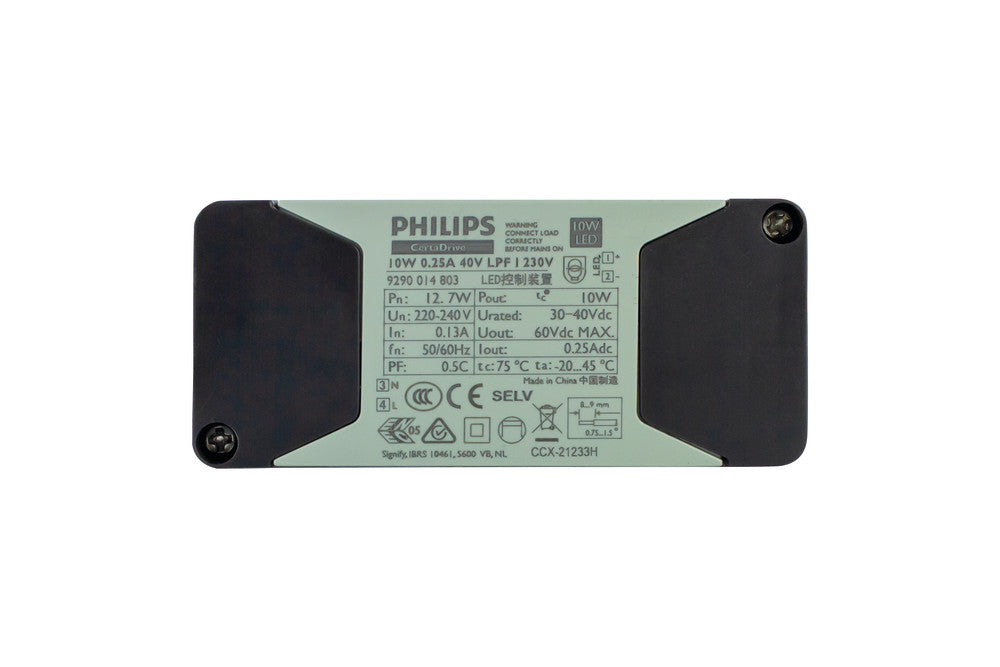

CONSTANT CURRENT DRIVER 10.5W 250MA IP20 NON-DIMMABLE 32-42V OUTPUT INTEGRAL - ILDRCCA072A

CONSTANT CURRENT DRIVER 10.5W 250MA IP20 NON-DIMMABLE 32-42V OUTPUT INTEGRAL - ILDRCCA072A

£8.09 exc. VAT
exc. VAT
exc. VAT
 £8.09

£9.71 inc. VAT
Sale Sold out
Shipping calculated at checkout.

10.5W TRIAC dimmable constant current LED driver.Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output: 10.5W
Product Feature 3:
250mA
Product Feature 4:
Constant current
Product Feature 5:
Class II
  • Quick Order Code: 931963
  • Barcode: 5055788268451
  • Category: Drivers
  • Range Name: TRIAC
  • Product Type: Constant Current
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 3
  • Product Length (mm): 100
  • Product Depth (mm): 20
  • Product Width (mm): 40
  • Product Weight (g): 42
  • Placement / Application: Indoor, General Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 10.5
  • Power Factor: 0.55
  • Voltage (V): 32-42
  • Voltage Range (v): 220-240
  • Input Current (A): 0.125
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): 250
  • Dimming: Non-Dimmable
  • Electric Current: AC
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 85
