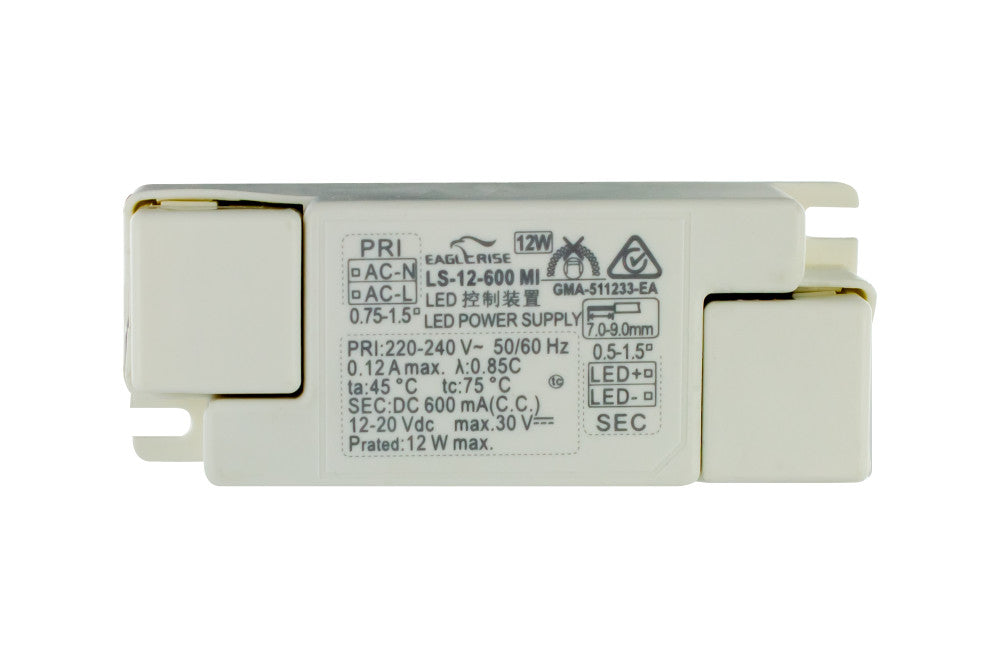

CONSTANT CURRENT DRIVER MAX. 12W 600MA IP20 NON-DIMMABLE 12-20V OUTPUT INTEGRAL. - ILDRCCA081

CONSTANT CURRENT DRIVER MAX. 12W 600MA IP20 NON-DIMMABLE 12-20V OUTPUT INTEGRAL. - ILDRCCA081

£6.50 exc. VAT
exc. VAT
exc. VAT
 £6.50

£7.80 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output: 12W max.
Product Feature 3:
600mA
Product Feature 4:
Constant current
Product Feature 5:
Class II
Product Feature 6:
Output Voltage: 12-20VDC
  • Quick Order Code: 145863
  • Barcode: 5055788283416
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Current
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 5
  • Product Length (mm): 100
  • Product Depth (mm): 25
  • Product Width (mm): 36
  • Product Weight (g): 52
  • Material: Plastic Shell
  • Placement / Application: Indoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power (W): 12
  • Power Consumption (W): 12
  • Power Factor: 0.85
  • Voltage (V): 12-20
  • Voltage Range (v): 220-240
  • Input Current (A): 0.05
  • Input Voltage (V): 220-240
  • Output Current (mA): 600
  • Output Voltage (V): 12-20
  • Dimming: Non-Dimmable
  • Electric Current: AC
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN55015; EN61000-3-2 Class C; EN61000-3-3;EN 61547; EN 61000-4-2; EN 61000-4-5 EN 61347-1; EN61347-2-13; EN62384
  • LVD Certified: Yes
  • EN: EN55015; EN61000-3-2 Class C; EN61000-3-3;EN 61547; EN 61000-4-2; EN 61000-4-5 EN 61347-1; EN61347-2-13; EN62384
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
