Integral LED

CONSTANT VOLTAGE DRIVER 240W 48VDC IP67 3 in 1 DIMMING 1-10V 10V PWM SIGNAL AND RESISTANCE 90-305V INPUT 20W MIN LOAD - HLG-240H-48B

CONSTANT VOLTAGE DRIVER 240W 48VDC IP67 3 in 1 DIMMING 1-10V 10V PWM SIGNAL AND RESISTANCE 90-305V INPUT 20W MIN LOAD - HLG-240H-48B

£117.09 exc. VAT
exc. VAT
exc. VAT
 £117.09

£140.51 inc. VAT
Sale Sold out
Shipping calculated at checkout.
 More payment options

Pickup available at Ecclesall Lighting and Electrical Supplies

Usually ready in 2-4 days

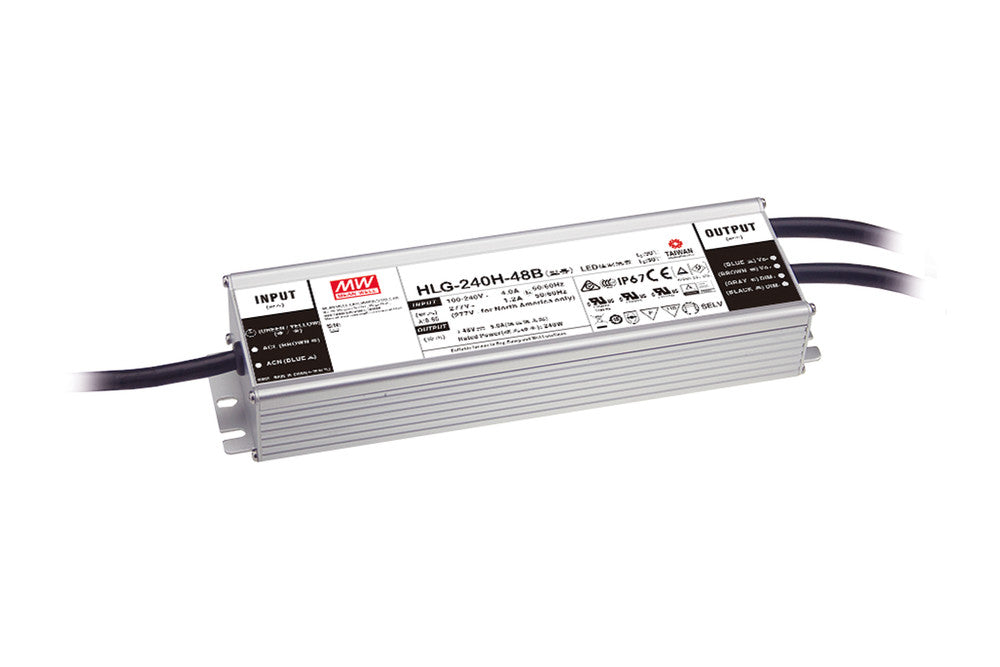

This dimmable 240W constant voltage LED driver operates 90-305VAC input range. The LED driver provides 48V constant voltage for applications such as 48V LED strip lighting.

Product Feature 1:
Input Voltage: 90-305VAC
Product Feature 2:
Output Power: 240W
Product Feature 3:
Output: 48VDC Constant Voltage
Product Feature 4:
Built-in 3 in 1 dimming function: 1-10VDC / PWM signal / resistance
Product Feature 5:
Short Circuit / Over Load / Over Heat Protection
  • Quick Order Code: 468758
  • Barcode: 5055788257875
  • Category: Drivers
  • Range Name: 1-10VDC / PWM signal / resistance
  • Product Type: Constant Voltage
  • Market Segment: Commercial indoor
  • Warranty (Years): 5
  • Product Length (mm): 244.2
  • Product Depth (mm): 38.8
  • Product Width (mm): 68
  • Product Weight (g): 1000
  • Placement / Application: Indoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 240
  • Power Factor: 0.95
  • Voltage (V): 48
  • Voltage Range (v): 90-305
  • Input Current (A): 2
  • Input Voltage (V): 90-305VAC
  • Output Current (mA): 5000
  • Dimming: 1-10VDC / PWM signal / resistance
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): 67
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 50
