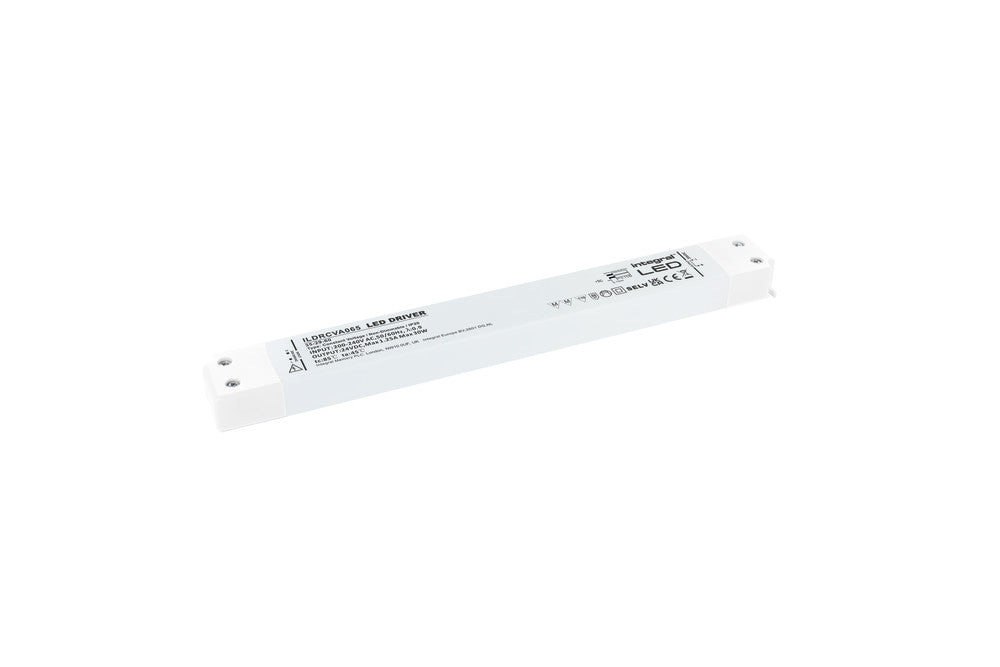

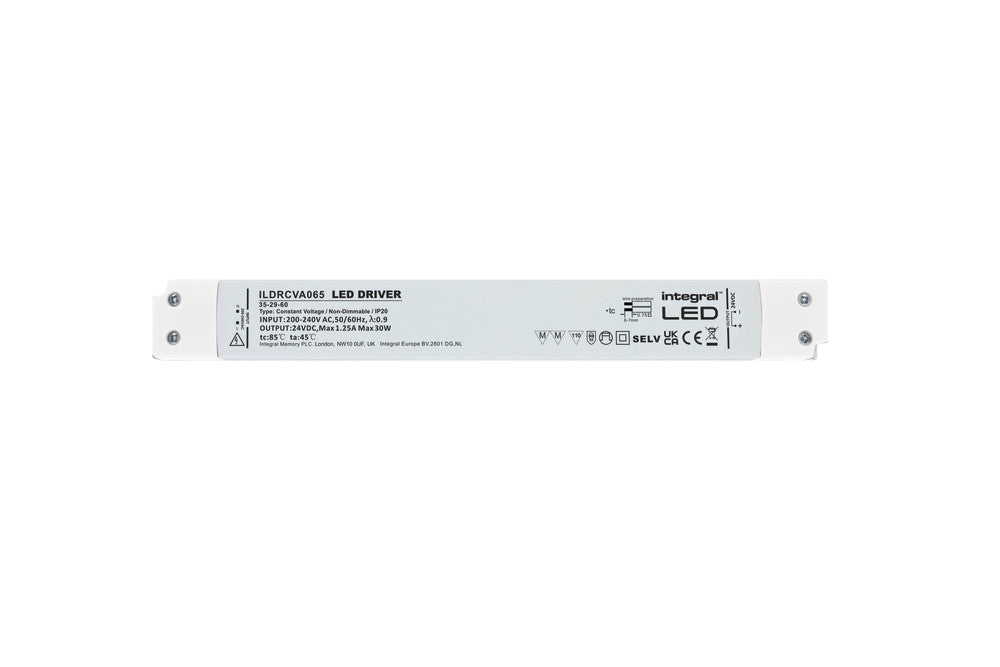

CONSTANT VOLTAGE LONG & SLIM DRIVER 30W 24VDC IP20 NON-DIMM 180-264V INPUT - ILDRCVA065

CONSTANT VOLTAGE LONG & SLIM DRIVER 30W 24VDC IP20 NON-DIMM 180-264V INPUT - ILDRCVA065

£15.08 exc. VAT
exc. VAT
exc. VAT
 £15.08

£18.10 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral 30W constant voltage Long & Slim LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and up to 1.25A of output current for a 30W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 82% and are fully compatible with 24V constant voltage LED lighting systems. The LED driver features an ultra slim, IP20 rated casing that helps to provide an easy installation and smart finish, ideal for indoor use.

Product Feature 1:
Input Voltage: 200-240VAC
Product Feature 2:
Output Power: 30W
Product Feature 3:
Output: 24VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
  • Quick Order Code: 352960
  • Barcode: 5055788254812
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Market Segment: Commercial indoor, Residential indoor, Commercial outdoor (with appropriate outdoor fitting), Residential outdoor (with appropriate outdoor fitting)
  • Warranty (Years): 3
  • Product Length (mm): 251
  • Product Depth (mm): 16
  • Product Width (mm): 30
  • Product Weight (g): 135
  • Material: Plastic Shell
  • Placement / Application: Indoor LED Lighting, Outdoor LED Light (with appropriate outdoor fitting)
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 30
  • Power Factor: 0.9
  • Voltage (V): 24
  • Voltage Range (v): 200-240
  • Input Current (A): 0.22
  • Input Voltage (V): 200-240
  • Output Current (mA): 1250
  • Dimming: Non-Dimmable
  • Electric Current: AC
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61000-3-2, EN55015, EN61547
  • LVD Certified: Yes
  • EN: EN61000-3-2, EN55015, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
