Integral LED

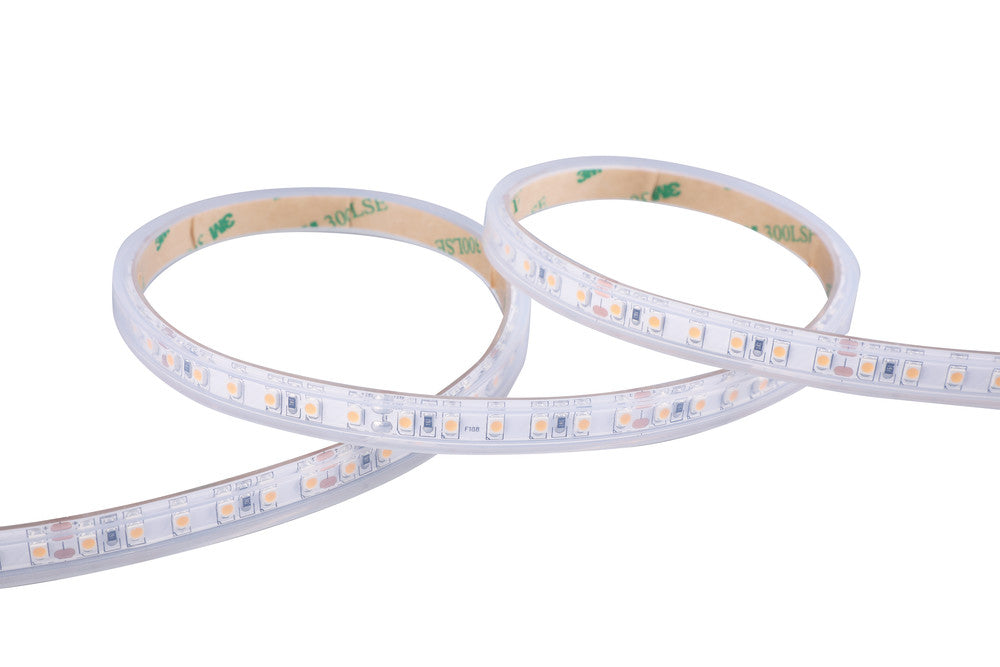

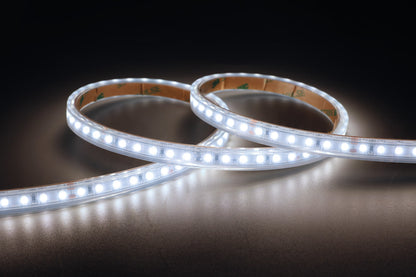

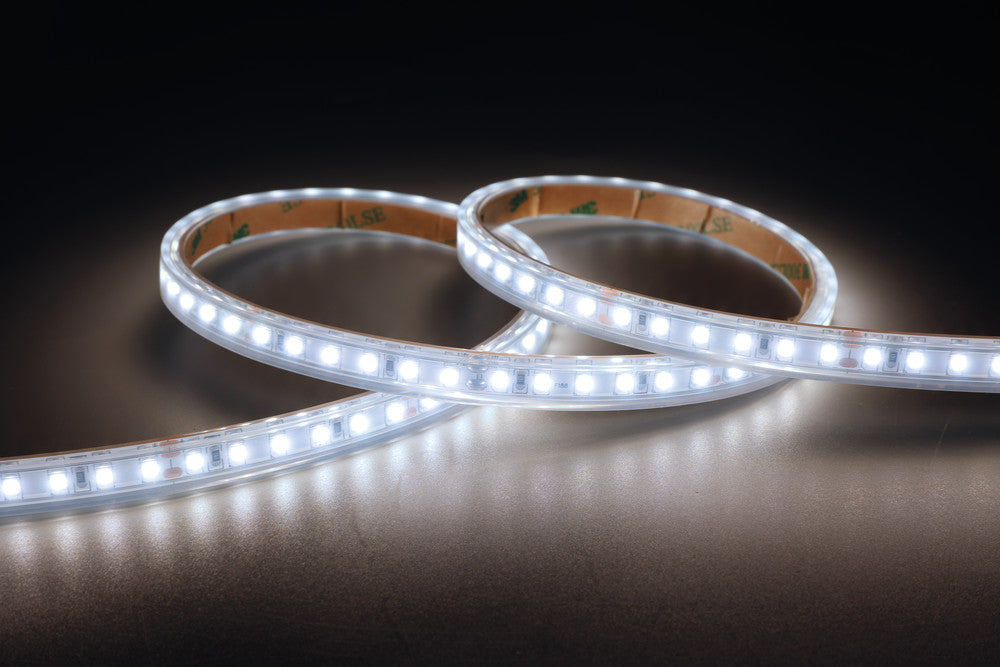

ULTRA LONG STRIP IP67 20M 4000K 24V 11W/M 960LM/M 120LED/M 12MM WIDTH 120 BEAM BOX PACK - ILSTWHIC152E

ULTRA LONG STRIP IP67 20M 4000K 24V 11W/M 960LM/M 120LED/M 12MM WIDTH 120 BEAM BOX PACK - ILSTWHIC152E

£165.55 exc. VAT
exc. VAT
exc. VAT
 £165.55

£198.66 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED produces high-quality Ultra-Long LED Strips for designs where strips of extensive length are required. They are manufactured to minimise the effects of voltage drop, give a consistent light across the strip, and reduce the number of wires and connections needed compared to shorter strips. An ideal solution for substantial hospitality, retail, domestic and commercial projects.

Product Feature 1:
For extensive LED strip projects - indoor or outdoor
Product Feature 2:
Cool White
Product Feature 3:
24V DC Constant Voltage
Product Feature 4:
11W per metre
Product Feature 5:
The entire length of the LED strip can be powered with one compatible LED Driver
  • Quick Order Code: 275361
  • Barcode: 5055788256519
  • Category: Strips
  • Range Name: Ultra Long strip
  • Product Type: White strip
  • Market Segment: Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor
  • Features: Ultra Long
  • Warranty (Years): 5
  • Product Weight (g): 1770
  • Material: PCB
  • Construction: LED surface mounted on to strip
  • Strip Cut Points (mm): 41.67
  • Max Run Length (m): 20
  • Placement / Application: Decorative indoor, outdoor
  • Strip length (M): 20
  • Strip Width (mm): 12
  • Energy Efficiency Label (Image): ILSTWHIC152E_EU_label
  • Lumens per meter (lm/m): 960
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Colour Type: White
  • LED Size (mm): 2835
  • LEDs per meter: 120
  • Lifetime (hours): 50000
  • Power Consumption per meter (W/m): 11
  • Voltage (V): 24
  • Watts per metre: 10.1w - 20w
  • Dimming: Dimmable with dimmable drivers and compatible dimmers
  • Driver Included: No
  • Electric Current: DC
  • EN: EN-62031
  • LVD Certified: Yes
  • EN: EN-62031
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: G
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP67
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
View full details
