Integral LED

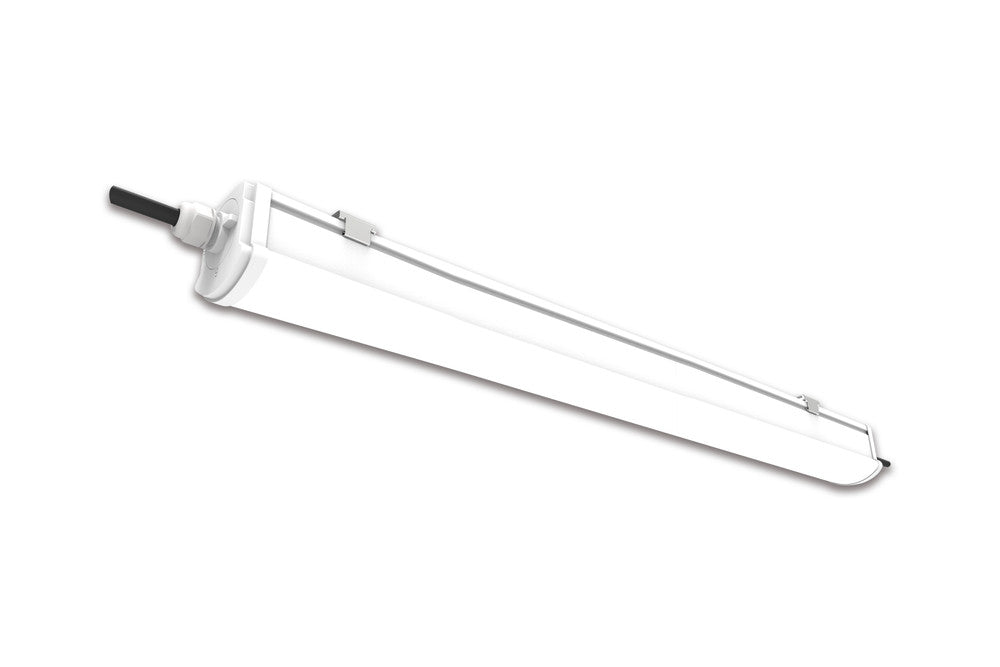

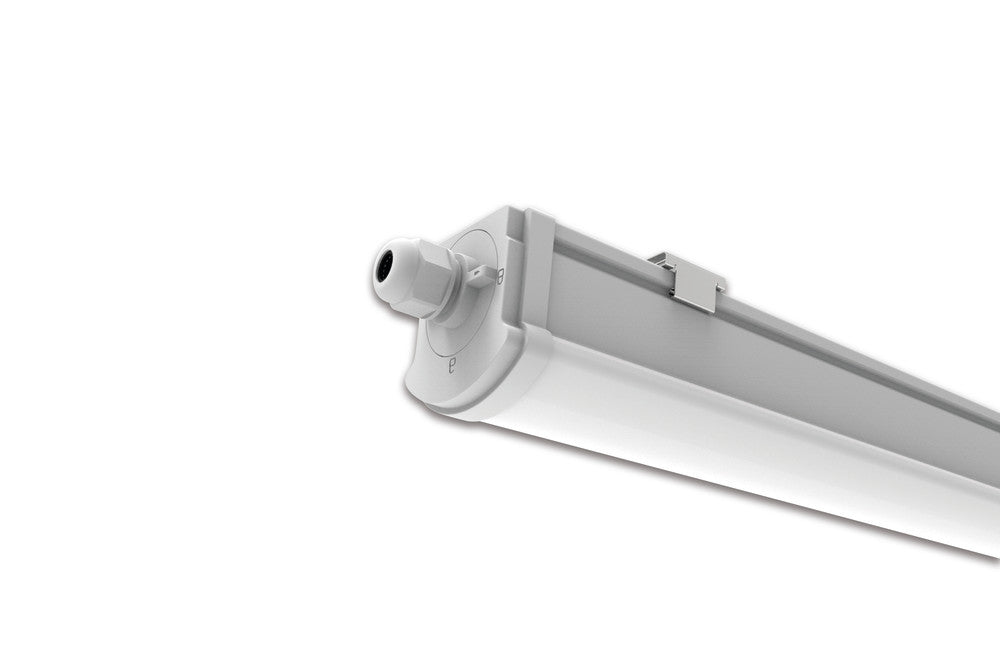

4FT TOUGHSHELL+ MW IP66 IK10 20W 3000LM 4000K 120 BEAM ANGLE 150LM/W NON-DIMM-LINKABLE RAPID CONNECT EASY-FIT - ILBTX007

4FT TOUGHSHELL+ MW IP66 IK10 20W 3000LM 4000K 120 BEAM ANGLE 150LM/W NON-DIMM-LINKABLE RAPID CONNECT EASY-FIT - ILBTX007

£36.69 exc. VAT
exc. VAT
exc. VAT
 £36.69

£44.03 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Toughshell+ batten features a rugged IK10 and IP66 dust and waterproof polycarbonate construction. The opal diffuser provides even light distribution, ideal for demanding environments such as warehouses, factories, car parks and more.

Product Feature 1:
3000lm
Product Feature 2:
40000hrs
Product Feature 3:
150lm/W
Product Feature 4:

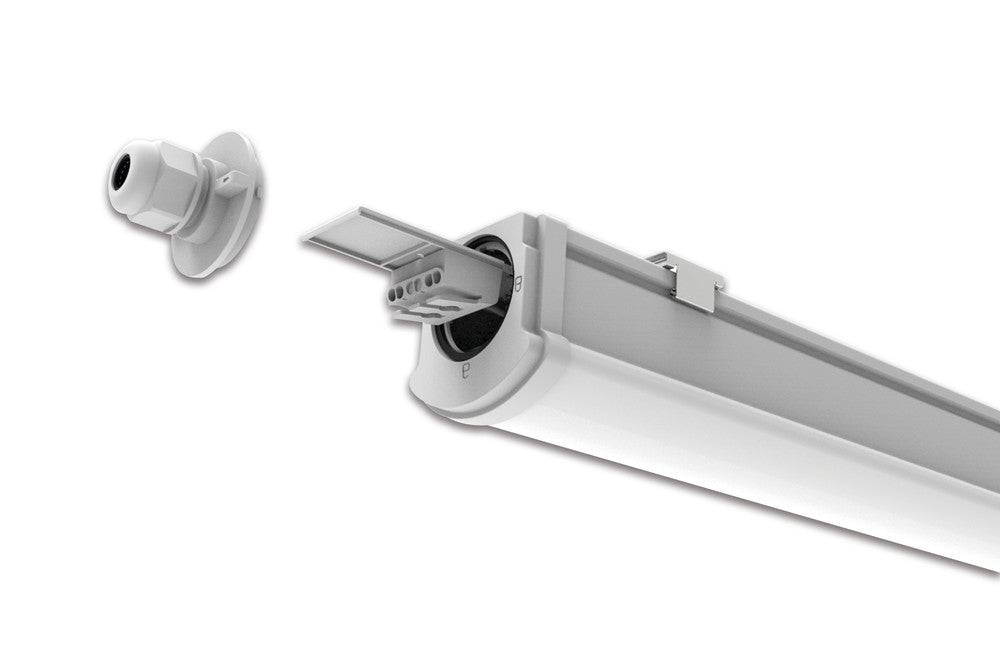

Rapid connect
Product Feature 5:
Microwave sensor
Product Feature 6:
IP66
Product Feature 7:
IK10
  • Quick Order Code: 407950
  • Barcode: 5055788256939
  • Category: Luminaires
  • Range Name: Tough-Shell+
  • Type: Single
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor and outdoor, Industrial indoor and outdoor
  • Features: Microwave Sensor
  • Warranty (Years): 5
  • Size (in ft): 4ft
  • Linkable: Yes
  • Product Length (mm): 1258
  • Product Depth (mm): 66.5
  • Product Width (mm): 70.5
  • Product Weight (g): 1100
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Construction: Injection moulding
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Ceiling mounted
  • Placement / Application: Indoor and outdoor, General lighting
  • Energy Efficiency Label (Image): ILBTX007_EU_label
  • Luminous Flux in Lumens (lm): 3000
  • Lumens per meter (lm/m): 150
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 40000
  • Switching Cycles: 25000
  • Power Consumption (W): 20
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: D
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK10
  • IP Rating (Ingress Protection): IP66
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
