Integral LED

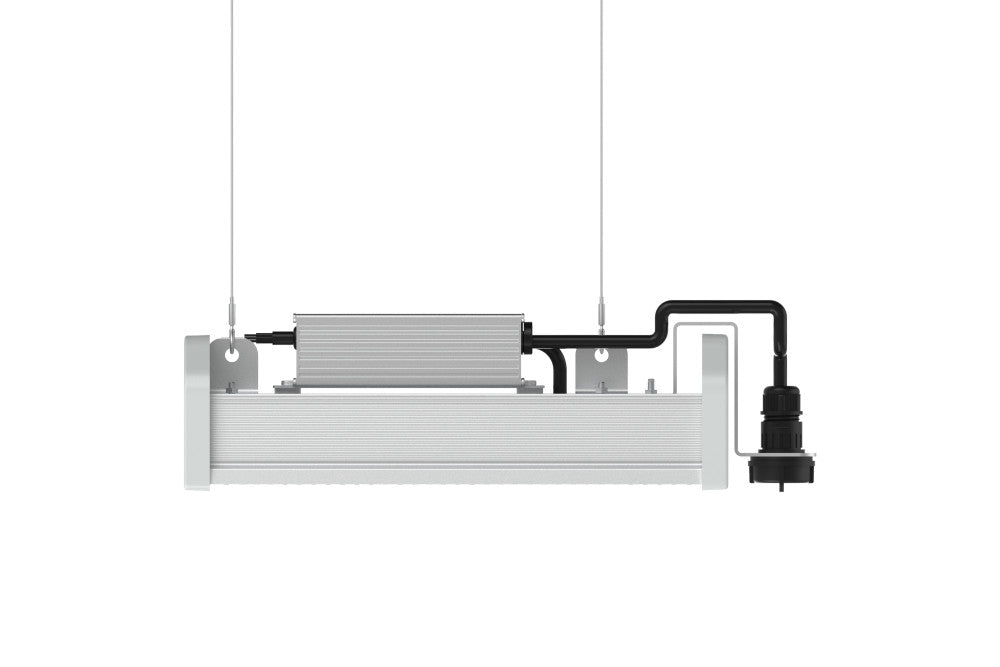

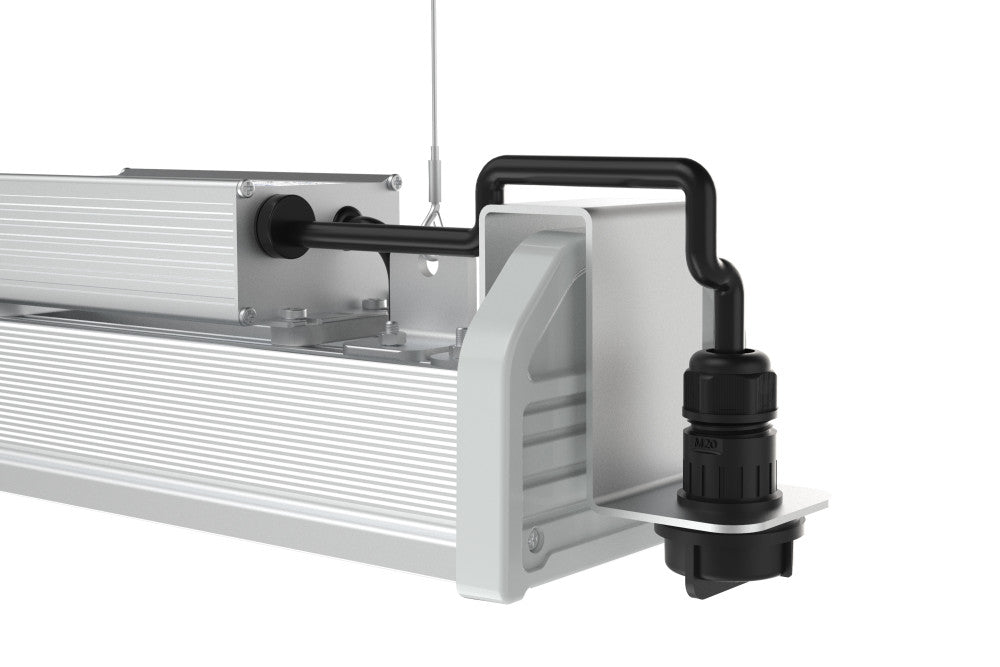

80W 0.3M VECTOR MAX LINEAR HIGH BAY IP44 IK10 14400LM 180LM/W 4000K 90° BEAM ZHAGA 18 PLUG-N-PLAY - ILHBL300

80W 0.3M VECTOR MAX LINEAR HIGH BAY IP44 IK10 14400LM 180LM/W 4000K 90° BEAM ZHAGA 18 PLUG-N-PLAY - ILHBL300

£117.73 exc. VAT
exc. VAT
exc. VAT
 £117.73

£141.28 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral LED Vector Max Linear High Bay is built to last in the most demanding industrial environments. Compact, powerful and efficient, the Vector Max offers a high lumen output for its size at an incredibly efficient 180lm/W. IP44 ingress protection rated and IK10 shock-resistance make this rugged luminaire ideal for warehouses, production facilities, factories and other industrial environments.The 90° beam angle makes this light perfect for open areas.The Vector Max features a Zhaga 18 socket for plug and play control and sensor add ons, including Casambi, PIR and microwave. Surface mounting brackets sold separately. See related products for accessory options.

Product Feature 1:
14400lm
Product Feature 2:
Zhaga 18 plug n play
Product Feature 3:
4000K
Product Feature 4:
180lm/W
Product Feature 5:
Class I
Product Feature 6:
5 Year Warranty
Product Feature 7:
IP44
Product Feature 8:
IK10
  • Barcode: 5055788284734
  • Category: Luminaires
  • Range Name: Vector Max
  • Type: Linear
  • Product Type: Linear High Bay
  • Product Body Finish: Silver
  • Market Segment: Commercial indoor, Industrial indoor
  • Finish: Silver
  • Features: 180lm/W
  • Warranty (Years): 5
  • Emergency Option: No
  • Size (in ft): 1ft
  • Product Length (mm): 317
  • Product Depth (mm): 96
  • Product Width (mm): 112
  • Product Weight (g): 2100
  • Optic: Polycarbonate diffuser
  • Material: Aluminium
  • Construction: Aluminium
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Suspended / ceiling mounted / wall mounted
  • Placement / Application: Indoor, General Lighting
  • Typical Mounting Height: 5M
  • Luminous Flux in Lumens (lm): 14400
  • Luminous efficacy (lm/W): 180
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: 90
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 47/63 Hz
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 100000
  • Power Factor: 0.95
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Protection Function: Short Circuit, overload and overheating protection on driver
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK10
  • IP Rating (Ingress Protection): IP44
  • Lowest Operating Temperature (°C): -35
  • Maximum Operating Temperature (°C): 50
