Integral LED

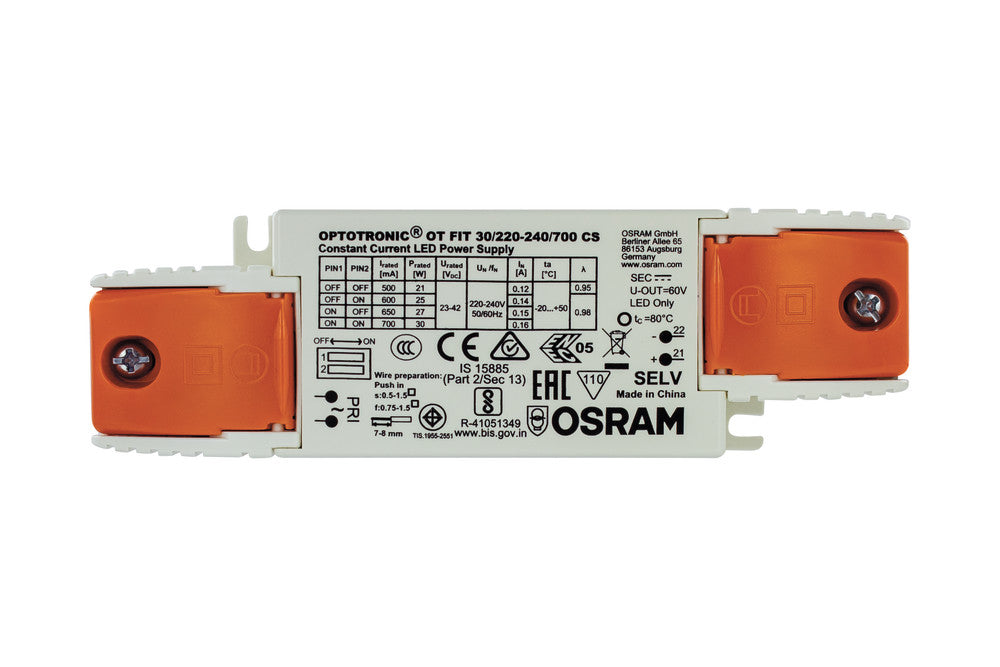

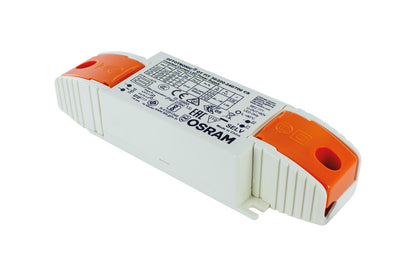

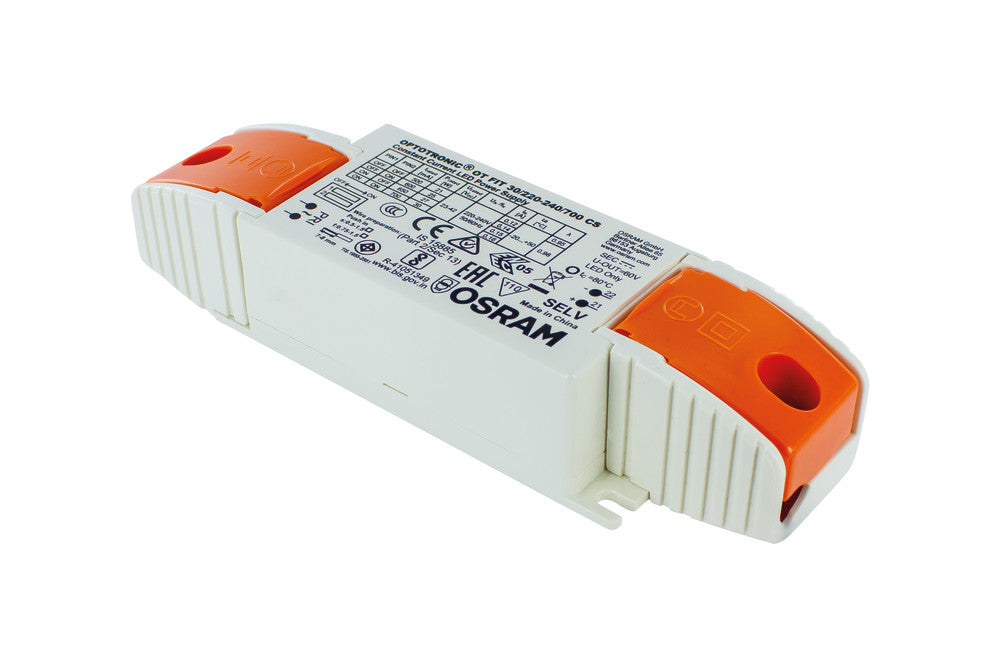

ADJUSTABLE CONSTANT CURRENT DRIVER 21-30W 500-700MA IP20 NON-DIM 23-42V OUTPUT INTEGRAL - ILDRCCA076A

ADJUSTABLE CONSTANT CURRENT DRIVER 21-30W 500-700MA IP20 NON-DIM 23-42V OUTPUT INTEGRAL - ILDRCCA076A

£17.83 exc. VAT
exc. VAT
exc. VAT
 £17.83

£21.40 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range 21-30W
Product Feature 3:
Adjustable output current range 500-700mA
Product Feature 4:
Output voltage range 23-42V
  • Quick Order Code: 891862
  • Barcode: 5055788269526
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Current
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 3
  • Product Length (mm): 300
  • Product Depth (mm): 50
  • Product Width (mm): 20
  • Product Weight (g): 900
  • Placement / Application: Indoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 30
  • Power Factor: 0.9
  • Voltage (V): 23-42
  • Voltage Range (v): 220-240
  • Input Current (A): 0.135
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): 700
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN60598, EN62081, EN62471, EN60598, EN62780
  • LVD Certified: Yes
  • EN: EN60598, EN62081, EN62471, EN60598, EN62780
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 35
