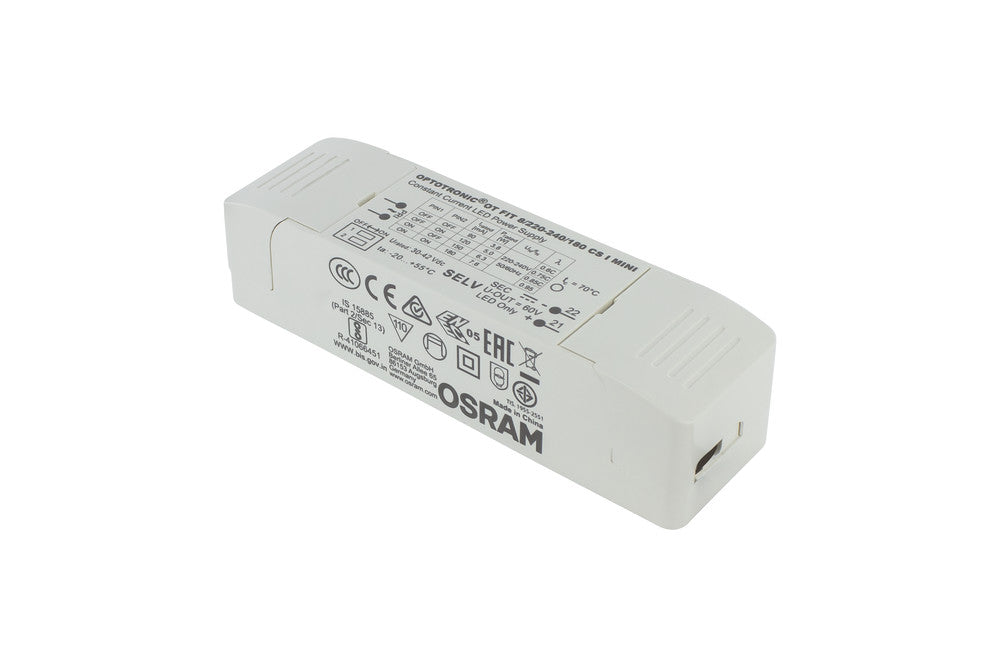

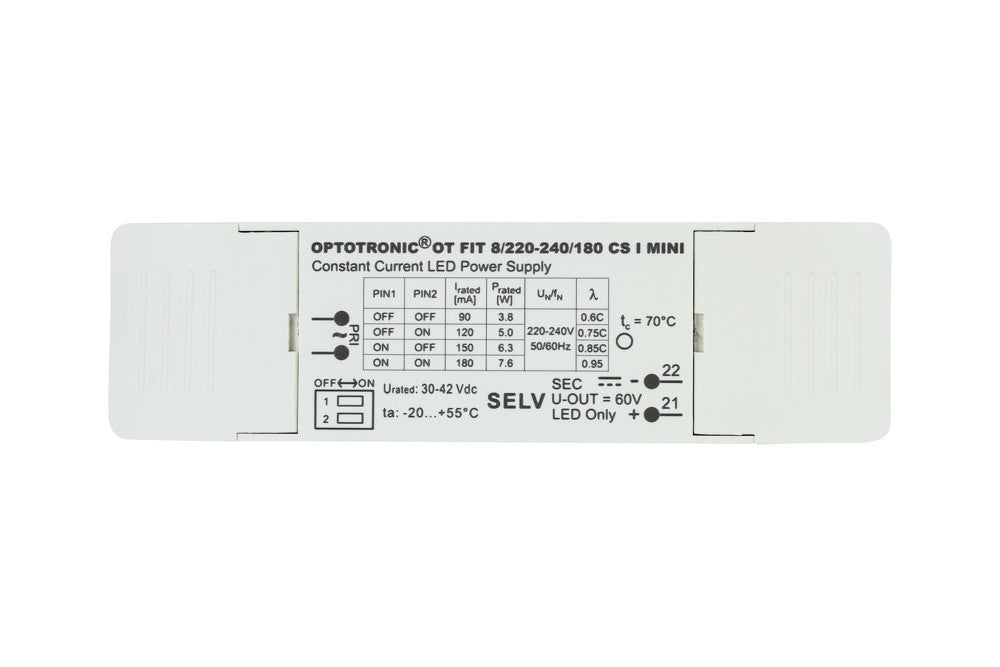

ADJUSTABLE CONSTANT CURRENT DRIVER 3-8W 90-180MA IP20 NON-DIM 30-42V OUTPUT INTEGRAL - ILDRCCA074A

ADJUSTABLE CONSTANT CURRENT DRIVER 3-8W 90-180MA IP20 NON-DIM 30-42V OUTPUT INTEGRAL - ILDRCCA074A

£15.36 exc. VAT
exc. VAT
exc. VAT
 £15.36

£18.43 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range 3-8W
Product Feature 3:
Adjustable output current range 90-180mA
Product Feature 4:
Output voltage range 30-42V
  • Quick Order Code: 831763
  • Barcode: 5055788269502
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Current
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 3
  • Product Length (mm): 200
  • Product Depth (mm): 50
  • Product Width (mm): 20
  • Product Weight (g): 500
  • Placement / Application: Indoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 8
  • Power Factor: 0.9
  • Voltage (V): 30-42
  • Voltage Range (v): 220-240
  • Input Current (A): 0.035
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): 180
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN60598, EN62081, EN62471, EN60598, EN62778
  • LVD Certified: Yes
  • EN: EN60598, EN62081, EN62471, EN60598, EN62778
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 35
