ADJUSTABLE WATTAGE LED PANEL LIGHT 600X600 1472-4960LM 9.5-32W 4000K UGR<19 TPa DIFFUSER BACKLIT NON-DIMM 155LM/W INTEGRAL - ILP6060B043

ADJUSTABLE WATTAGE LED PANEL LIGHT 600X600 1472-4960LM 9.5-32W 4000K UGR<19 TPa DIFFUSER BACKLIT NON-DIMM 155LM/W INTEGRAL - ILP6060B043

£65.23 exc. VAT
exc. VAT
exc. VAT
 £65.23

£78.28 inc. VAT
Sale Sold out
Shipping calculated at checkout.

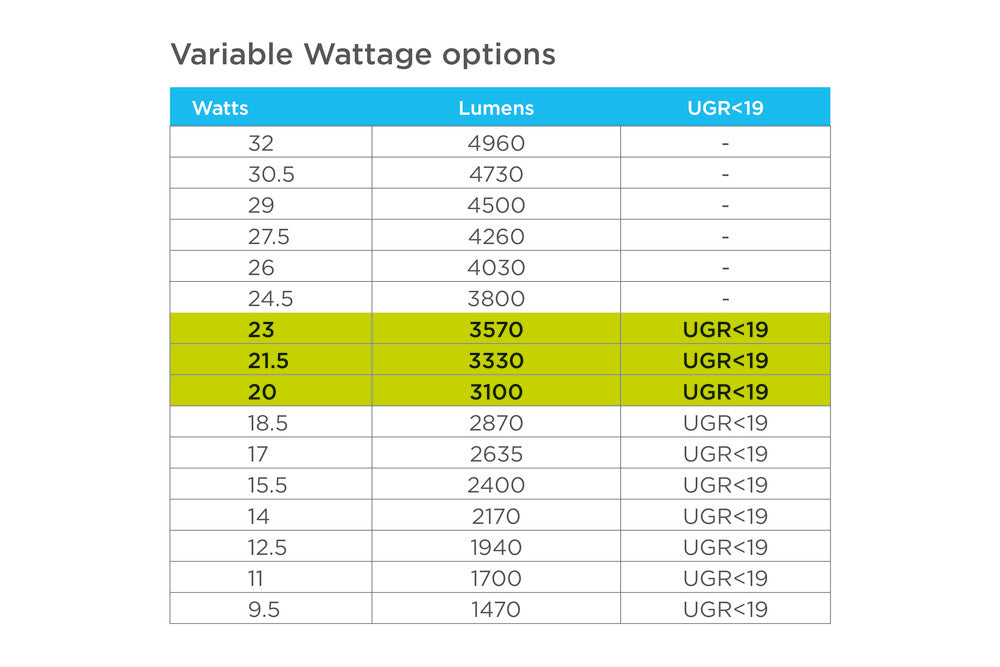

The Wattage of the UGR<19 Variable High Performance+ panel can be adjusted from 9.5 to 32W in 1.5W steps to give a light output range from 1472 to 4960lm in cool white. Its high level of efficacy (155lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.Its lightweight steel and PC design,with integrated non-flicker driver,means installation is simple and maintenance is minimal. With a wide range of lumen outputs It is an ideal solution for many applications: office,meeting rooms,corridors,schools/universities and retail premises.

Product Feature 1:
Cool White
Product Feature 2:
1472-4960 Lumens
Product Feature 3:
155lm/W
Product Feature 4:
TP(a) rated Polycarbonate diffuser
Product Feature 5:
UGR <19
Product Feature 6:
5 Year Warranty
  • Quick Order Code: 974546
  • Barcode: 5055788256649
  • Category: Panels
  • Range Name: High Performance+ Variable Wattage
  • Product Type: 600 x 600
  • Product Body Finish: White
  • Market Segment: Commercial indoor
  • Warranty (Years): 5
  • Emergency Option: Optional Conversion Kit
  • Product Length (mm): 596
  • Product Depth (mm): 63
  • Product Width (mm): 596
  • Product Weight (g): 3500
  • Optic: TP(a) rated Polycarbonate diffuser
  • Material: Steel, Polycarbonate
  • Construction: Folded Mild Steel and Polycarbonate diffuser
  • Luminaire Fixing: Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required)
  • Panel Equivalent: The Luminaire is Class II
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILP6060B043_EU_label
  • Luminous Flux in Lumens (lm): 1472-4960
  • Luminous efficacy (lm/W): 155
  • Peak Intensity (Cd): 1466
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 110
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lighting Method: Back-lit
  • Switching Cycles: 25000
  • Power Consumption (W): 9.5 to 32
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 86.4
  • Dimming: Non-Dimmable
  • Driver Included: Integrated
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: D
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): 20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 40
