Integral LED

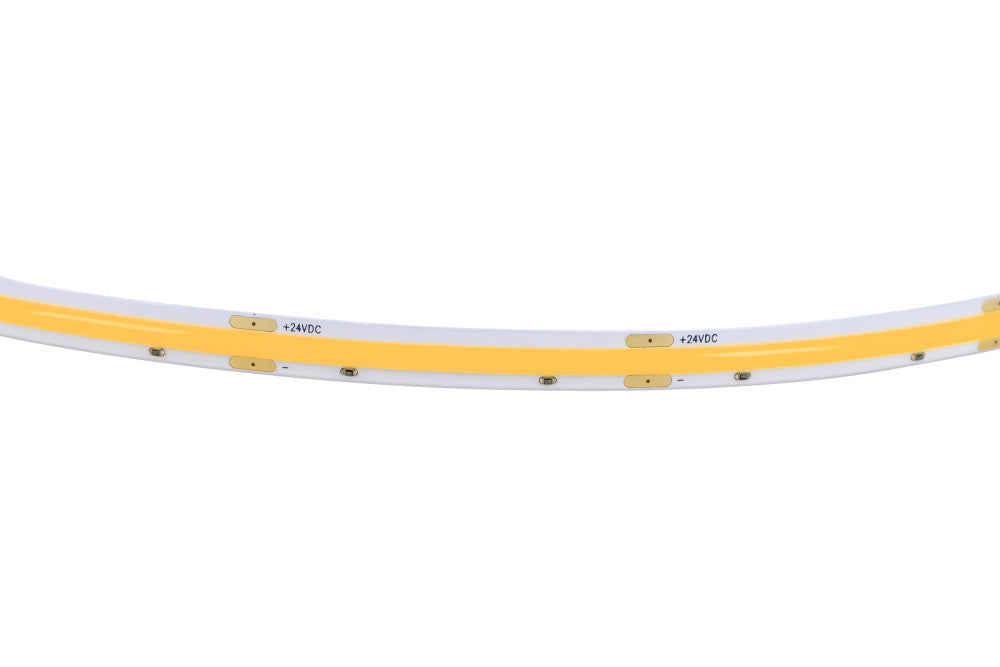

COB HIGH UNIFORMITY PRO STRIP IP20 30M REEL 2700K 24V 10W/M 849LM/M CRI90+ 480LED/M 8MM WIDTH BUILT-IN STEEL LINING - 5M MAX RUN - ILSTWHIA324E

COB HIGH UNIFORMITY PRO STRIP IP20 30M REEL 2700K 24V 10W/M 849LM/M CRI90+ 480LED/M 8MM WIDTH BUILT-IN STEEL LINING - 5M MAX RUN - ILSTWHIA324E

£259.09 exc. VAT
exc. VAT
exc. VAT
 £259.09

£310.91 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This specialist range LED strip utilises ultra-small LEDs arranged in a close formation to effectively eliminate the visible shadow present in many LED strips. This creates the effect of one continuous line of light without the need of installation in a profile with frosted diffuser, whilst the integrated thermal management and gold immersion of the conductive material guarantee outstanding longevity and reliability. The strip is also capable of up to 5 Metres of uniformly lit continuous runs.This High Uniformity Pro strip offers high colour rendering (CRI 90) to bring out the colour in any space, your colours will appear more vibrant and better defined than with a standard LED strip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other retail products at their best.Each 30m reel is supplied with an easy-to-follow installation guide.A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).Additional accessories are available to purchase (see suggested products below).

Product Feature 1:
Warm
Product Feature 2:
10W per metre
Product Feature 3:
480 LED's per metre
Product Feature 4:
24V DC Constant Voltage
Product Feature 5:
Gold-immersed circuit board and solder contacts
Product Feature 6:
Integrated stainless steel heat sink
Product Feature 7:
Truly spotless even when dimmed
Product Feature 8:

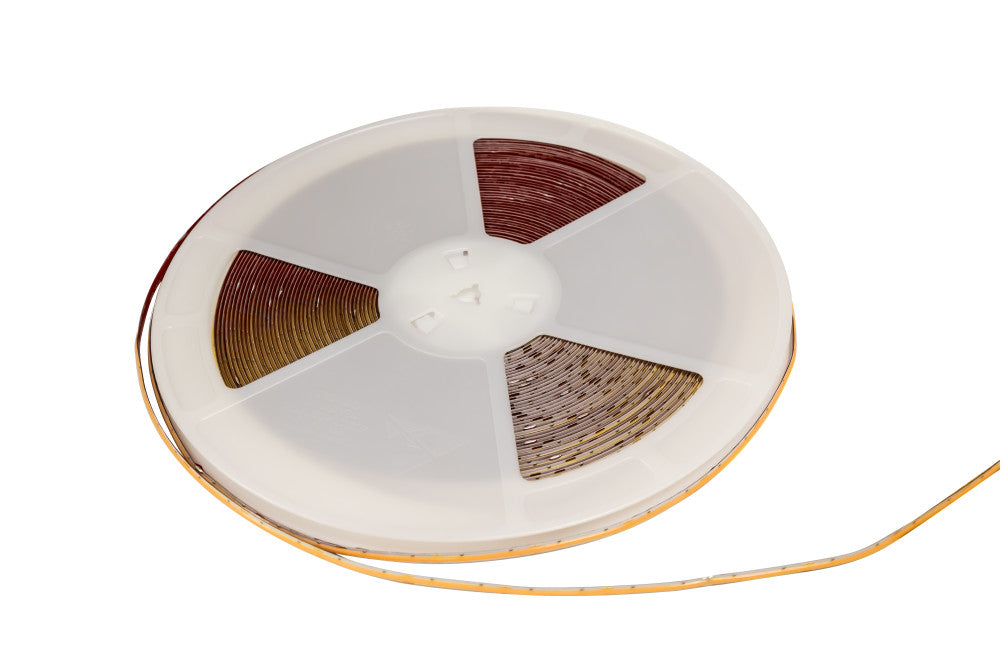

30-metre pack
  • Quick Order Code: 219092
  • Barcode: 5055788279662
  • Category: Strips
  • Range Name: High Uniformity Pro
  • Product Type: White strip
  • Market Segment: Commercial indoor, Residential indoor
  • Features: CRI 90, Spotless
  • Warranty (Years): 5
  • Strip Cut Points: 50
  • Product Width (mm): 8
  • Material: PCB
  • Construction: LED integrated into strip PCB
  • Max Run Length (m): 5
  • Placement / Application: Decorative indoor
  • Strip length (M): 30
  • Strip Width (mm): 8
  • Length (m): 30
  • Luminous efficacy (lm/W): 85
  • Lumens per meter (lm/m): 849
  • Correlated Colour Temperature (CCT) (K): 2700
  • Colour Temperature Name: Warm
  • Beam Angle: 140
  • Colour Rendering Index (CRI): 90
  • Colour Type: White
  • LEDs per meter: 480
  • Lifetime (hours): 36000
  • Power Consumption per meter (W/m): 10
  • Voltage (V): 24
  • Voltage Range (v): 24
  • Watts per metre: 6.1w - 10w
  • Dimming: Dimmable
  • Driver Included: No
  • Electric Current: DC
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 50
