COB HIGH UNIFORMITY PRO STRIP IP20 5M PACK RGB DIGITAL 24V 22W/M 720LED/M 12MM WIDTH BUILT-IN STEEL LINING - ILSTRGBA342E

COB HIGH UNIFORMITY PRO STRIP IP20 5M PACK RGB DIGITAL 24V 22W/M 720LED/M 12MM WIDTH BUILT-IN STEEL LINING - ILSTRGBA342E

Regular price £70.94 exc. VAT
Regular price exc. VAT
exc. VAT
Sale price £70.94

£85.13 inc. VAT
Sale Sold out
Shipping calculated at checkout.

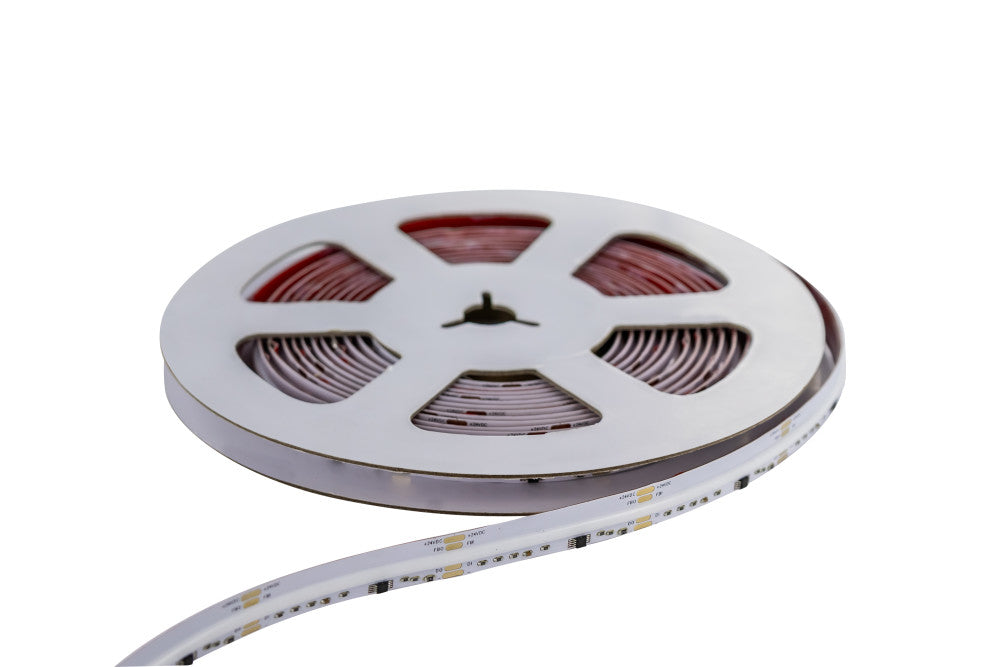

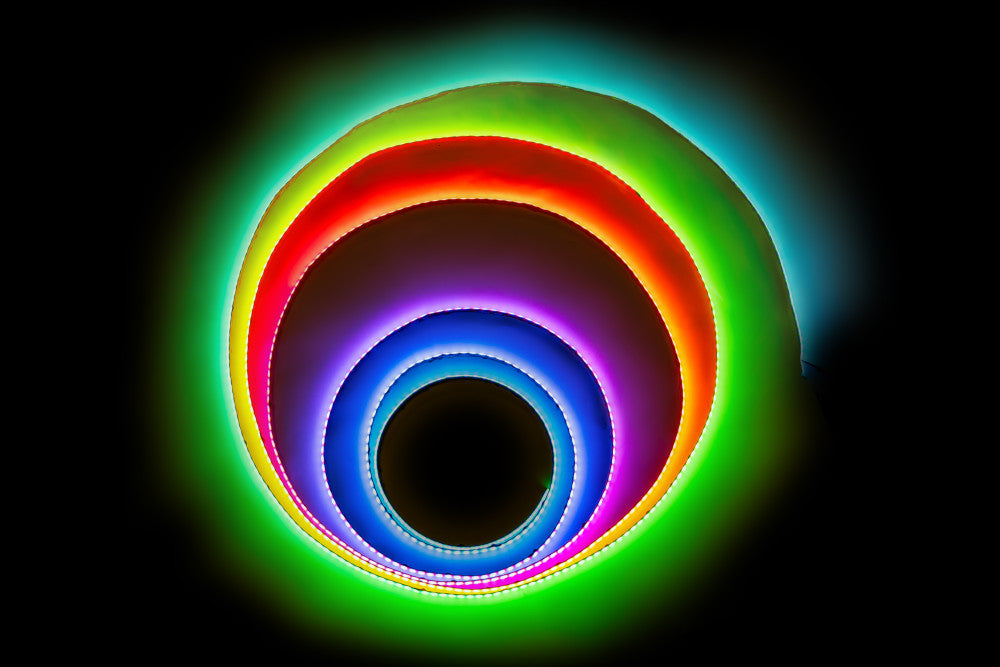

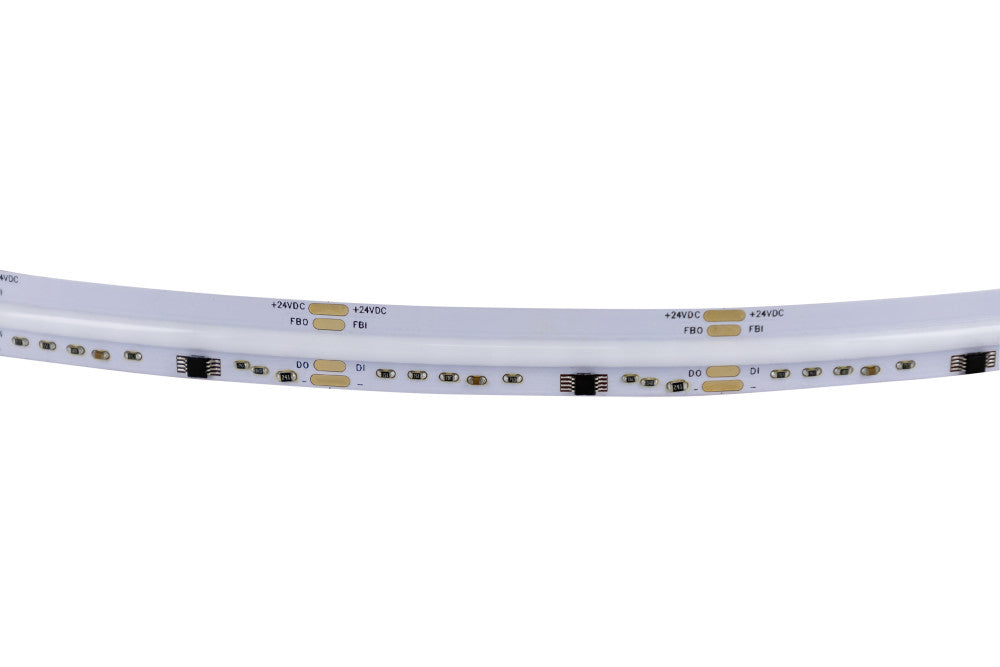

Experience an explosion of colours with our Digital Pixel RGB Strip. Create a colour changing and cascading LED effect in your space with 1 digital IC chip located at every 5cm of the strip by programming this Digital Pixel RGB strip to perform flash effects, single or multicolour chase effect, light curtains and gradual fades. Don't allow technology to limit your creativity, take the next step towards the future of LED strip lighting.This specialist range LED strip utilises ultra-small LEDs arranged in a close formation to effectively eliminate the visible shadow present in many LED strips. This creates the effect of one continuous line of light, especially when installed within an aluminium profile with a frosted diffuser, whilst the integrated thermal management and gold immersion of the conductive material guarantee outstanding longevity and reliability. The strip is also capable of up to 5 Metres of uniformly lit continuous runs.Each 5m reel is supplied with an easy-to-follow installation guide and one extra connector to power the strip if it is cut into two lengths.A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).Additional accessories are available to purchase (see suggested products below).

Product Feature 1:
RGB Digital
Product Feature 2:
22W per metre
Product Feature 3:
720 LED's per metre
Product Feature 4:
24V DC Constant Voltage
Product Feature 5:
Gold-immersed circuit board and solder contacts
Product Feature 6:
Integrated stainless steel heat sink
Product Feature 7:
5-metre pack
  • Quick Order Code: 721036
  • Barcode: 5055788279846
  • Category: Strips
  • Range Name: High Uniformity Pro
  • Product Type: Colour strip
  • Market Segment: Commercial indoor, Residential indoor
  • Features: Digital Pixel RGB, Spotless
  • Warranty (Years): 5
  • Strip Cut Points: 50
  • Product Width (mm): 12
  • Material: PCB
  • Construction: LED integrated into strip PCB
  • Max Run Length (m): 5
  • Placement / Application: Decorative indoor
  • Strip length (M): 5
  • Strip Width (mm): 12
  • Length (m): 5
  • Colour Temperature Name: RGB
  • Beam Angle: 140
  • Colour Type: RGB
  • LEDs per meter: 720
  • Lifetime (hours): 36000
  • Power Consumption per meter (W/m): 22
  • Voltage (V): 24
  • Voltage Range (v): 24
  • Watts per metre: 20.1w - 30w
  • Dimming: Dimmable
  • Driver Included: No
  • Electric Current: DC
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • EN: IEC 60598, IEC 62031
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 50
