Integral LED

COMPACT ECO LED DOWNLIGHT IP44 30 DEG TILTABLE 5.5W 550LM 4000K 100LM/W 38 DEG BEAM DIMMABLE 68MM CUT OUT - ILDL68G005

COMPACT ECO LED DOWNLIGHT IP44 30 DEG TILTABLE 5.5W 550LM 4000K 100LM/W 38 DEG BEAM DIMMABLE 68MM CUT OUT - ILDL68G005

£4.45 exc. VAT
exc. VAT
exc. VAT
 £4.45

£5.34 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Compact Eco is a range of hard wearing, efficient and versatile downlights suitable for many applications including wet areas of buildings in a variety of sectors including shops and residential. Installation is made easy with tool-free loop in-out terminal blocks, and the range comes with a CCT switching and tiltable options, and interchangeable bezels to fit multiple environments. See suggested products section below for accessories.

Product Feature 1:

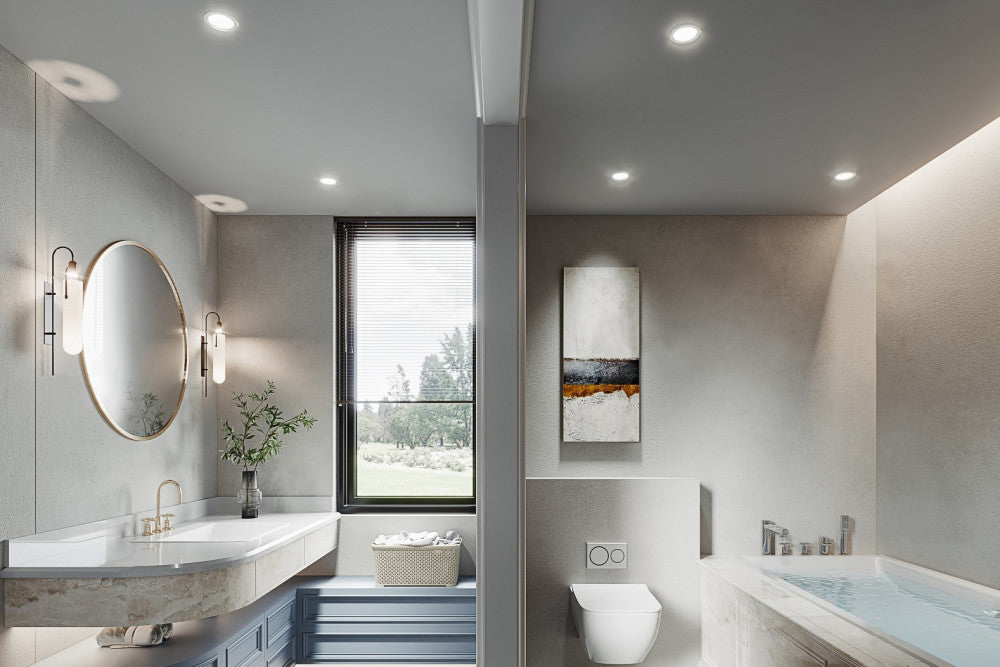

IP44 Suitable for bathrooms
Product Feature 2:
Dimmable as standard
Product Feature 3:

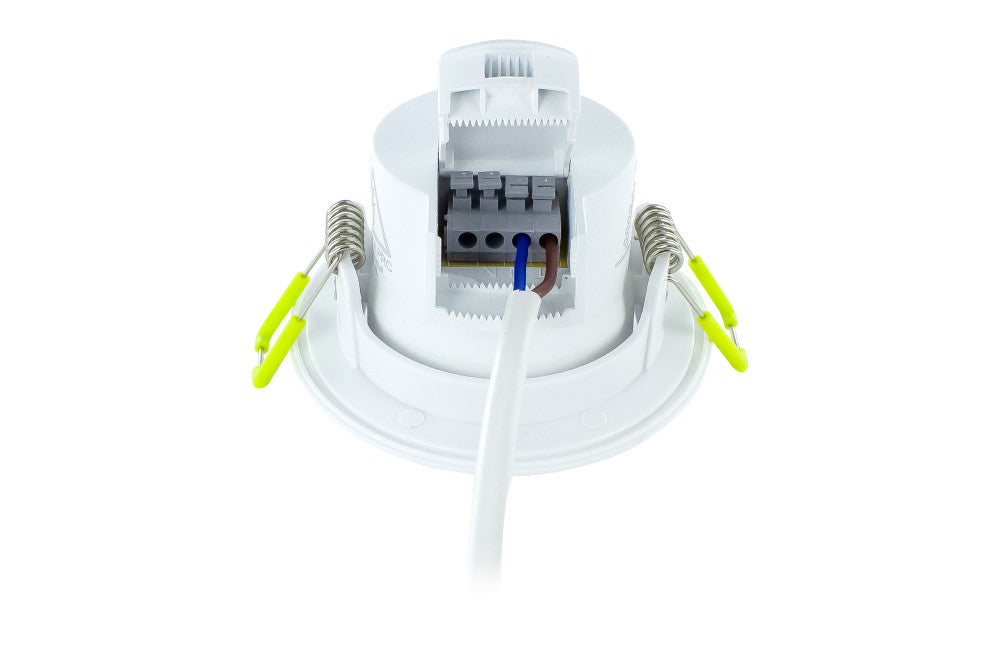

Loop in-out terminals
Product Feature 4:

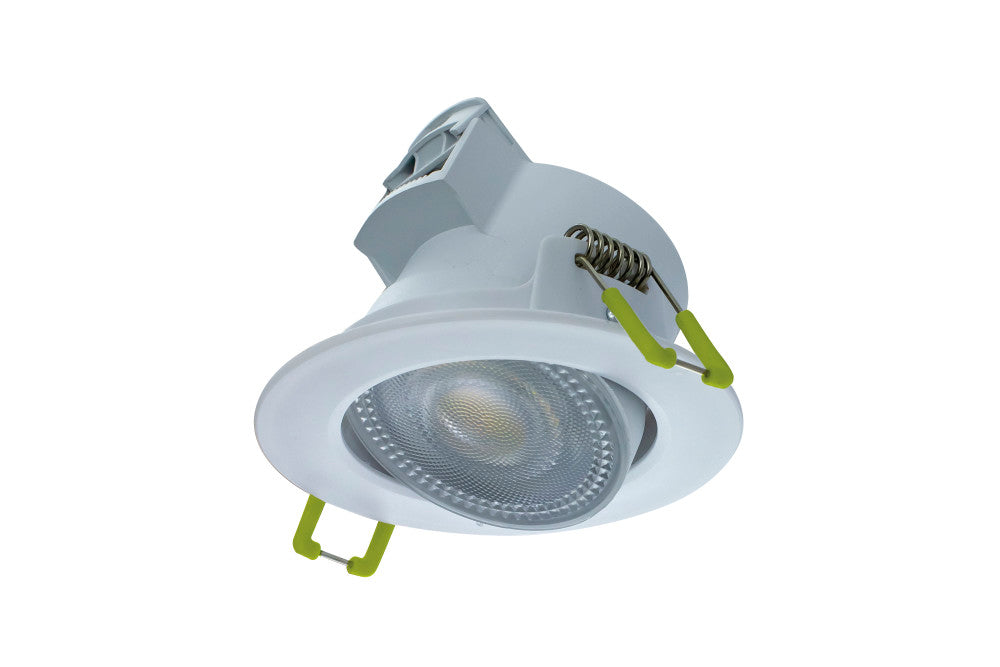

Tiltable 30°
  • Quick Order Code: 320382
  • Barcode: 5055788281931
  • Category: Downlights
  • Range Name: Compact Eco
  • Product Type: LED Downlights
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor, Residential indoor
  • Fixed/Tiltable: Fixed
  • Warranty (Years): 3
  • Emergency Option: No

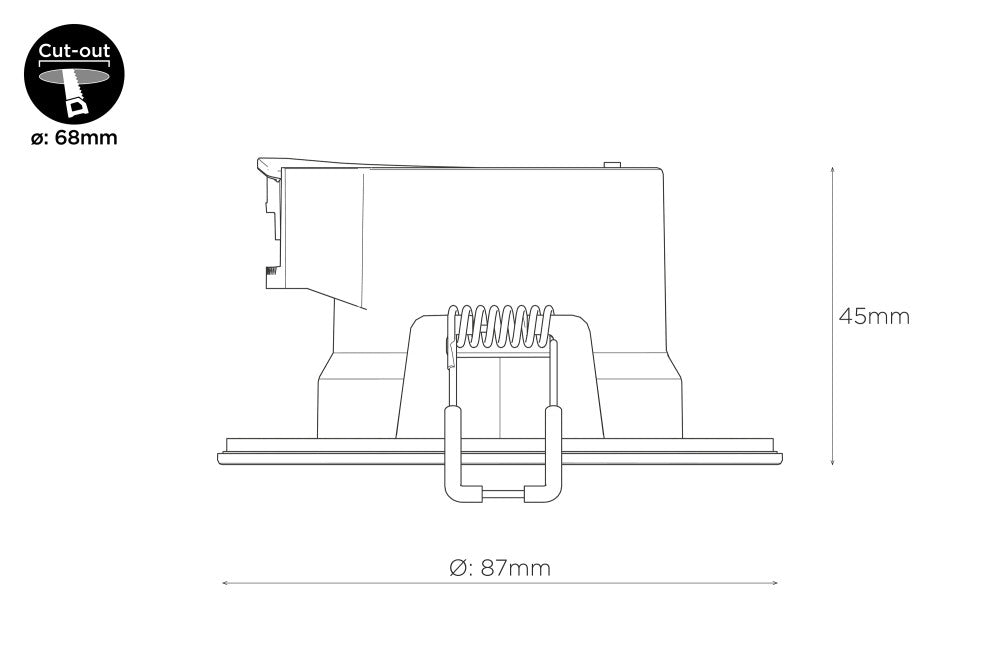

  • Product Depth (mm): 45
  • Product Weight (g): 85
  • Overall diameter (mm): 87
  • Construction: Plastic
  • Cut Out Diameter (mm): 68
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Luminous Flux in Lumens (lm): 550
  • Luminous efficacy (lm/W): 100
  • Colour Temperature: 4000K - Cool White
  • Beam Angle: 38
  • Colour Rendering Index (CRI): 80
  • Compatible Dimmers: Varilight JQP401W
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • Integrated Light Source: Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 25000
  • Switching Cycles: 15000
  • Power Consumption (W): 5.5
  • Power Factor: 0.6
  • Voltage Range (v): 220-240
  • Dimming: Dimmable with compatible dimmers
  • Driver Included: Integrated
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP44
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 40
