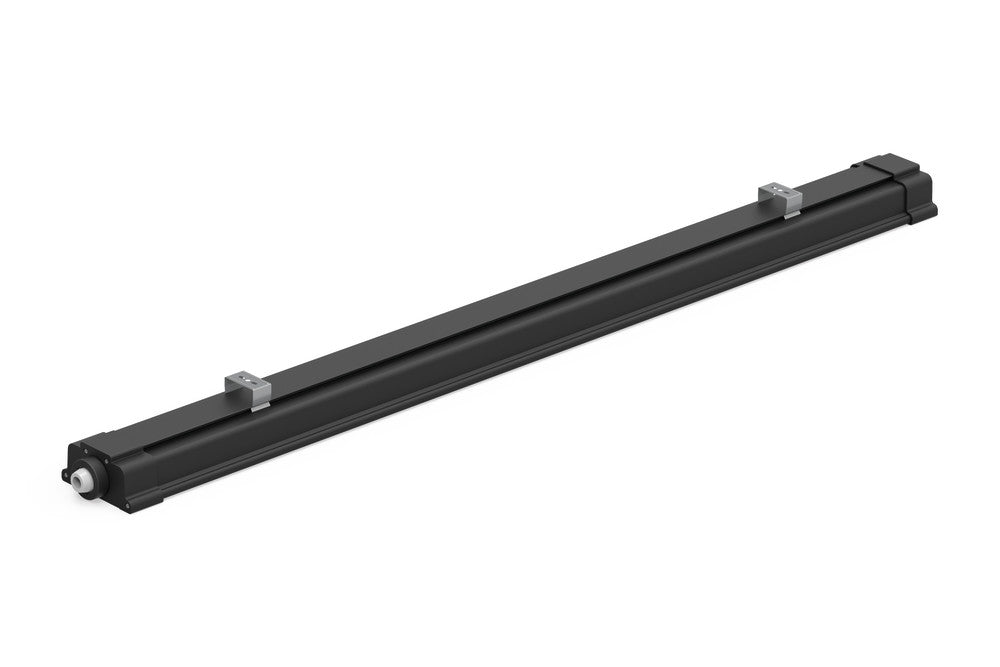

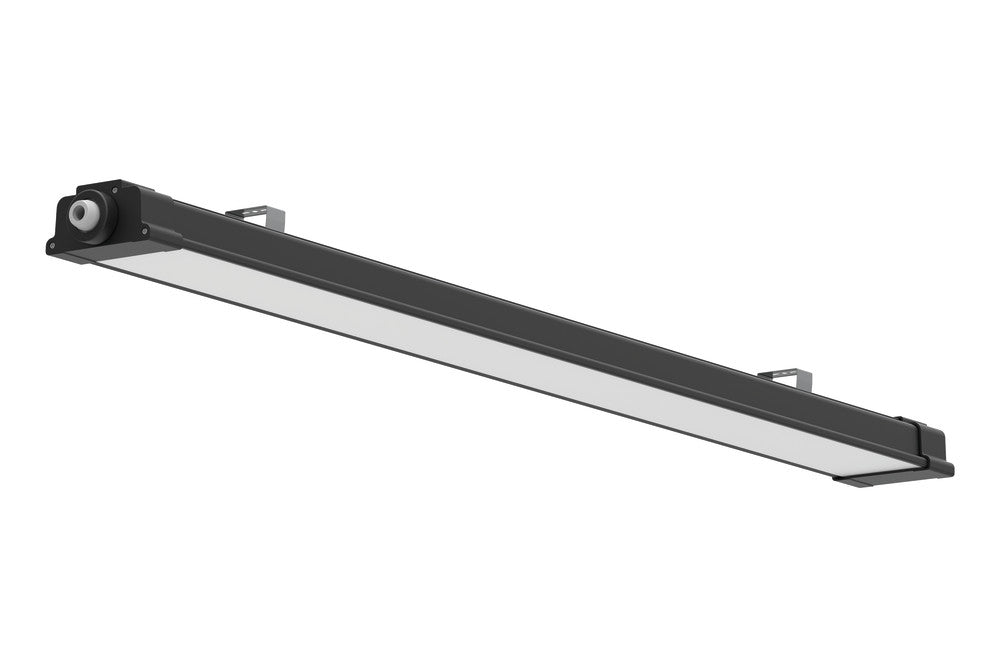

COMPACT ECO LINEAR 120W 18600LM 5000K 155LM/W 120 BEAM NON-DIMM INTEGRAL - ILHBL091

• Quick Order Code: 208742
• Barcode: 5055788261025
• Category: Luminaires
• Range Name: Compact Eco
• Type: Linear
• Market Segment: Commercial indoor, Industrial indoor
• Warranty (Years): 3

• Emergency Option: No
• Product Length (mm): 1220
• Product Weight (g): 4000
• Optic: Polycarbonate
• Material: Aluminium, Polycarbonate
• Construction: Aluminium heat-sink and driver case
• Bulb or Luminaire Shape: Linear
• Luminaire Fixing: Surface or Suspended
• Mounting Type: Surface or Suspended
• Placement / Application: Indoor, Commercial and Industrial

• Energy Efficiency Label (Image): ILHBL091_EU_label
• Luminous Flux in Lumens (lm): 18600
• Luminous efficacy (lm/W): 155
• Correlated Colour Temperature (CCT) (K): 5000
• Colour Temperature Name: Daylight
• Beam Angle: 120
• Colour Rendering Index (CRI): 80
• Frequency Range (Hz): 50/60
• Instant on (Less than 1 second): Yes
• LED Size (mm): 2835
• LED Type: Surface mounted device (SMD)
• Lifetime (hours): 50000
• Switching Cycles: 15000

• Power Consumption (W): 120
• Power Factor: 0.9
• Voltage Range (v): 220-240
• Wattage equivalent (W): 186
• Dimming: Non-Dimmable
• Driver Included: Yes
• Electric Current: AC
• EN: EN-60598, EN61000, EN61547, EN55015, IEC62321
• LVD Certified: Yes

• EN: EN-60598, EN61000, EN61547, EN55015, IEC62321
• LVD Certified: Yes
• CE RoHS: Yes
• New Energy Rating: D
• EU Luminaire: L
• Hg 0% (Mercury Free): Yes
• IK Rating (Impact Protection): IK08
• IP Rating (Ingress Protection): IP65
• Lowest Operating Temperature (°C): -10
• Maximum Operating Temperature (°C): 40
