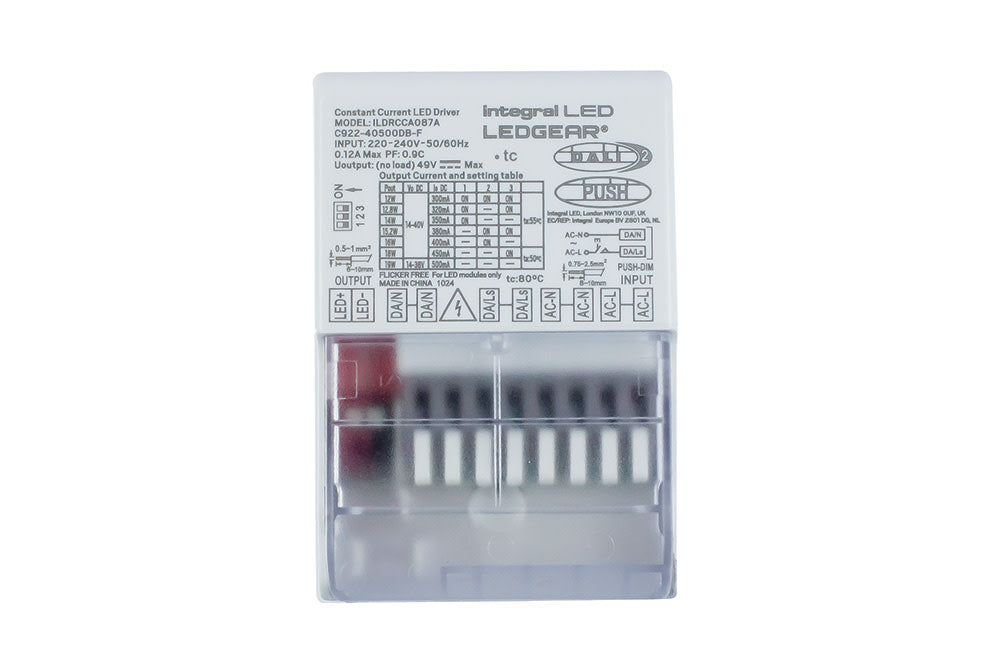

CONSTANT CURRENT COMPACT DRIVER ADJUSTABLE OUTPUT 12-19W 300-500MA IP20 DALI- DALI2 - PUSH-DIMM 14-40V OUTPUT INTEGRAL - ILDRCCA087A

CONSTANT CURRENT COMPACT DRIVER ADJUSTABLE OUTPUT 12-19W 300-500MA IP20 DALI- DALI2 - PUSH-DIMM 14-40V OUTPUT INTEGRAL - ILDRCCA087A

£21.08 exc. VAT
exc. VAT
exc. VAT
 £21.08

£25.30 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range: 12-19W
Product Feature 3:
Adjustable output current range 300-500mA
Product Feature 4:
Output voltage range 14-40V
Product Feature 5:
ENEC
  • Quick Order Code: 967117
  • Barcode: 5055788298229
  • Category: Drivers
  • Range Name: Dali/Dali2/0-10V/Push-Dim
  • Product Type: Costant Current
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Product Length (mm): 87.5
  • Product Depth (mm): 27.5
  • Product Width (mm): 60
  • Product Weight (g): 0.12
  • Material: Polycarbonate
  • Placement / Application: Indoor, LED Lighting
  • Frequency Range (Hz): 50/60
  • Power (W): 12-19
  • Power Consumption (W): 12 to 19W
  • Power Factor: 0.9
  • Voltage (V): 14-40
  • Voltage Range (v): 220-240
  • Input Current (A): Adjustable 14-40V
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): Adjustable
  • Output Voltage (V): 14-40V
  • Dimming: DALI, DALI2, PUSH-DIMM and 0-10V
  • Electric Current: AC
  • Protection Function: Short Circuit protection, Overload protection, Thermal protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
