Integral LED

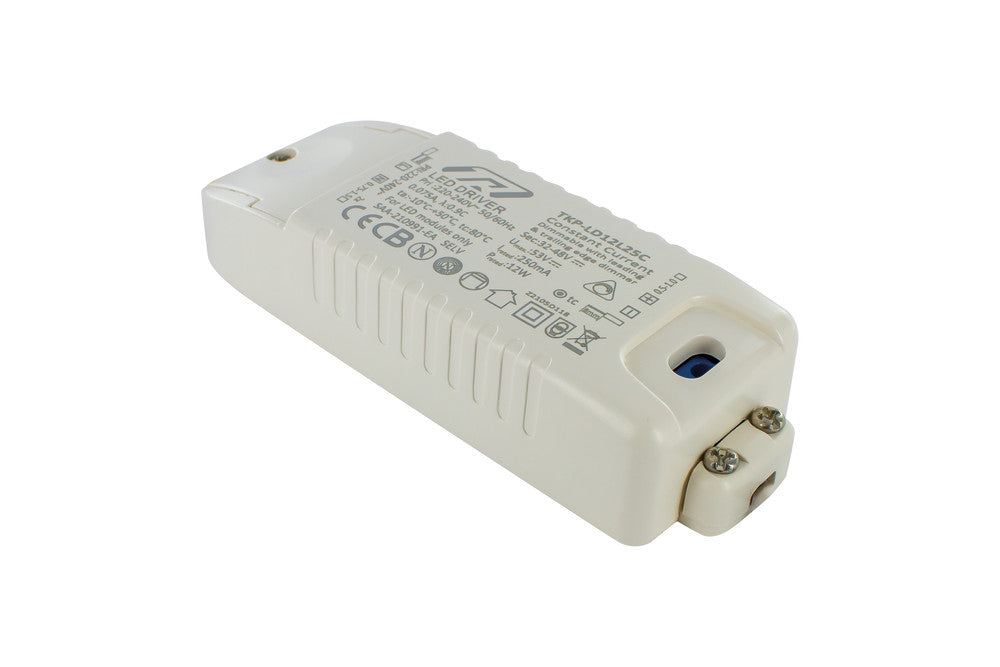

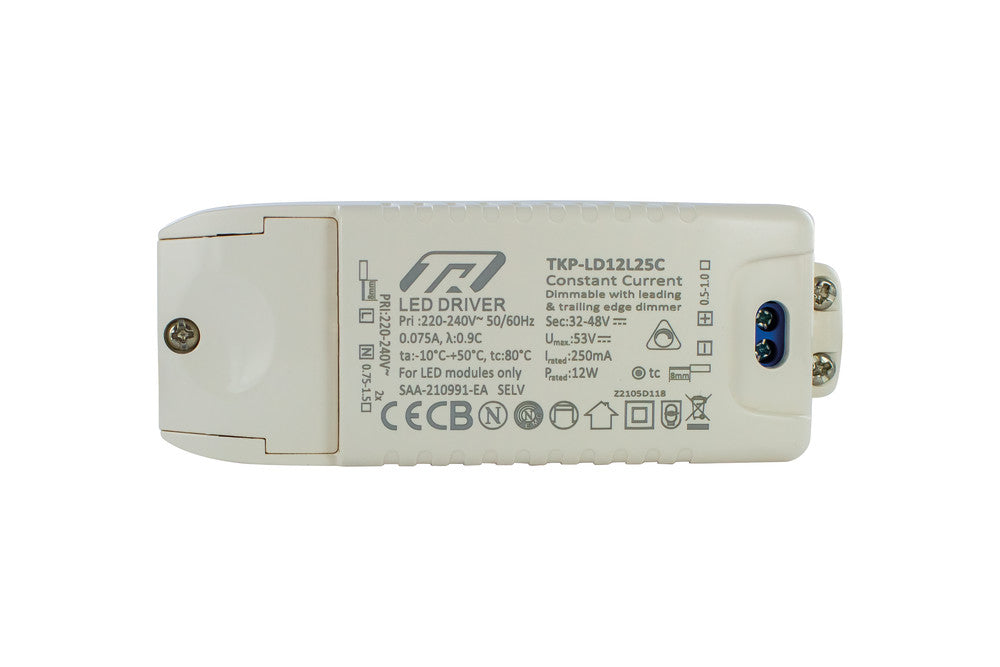

CONSTANT CURRENT DRIVER 10.5W 250MA IP20 TRIAC DIMMABLE 32-45V OUTPUT INTEGRAL - ILDRCCA073A

CONSTANT CURRENT DRIVER 10.5W 250MA IP20 TRIAC DIMMABLE 32-45V OUTPUT INTEGRAL - ILDRCCA073A

£12.31 exc. VAT
exc. VAT
exc. VAT
 £12.31

£14.77 inc. VAT
Sale Sold out
Shipping calculated at checkout.

10.5W non-dimmable constant current LED driver.Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output: 10.5W
Product Feature 3:
250mA
Product Feature 4:
Constant current
Product Feature 5:
Class II
  • Quick Order Code: 560144
  • Barcode: 5055788268468
  • Category: Drivers
  • Range Name: TRIAC
  • Product Type: Constant Current
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 3
  • Product Length (mm): 100
  • Product Depth (mm): 20
  • Product Width (mm): 40
  • Product Weight (g): 59
  • Placement / Application: Indoor, General Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 10.5
  • Power Factor: 0.9
  • Voltage (V): 32-45
  • Voltage Range (v): 220-240
  • Input Current (A): 0.1
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): 250
  • Dimming: TRIAC
  • Electric Current: AC
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 85
