Integral LED

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 13-29W 250-600MA IP20 DALI- DALI2 - PUSH-DIMM 0-10V DIMMABLE 14-42V OUTPUT INTEGRAL - ILDRCCA070A

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 13-29W 250-600MA IP20 DALI- DALI2 - PUSH-DIMM 0-10V DIMMABLE 14-42V OUTPUT INTEGRAL - ILDRCCA070A

£23.27 exc. VAT
exc. VAT
exc. VAT
 £23.27

£27.92 inc. VAT
Sale Sold out
Shipping calculated at checkout.

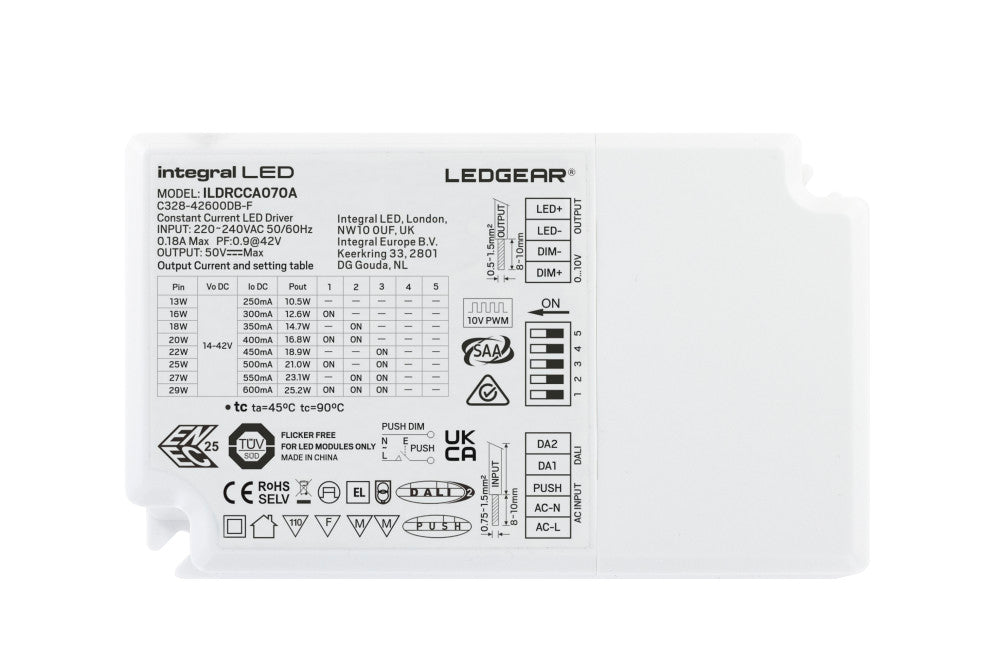

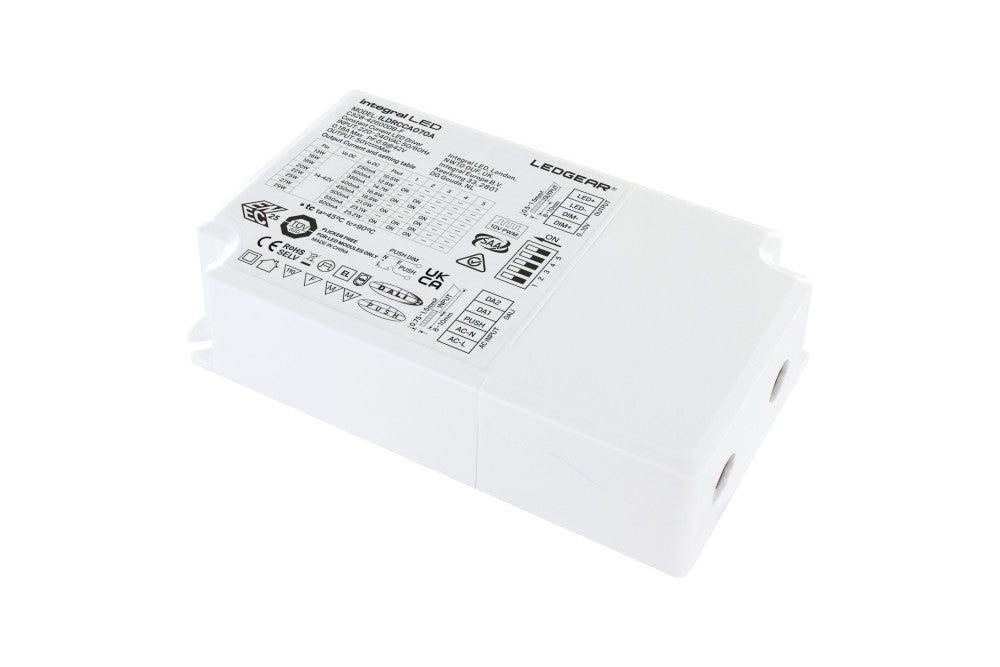

40W constant current LED driver operates 200-240VAC input range. This driver features adjustable output current and is DALI, DALI2, P dimmable.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range: 13-29W
Product Feature 3:
Adjustable output current range 250-600mA
Product Feature 4:
Output voltage range 14-42V
Product Feature 5:
ENEC
  • Quick Order Code: 881912
  • Barcode: 5055788252986
  • Category: Drivers
  • Range Name: DALI, DALI2, 0 - 10V, Push - DIM
  • Product Type: Constant Current
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Product Length (mm): 125
  • Product Depth (mm): 30
  • Product Width (mm): 76
  • Product Weight (g): 185
  • Material: Polycarbonate
  • Placement / Application: Indoor, LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Factor: 0.95
  • Voltage (V): 14-42
  • Voltage Range (v): 220-240
  • Input Current (A): 0.18
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): Adjustable
  • Output Voltage (V): 14-42
  • Dimming: DALI, DALI2, 0 - 10V, PUSH-DIM
  • Protection Function: Short Circuit protection, Overload protection, Thermal protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
View full details
