Integral LED

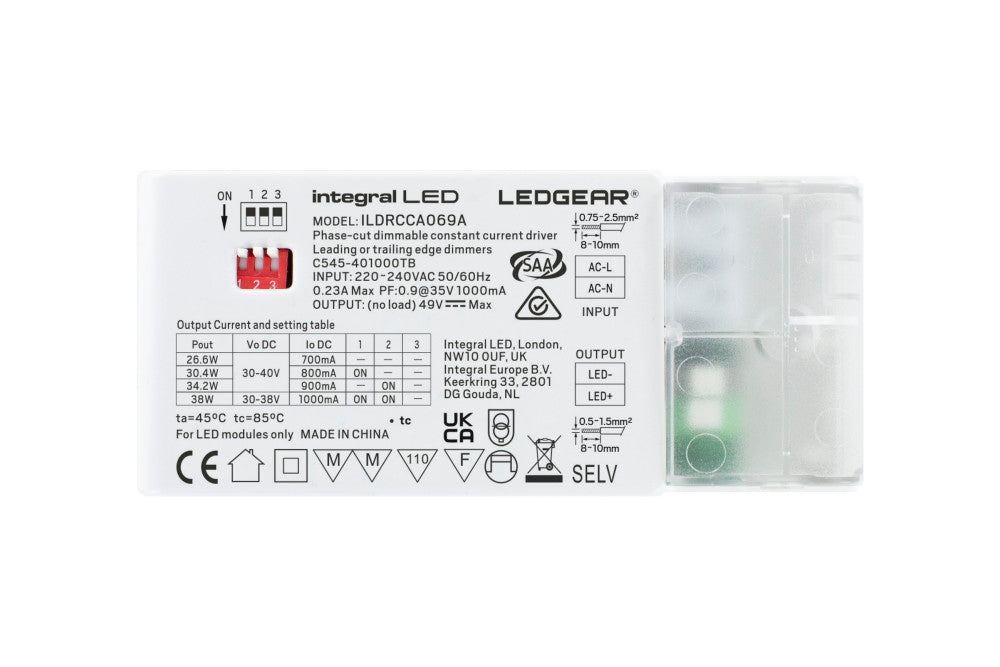

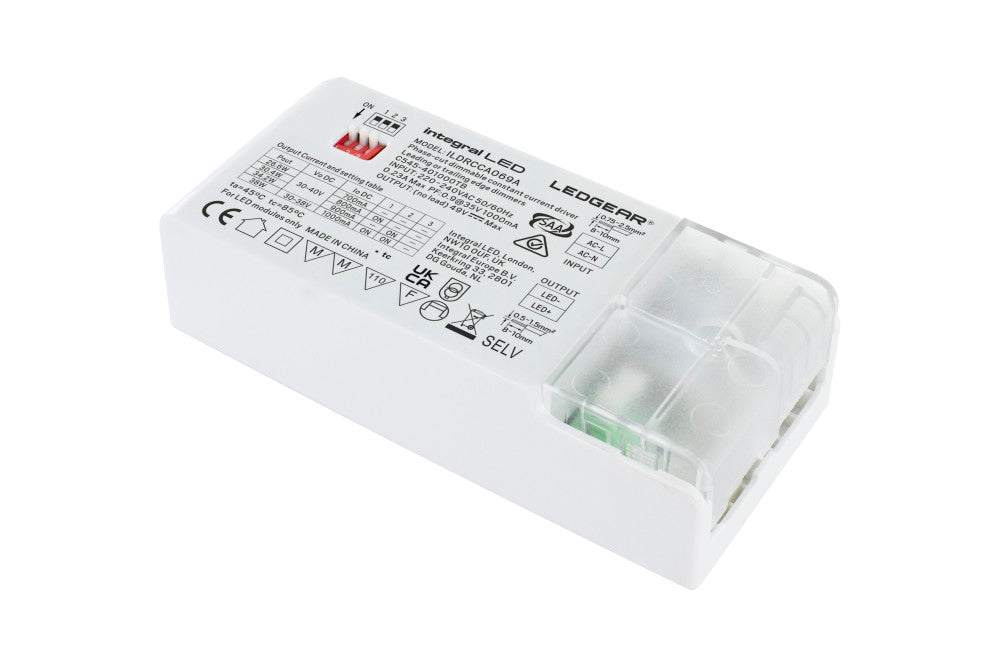

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 26.6-38W 700-1000MA IP20 TRIAC DIMMABLE 30-40V OUTPUT INTEGRAL - ILDRCCA069A

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 26.6-38W 700-1000MA IP20 TRIAC DIMMABLE 30-40V OUTPUT INTEGRAL - ILDRCCA069A

£18.78 exc. VAT
exc. VAT
exc. VAT
 £18.78

£22.54 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Output Power range 26.6-38W
Product Feature 3:
Adjustable output current range 700-1000mA
Product Feature 4:
Output voltage range 30-40V
  • Quick Order Code: 517202
  • Barcode: 5055788252979
  • Category: Drivers
  • Range Name: TRIAC
  • Product Type: Constant Current
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Product Length (mm): 115
  • Product Depth (mm): 30
  • Product Width (mm): 52
  • Product Weight (g): 240
  • Material: Polycarbonate
  • Placement / Application: Indoor, LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Factor: 0.95
  • Voltage (V): 30-40
  • Voltage Range (v): 220-240
  • Input Current (A): 0.23
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): Adjustable
  • Output Voltage (V): 30-40
  • Dimming: TRIAC
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
View full details
