Integral LED

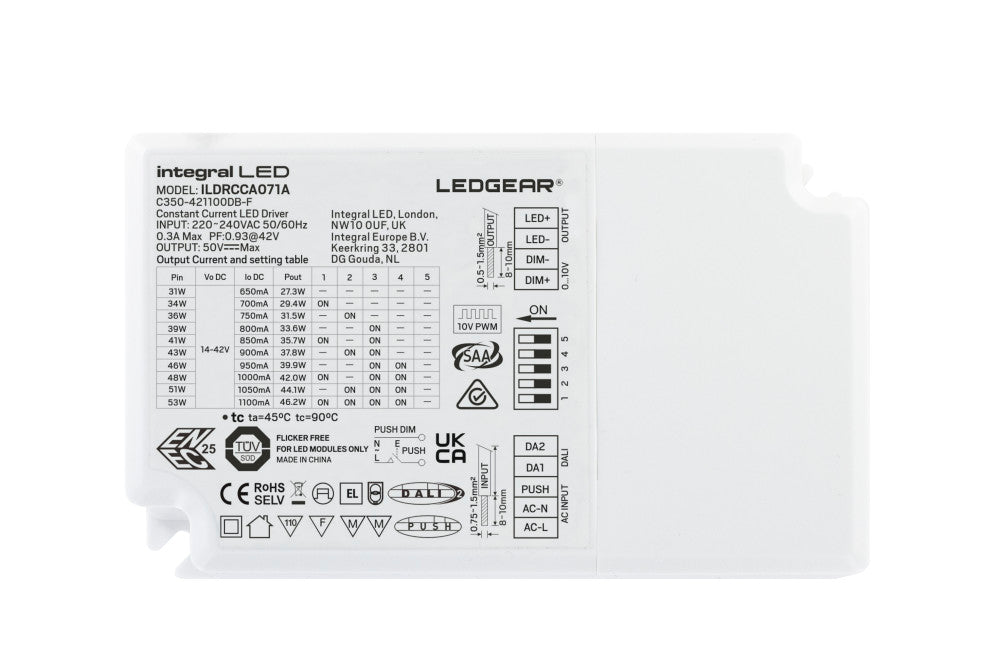

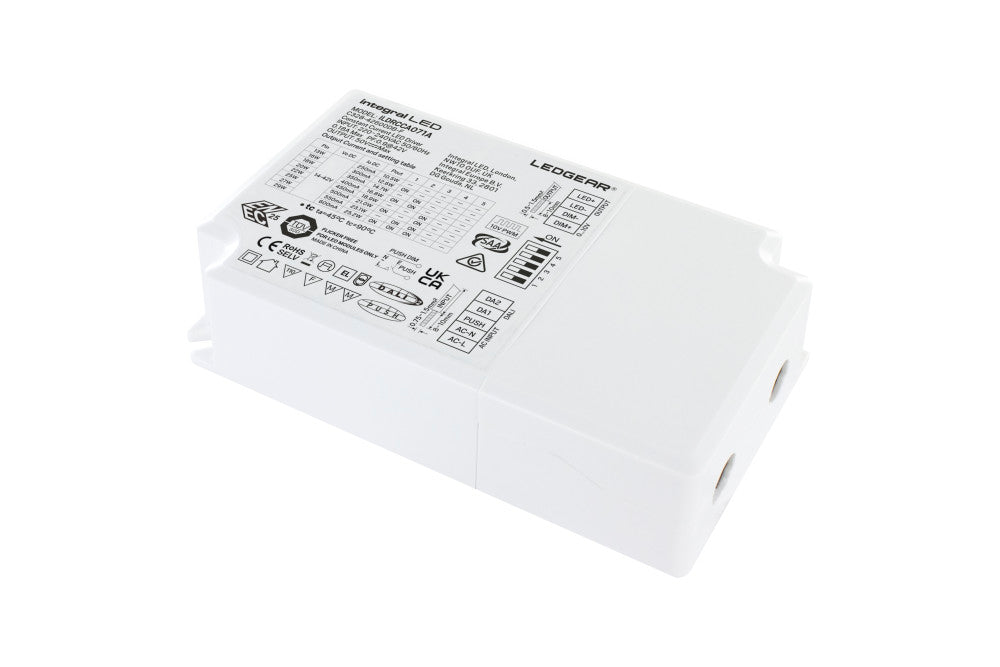

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 31-53W 650-1100MA IP20 DALI - DALI2 - PUSH-DIMM 0-10V DIMMABLE 14-42V OUTPUT INTEGRAL - ILDRCCA071A

CONSTANT CURRENT DRIVER ADJUSTABLE OUTPUT 31-53W 650-1100MA IP20 DALI - DALI2 - PUSH-DIMM 0-10V DIMMABLE 14-42V OUTPUT INTEGRAL - ILDRCCA071A

£24.63 exc. VAT
exc. VAT
exc. VAT
 £24.63

£29.56 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.

Product Feature 1:
Input Voltage: 220-240VAC
Product Feature 2:
Adjustable Output: 31-53W
Product Feature 3:
650-1100mA
Product Feature 4:
14-42V
Product Feature 5:
ENEC
  • Quick Order Code: 842361
  • Barcode: 5055788252993
  • Category: Drivers
  • Range Name: DALI, DALI2, 0 - 10V, Push - DIM
  • Product Type: Constant Current
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Product Length (mm): 125
  • Product Depth (mm): 30
  • Product Width (mm): 76
  • Product Weight (g): 185
  • Material: Polycarbonate
  • Placement / Application: Indoor, LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Factor: 0.95
  • Voltage (V): 14-42
  • Voltage Range (v): 220-240
  • Input Current (A): 0.3
  • Input Voltage (V): 220-240VAC
  • Output Current (mA): Adjustable
  • Output Voltage (V): 14-42
  • Dimming: DALI, DALI2, 0 - 10V, PUSH-DIM
  • Protection Function: Short Circuit protection, Overload protection, Thermal protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
