Integral LED

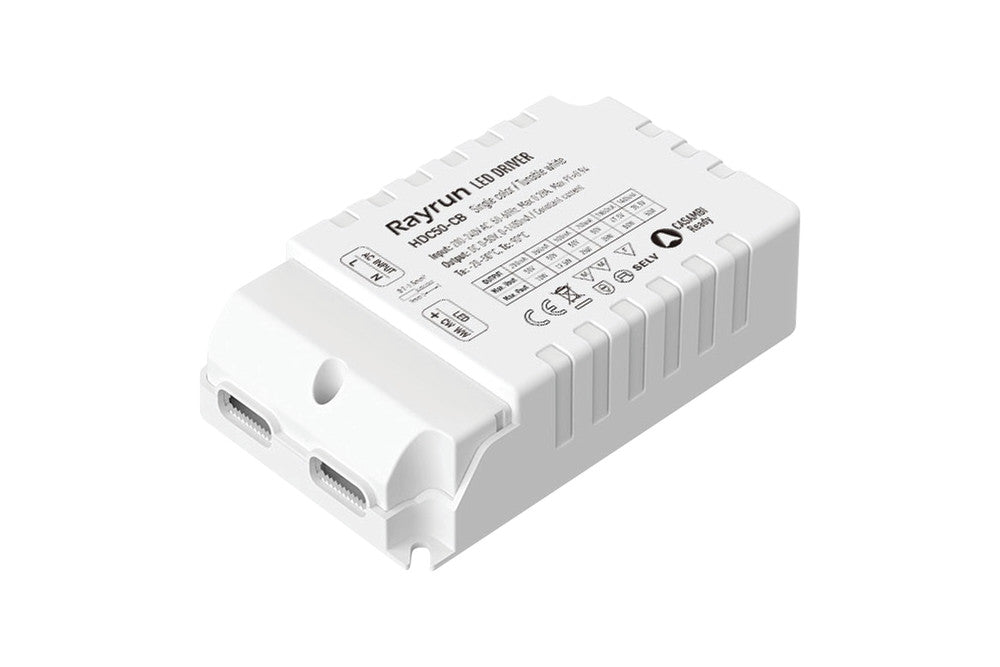

CONSTANT CURRENT DRIVER CASAMBI CCT-TUNABLE 50W 200-1400MA IP20 0-50VDC OUTPUT - ILCTCAS-HDC50CB-E
CONSTANT CURRENT DRIVER CASAMBI CCT-TUNABLE 50W 200-1400MA IP20 0-50VDC OUTPUT - ILCTCAS-HDC50CB-E
Regular price
£114.03
exc. VAT
Regular price
exc. VAT
exc. VAT
Sale price
£114.03
Unit price
/
per
£136.84 inc. VAT
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
Easily match the constant current, power output and operating voltage values required by your luminaire and lighting circuit with this 50W colour temperature adjustable Casambi-ready constant current driver.This product is suitable for most non-mains-operated LED luminaires including downlights, and panels.
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Adjustable Constant Current: 200-1400mA (via Casambi app)
- Product Feature 3:
- Output: 50W / 0-50VDC
- Product Feature 4:
- Suitable for Single-Colour and Tunable White LED Panels and downlights
- Product Feature 5:
- 100%-50% in-app current trim with 5% increments
- Product Feature 6:
- Output power: 50W
- Product Feature 7:
- Class II, SELV, Short Circuit / Over Load / Over Heat Protection
Share
Details
Details
- Quick Order Code: 377965
- Barcode: 5055788287872
- Category: Drivers
- Range Name: Casambi
- Type: Constant Current
- Product Type: Constant Current
- Product Body Finish: Matt white
- Market Segment: Residential Indoor, Commercial indoor
- Warranty (Years): 5
Physical Data
Physical Data
- Product Length (mm): 130
- Product Depth (mm): 30
- Product Width (mm): 67
- Product Weight (g): 164
- Material: Polycarbonate
- Placement / Application: Indoor, LED Lighting
Light Data
Light Data
- Frequency Range (Hz): 50/60
Electrical Data
Electrical Data
- Power (W): 50
- Power Consumption (W): 50
- Power Factor: 0.12
- Voltage (V): 0-50
- Input Voltage (V): 200-240VAC
- Output Current (mA): Adjustable
- Output Voltage (V): 0-50VDC
- Dimming: Casambi-app-dimmable
- Electric Current: AC
- Protection Function: Short Circuit protection, Overload protection, Thermal protection
- EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
- LVD Certified: Yes
Environmental
Environmental
- EN: EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3
- LVD Certified: Yes
- CE RoHS: Yes
- Hg 0% (Mercury Free): Yes
- IP Rating (Ingress Protection): IP20
- Lowest Operating Temperature (°C): -20
- Maximum Operating Temperature (°C): 50
