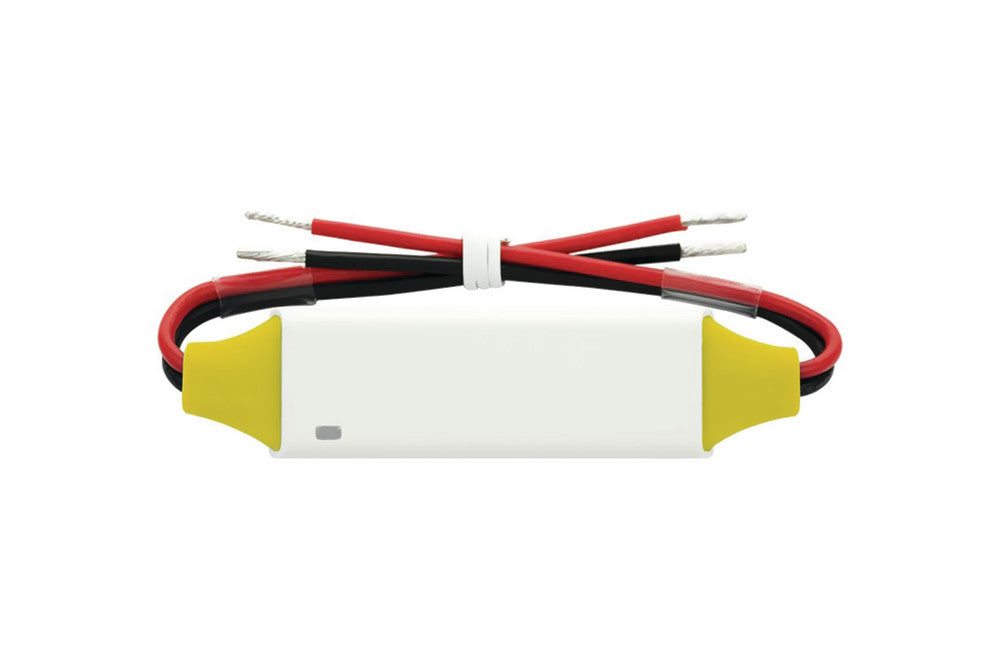

CONSTANT CURRENT DRIVER CASAMBI SECONDARY UNIT 20W 0-700MA IP20 0-48VDC OUTPUT POWER-LINE-DIMMABLE - ILCTCAS-SDF20-S

For areas inaccessible by Bluetooth signal, use our combination of Primary and Secondary application drivers to allow full connectivity.This Secondary driver requires 48VDC input along with Casambi-to-power-line communication from a Primary unit, and can be used for connecting single colour or CCT-tunable LED panels and downlights into a local hard-wired network operated without the need of direct BLE signal reception.The constant current adjustment, gradient speed, current trim level, zoning & grouping features are adjustable from the Casambi app and the Primary driver will transfer the commands to connected Secondary drivers via the power cable based on "Power-On" status detection. One Secondary driver is required for each connected luminaire.

Product Feature 1:

Suitable for controlling Single colour and Tunable White LED downlights

Product Feature 2:

Input: 48VDC + PLC data

Product Feature 3:

Output: 0-20W / 0-48VDC

Product Feature 4:

Adjustable Constant Current: 0-700mA (via Casambi app)

Product Feature 5:

Used in conjunction with ILCTCAS-PD200CB Primary driver
