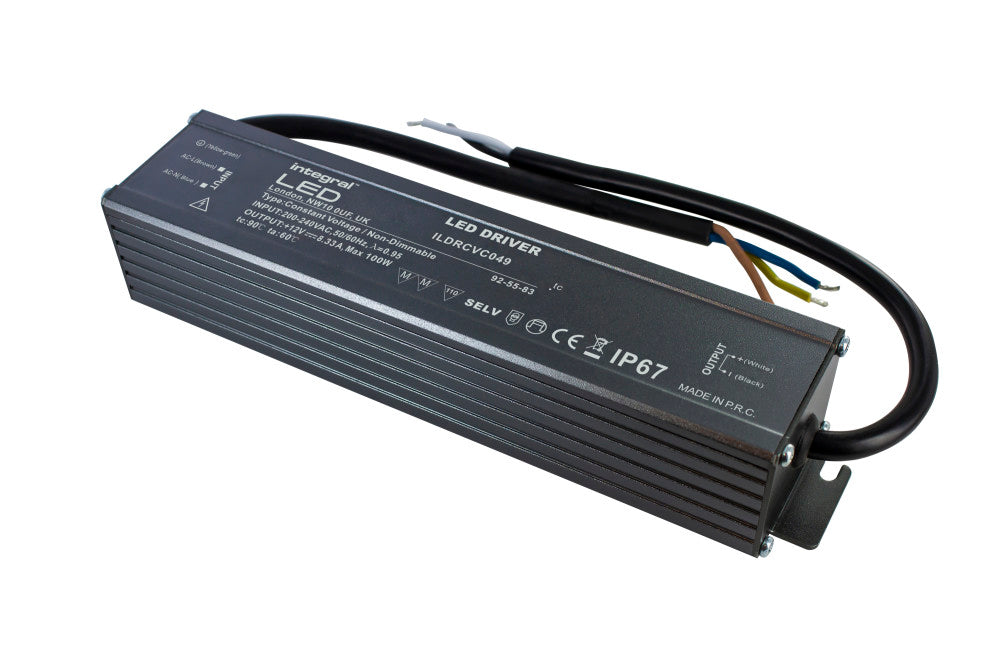

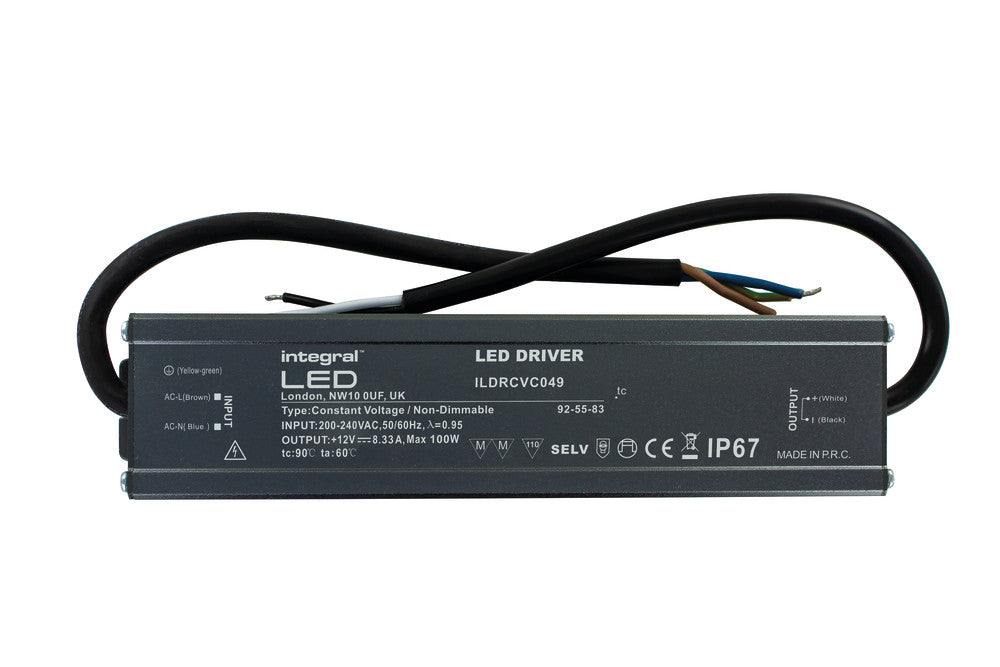

CONSTANT VOLTAGE DRIVER 100W 12VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC049

CONSTANT VOLTAGE DRIVER 100W 12VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC049

£38.59 exc. VAT
exc. VAT
exc. VAT
 £38.59

£46.31 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral 100W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and up to 8.33A of output current for a 100W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 12V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strip.

Product Feature 1:
Input Voltage: 200-240VAC
Product Feature 2:
Output Power: 100W
Product Feature 3:
Output: 12VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
  • Quick Order Code: 925583
  • Barcode: 5055788238744
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Market Segment: Commercial outdoor , Residential outdoor
  • Warranty (Years): 3
  • Product Length (mm): 211
  • Product Depth (mm): 38.3
  • Product Width (mm): 46
  • Product Weight (g): 580
  • Material: Metal Shell
  • Placement / Application: Outdoor LED Light
  • Frequency Range (Hz): 50/60
  • Power (W): 100
  • Power Consumption (W): 100
  • Power Factor: 0.95
  • Voltage (V): 12
  • Input Current (A): 0.7
  • Input Voltage (V): 200-240
  • Output Current (mA): 8330
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP67
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 60
