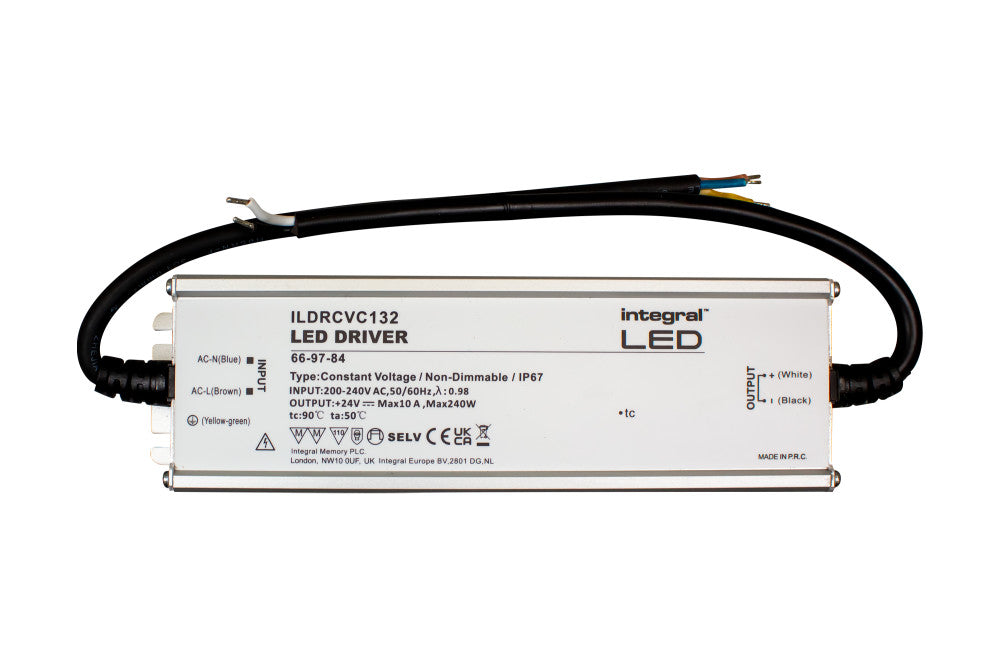

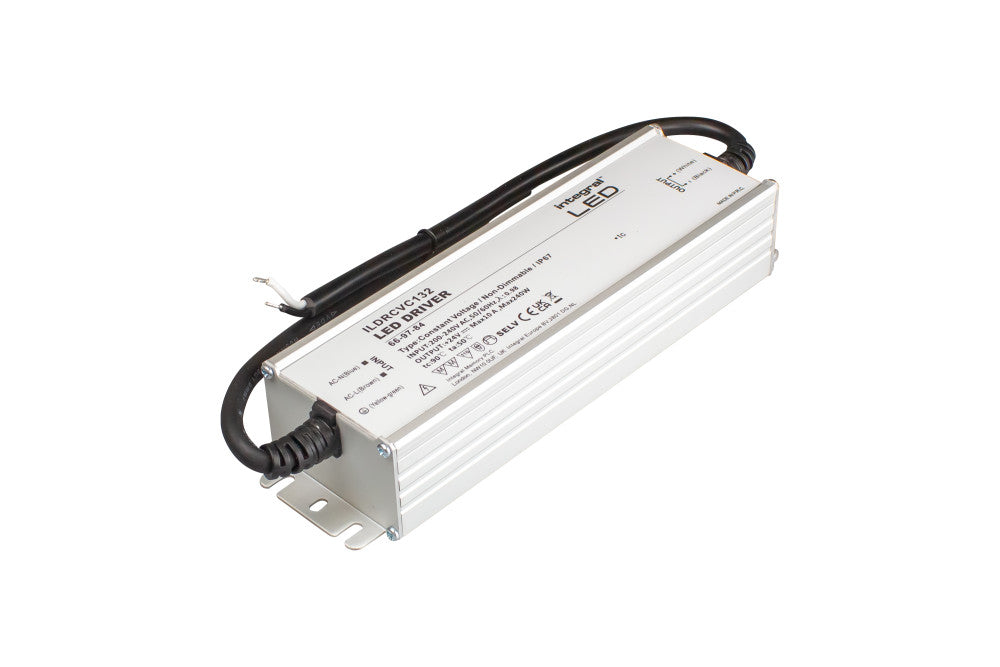

CONSTANT VOLTAGE DRIVER 240W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC132

CONSTANT VOLTAGE DRIVER 240W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC132

£51.55 exc. VAT
exc. VAT
exc. VAT
 £51.55

£61.86 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This non-dimmable 240W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage for applications such as 24V LED strip lighting.

Product Feature 1:
Input Voltage: 200-240V
Product Feature 2:
Output Power: 240W
Product Feature 3:
Output: 24VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
Product Feature 5:
Class I product - Earth connection required
  • Quick Order Code: 669784
  • Barcode: 5055788288510
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Product Body Finish: Silver
  • Market Segment: Commercial outdoor, Residential outdoor
  • Warranty (Years): 5
  • Product Length (mm): 220.6
  • Product Depth (mm): 41.3
  • Product Width (mm): 62.5
  • Product Weight (g): 980
  • Material: Metal Shell
  • Placement / Application: Indoor LED Lighting, Outdoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power (W): 240
  • Power Consumption (W): 50
  • Power Factor: 0.97
  • Voltage (V): 24
  • Input Current (A): 0.35
  • Input Voltage (V): 200-240
  • Output Current (mA): 20000
  • Output Voltage (V): 24
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP67
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 55
