Integral LED

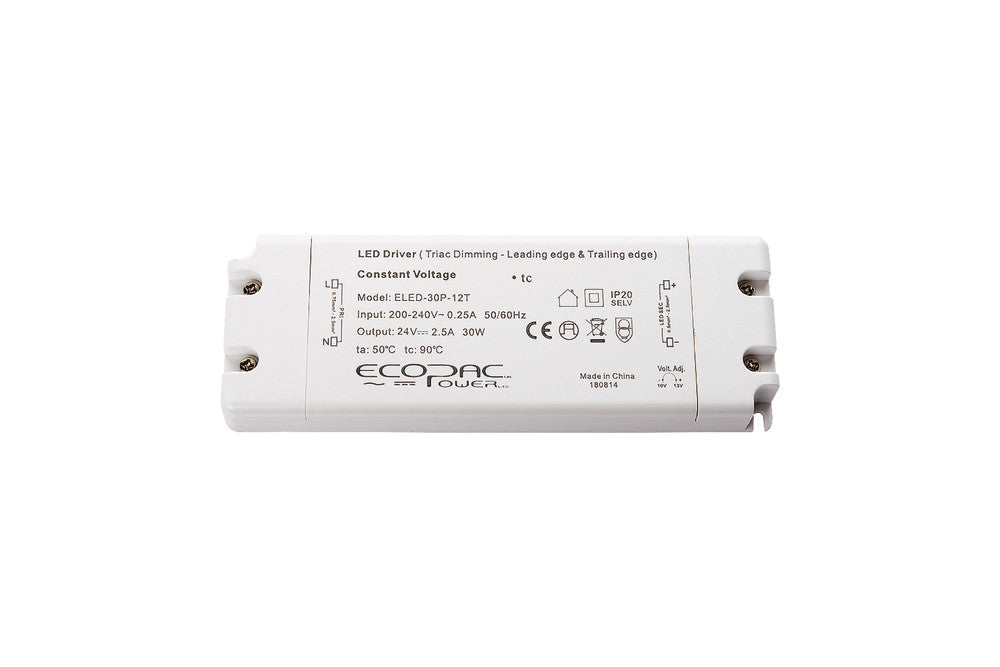

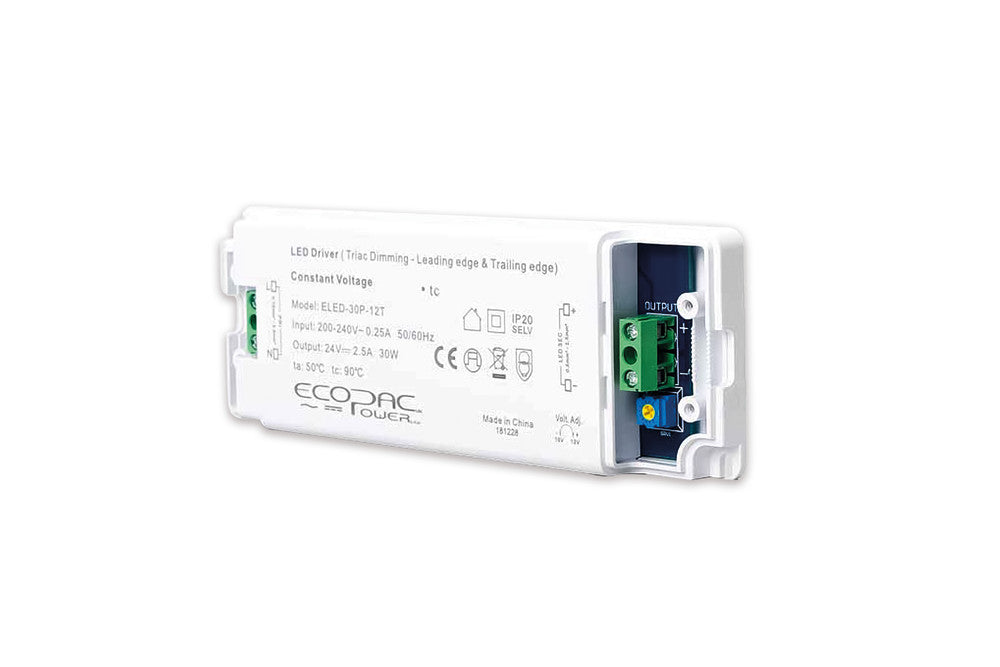

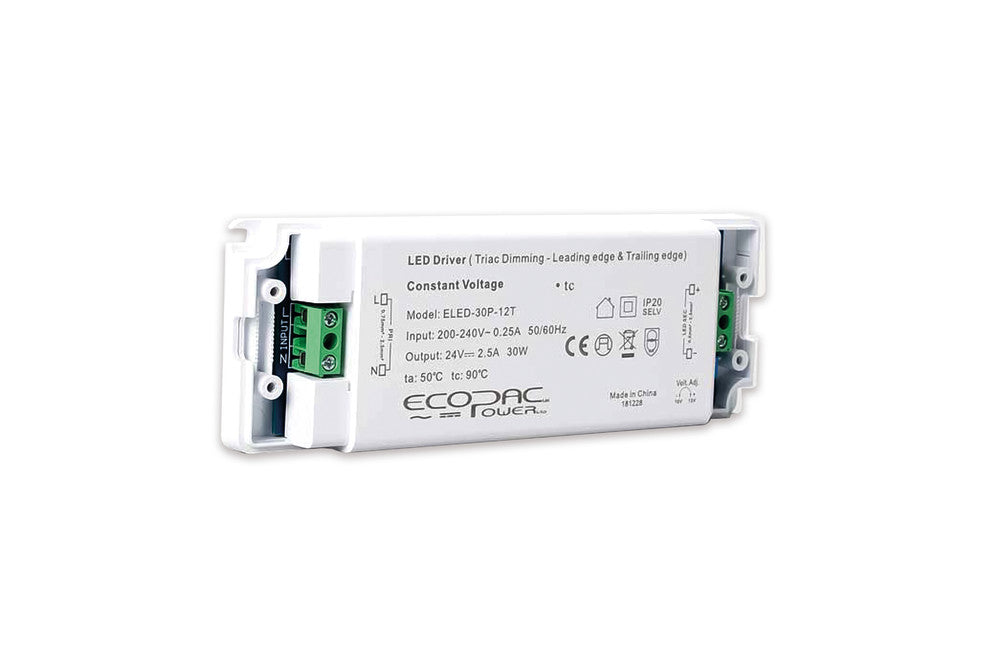

CONSTANT VOLTAGE DRIVER 30W 24VDC IP20 TRIAC DIMMABLE 200-240V INPUT 1.5W MIN LOAD ECOPAC POWER - ELED-30P-24T

CONSTANT VOLTAGE DRIVER 30W 24VDC IP20 TRIAC DIMMABLE 200-240V INPUT 1.5W MIN LOAD ECOPAC POWER - ELED-30P-24T

£40.97 exc. VAT
exc. VAT
exc. VAT
 £40.97

£49.16 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This 30W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers

Product Feature 1:
Input Voltage: 200-240VAC
Product Feature 2:
Output Power: 30W
Product Feature 3:
Output: 24VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
  • Quick Order Code: '014731
  • Barcode: 5055788265962
  • Category: Drivers
  • Range Name: TRIAC
  • Product Type: Constant Voltage
  • Market Segment: Commercial indoor, Residential indoor
  • Warranty (Years): 2
  • Product Length (mm): 155
  • Product Depth (mm): 20
  • Product Width (mm): 54
  • Product Weight (g): 196
  • Placement / Application: Indoor LED Lighting
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 30
  • Power Factor: 0.97
  • Voltage (V): 24
  • Voltage Range (v): 200-240
  • Input Current (A): 0.22
  • Input Voltage (V): 200-240VAC
  • Output Current (mA): 1250
  • Dimming: Triac Dimmable using leading and trailing edge dimmers
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 60
View full details
