Integral LED

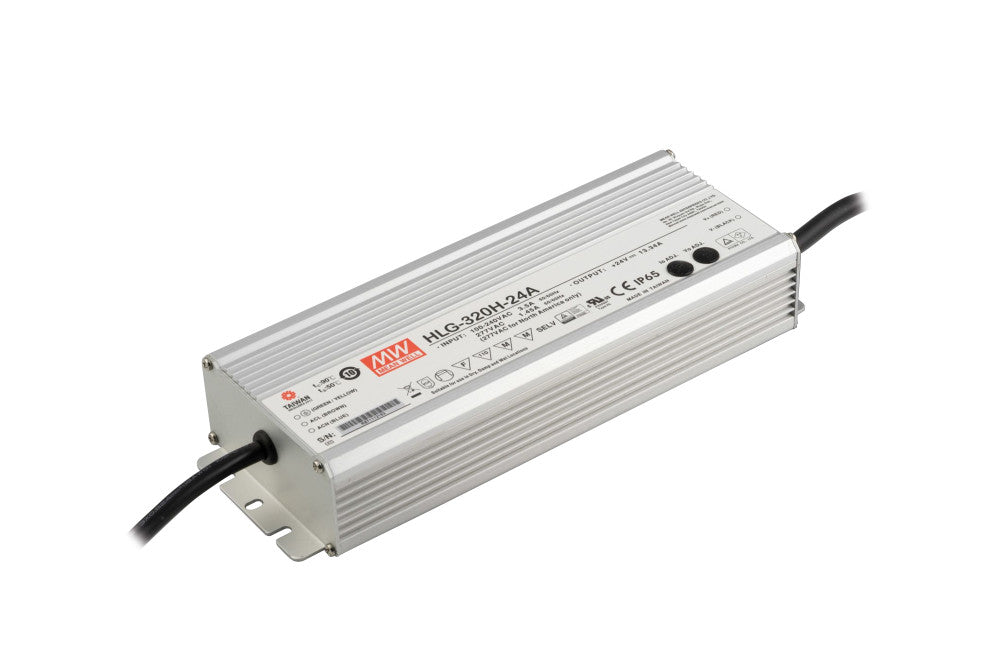

CONSTANT VOLTAGE DRIVER 320W 24VDC IP65 NON-DIMM 90-305V INPUT MEANWELL - HLG-320H-24A

CONSTANT VOLTAGE DRIVER 320W 24VDC IP65 NON-DIMM 90-305V INPUT MEANWELL - HLG-320H-24A

£131.73 exc. VAT
exc. VAT
exc. VAT
 £131.73

£158.08 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This non-dimmable 320W constant voltage LED driver operates 115-277VAC input range. The LED driver provides 24V constant voltage for applications such as 24V LED strip lighting.

Product Feature 1:
Input Voltage: 115-277VAC
Product Feature 2:
Output Power: 320W
Product Feature 3:
Output: 24VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
  • Quick Order Code: 166747
  • Barcode: 5055788229155
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Market Segment: Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor
  • Warranty (Years): 5
  • Product Length (mm): 252
  • Product Depth (mm): 44
  • Product Width (mm): 90
  • Product Weight (g): 1795
  • Placement / Application: Indoor LED Lighting, Outdoor LED Light
  • Frequency Range (Hz): 50/60
  • Power (W): 320
  • Power Consumption (W): 320
  • Power Factor: 0.9
  • Voltage (V): 24
  • Input Voltage (V): 115-277
  • Output Current (mA): 13340
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
