Integral LED

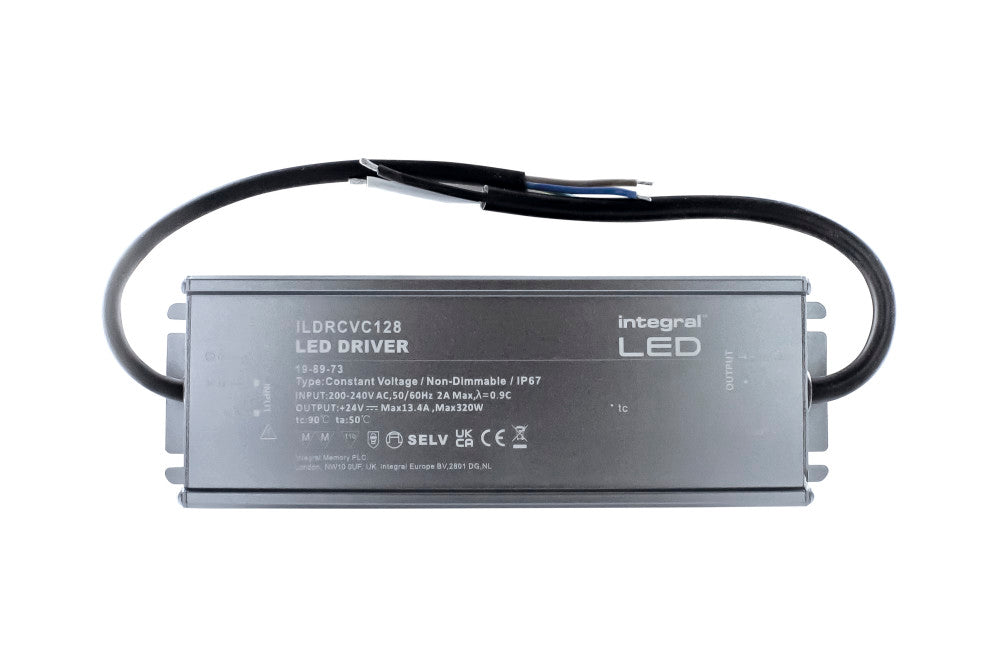

CONSTANT VOLTAGE DRIVER 320W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC128

CONSTANT VOLTAGE DRIVER 320W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC128

£79.99 exc. VAT
exc. VAT
exc. VAT
 £79.99

£95.99 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This Integral LED 320W constant voltage LED driver operates at 200-240VAC input range. It provides 24V constant voltage and up to 13.4A of output current for a 320W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 24V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strips.

Product Feature 1:
Input Voltage: 200-240VAC
Product Feature 2:
Output Power: 320W
Product Feature 3:
Output: 24VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
Product Feature 5:
Class I
  • Quick Order Code: 198973
  • Barcode: 5055788274629
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Market Segment: Commercial outdoor , Residential outdoor
  • Warranty (Years): 3
  • Product Length (mm): 225
  • Product Depth (mm): 38
  • Product Width (mm): 73.5
  • Product Weight (g): 1050
  • Material: Aluminium Shell
  • Placement / Application: Indoor LED Lighting, Outdoor LED Light
  • Frequency Range (Hz): 50/60
  • Power Consumption (W): 320
  • Power Factor: 0.9
  • Voltage (V): 24
  • Voltage Range (v): 200-240
  • Input Current (A): 2
  • Input Voltage (V): 200-240
  • Output Current (mA): 13.4
  • Output Voltage (V): 24
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): 67
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 50
