Integral LED

CONSTANT VOLTAGE DRIVER 50W 12VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC129

CONSTANT VOLTAGE DRIVER 50W 12VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL - ILDRCVC129

£28.30 exc. VAT
exc. VAT
exc. VAT
 £28.30

£33.96 inc. VAT
Sale Sold out
Shipping calculated at checkout.

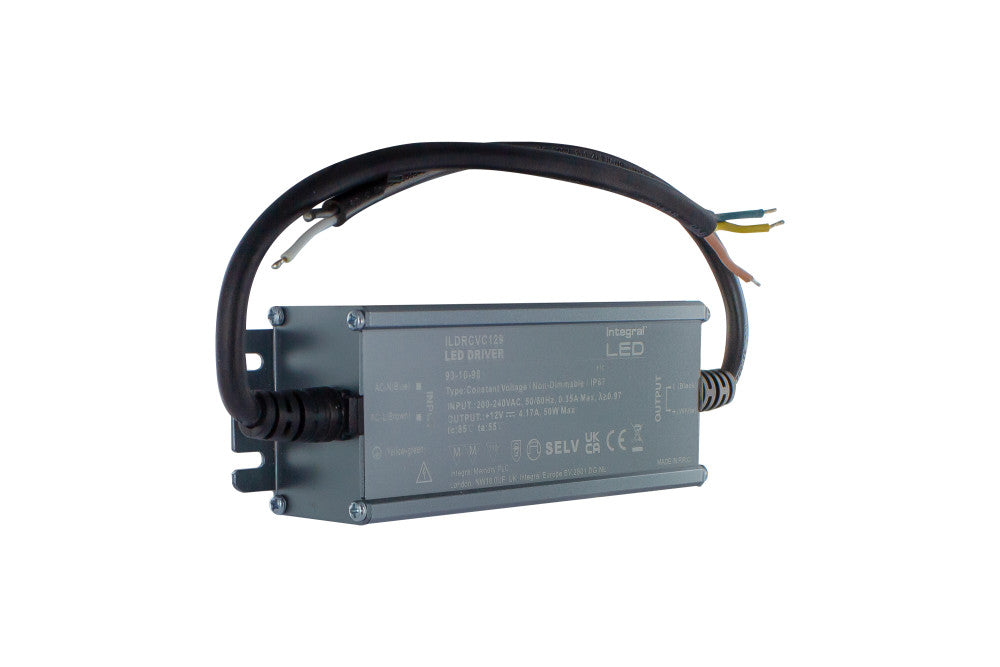

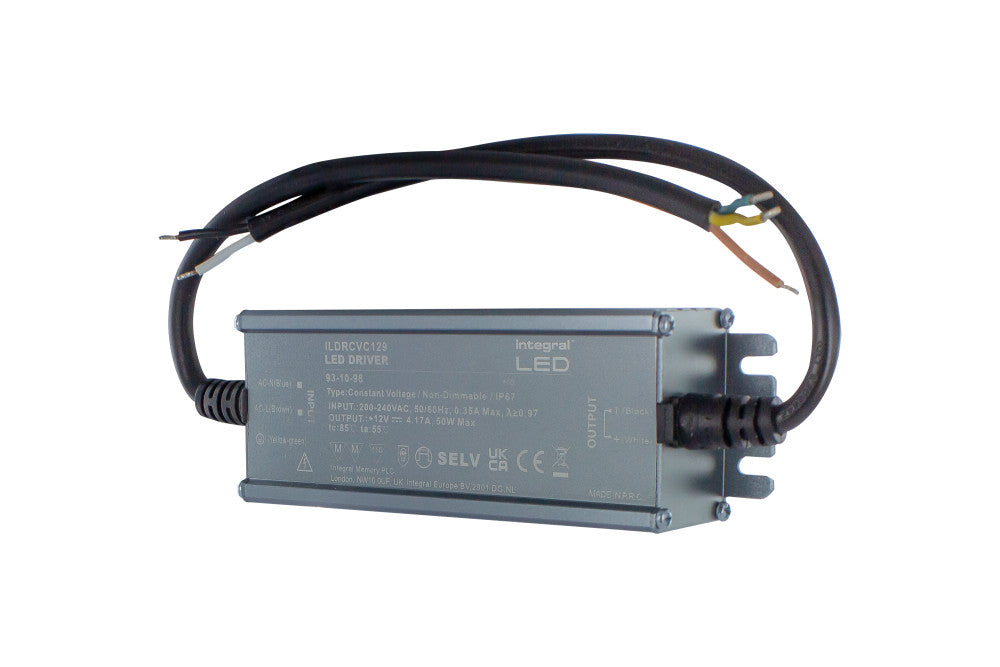

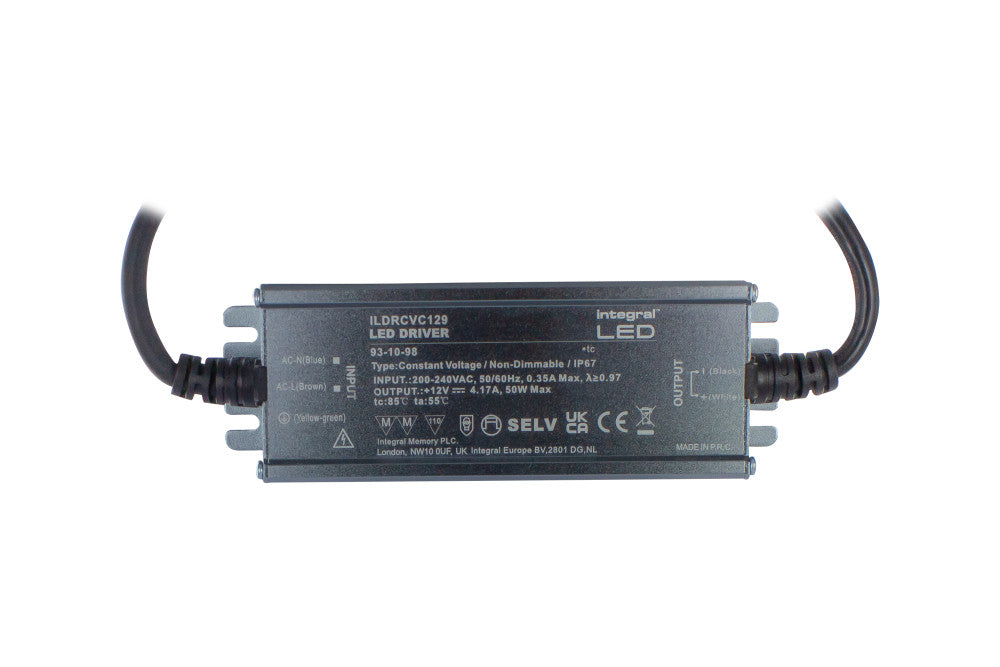

This Integral LED 50W constant voltage LED driver operates at 200-240VAC input range. It provides 12V constant voltage and up to 4.16A of output current for a 50W maximum output power.Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 12V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strips.

Product Feature 1:
Input Voltage: 200-277V
Product Feature 2:
Output Power: 50W
Product Feature 3:
Output: 12VDC Constant Voltage
Product Feature 4:
Short Circuit / Over Load / Over Heat Protection
Product Feature 5:
Class I product - Earth connection required
  • Quick Order Code: 931098
  • Barcode: 5055788283539
  • Category: Drivers
  • Range Name: Non-Dimmable
  • Product Type: Constant Voltage
  • Product Body Finish: Charcoal Grey
  • Market Segment: Commercial outdoor, Residential outdoor
  • Warranty (Years): 3
  • Product Length (mm): 157
  • Product Depth (mm): 36.5
  • Product Width (mm): 52.9
  • Product Weight (g): 440
  • Material: Metal Shell
  • Placement / Application: Indoor LED Lighting, Outdoor LED Ligh
  • Frequency Range (Hz): 50/60
  • Power (W): 50
  • Power Consumption (W): 50
  • Power Factor: 0.97
  • Voltage (V): 12
  • Input Current (A): 0.35
  • Input Voltage (V): 200-277
  • Output Current (mA): 4170
  • Output Voltage (V): 12
  • Dimming: Non-Dimmable
  • Protection Function: Short Circuit Protection, Overload Protection, Overheat Protection
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • EN: EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP67
  • Lowest Operating Temperature (°C): -40
  • Maximum Operating Temperature (°C): 55
