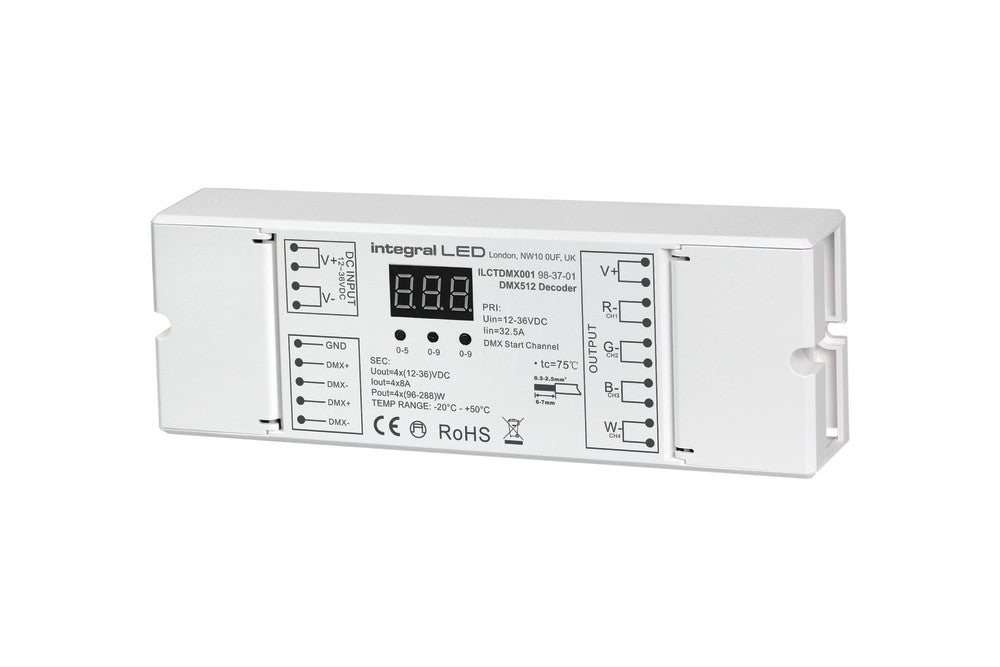

DMX 512 DECODER 12-36VDC CONSTANT VOLTAGE 384W(12V) AND 768W(24V) AND 1152W(36V) INTEGRAL - ILCTDMX001

DMX 512 DECODER 12-36VDC CONSTANT VOLTAGE 384W(12V) AND 768W(24V) AND 1152W(36V) INTEGRAL - ILCTDMX001

£48.19 exc. VAT
exc. VAT
exc. VAT
 £48.19

£57.83 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral DMX512 Decoder is designed as a standard DMX512 compliant control interface, receiving DMX512 signals and distributing to LED strip products with constant voltage (DC 12V-36V). You will be able to set up the DMX address as your prefer and the address is shown on the 3-digit display.The Integral DMX512 Decoder is compatible with a standard DMX512 master controllers.

Product Feature 1:
DMX512 decoder
Product Feature 2:
Input: DC12V-36V
Product Feature 3:
Output Current: 32A (8Ax4CH)
Product Feature 4:
Output Power: 384W (12V)/768W (24V)/1152W (36V)
Product Feature 5:
Compatible with a standard DMX512 master controller
Product Feature 6:
Compatible with the entire Integral LED Strip range
  • Quick Order Code: 983701
  • Barcode: 5055788250821
  • Category: Strips
  • Range Name: Single Colour, RGB, Digital Pixel, RGBW, Colour Temperature Changing
  • Product Type: Controllers for strips
  • Market Segment: Commercial
  • Warranty (Years): 5
  • Product Weight (g): 215
  • Material: PCB, Polycarbonate
  • Placement / Application: Indoor
  • Voltage Range (v): 13485
  • Dimming: Dimmable
  • Electric Current: DC
  • EN: EN-55015, EN-61547
  • LVD Certified: Yes
  • EN: EN-55015, EN-61547
  • LVD Certified: Yes
  • CE RoHS: Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 50
