Integral LED

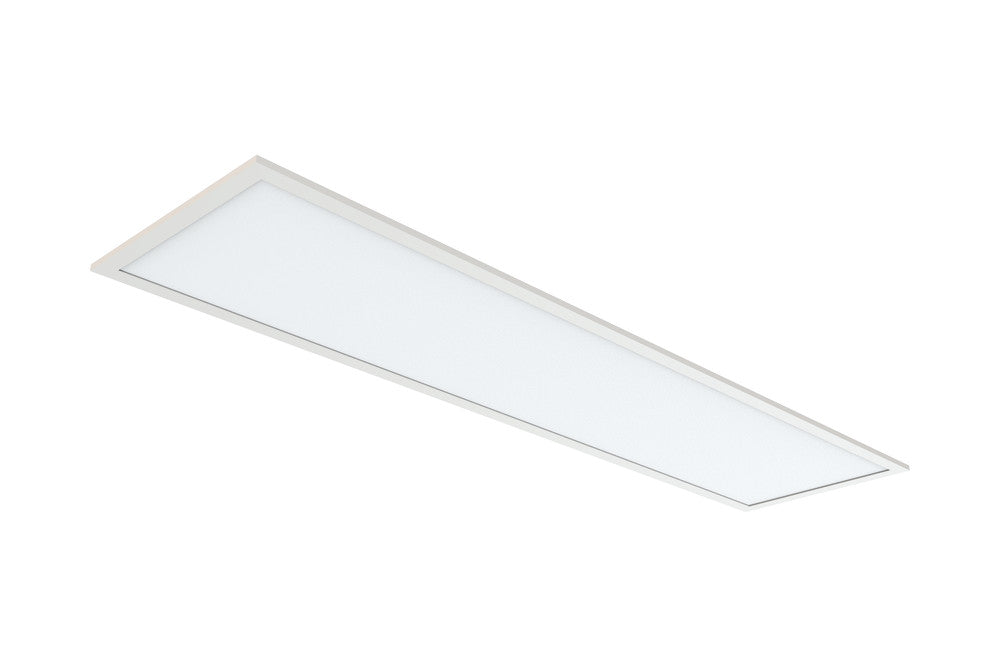

EVO LED PANEL LIGHT 1200X300 3600LM 36W 4000K BACKLIT NON-DIMM 100LM/W INTEGRAL - ILP1230B004

EVO LED PANEL LIGHT 1200X300 3600LM 36W 4000K BACKLIT NON-DIMM 100LM/W INTEGRAL - ILP1230B004

£26.59 exc. VAT
exc. VAT
exc. VAT
 £26.59

£31.91 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This is a 36W, 3600lm 1200x300 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface. The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.

Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
100lm/W
Product Feature 4:
3 Year warranty
  • Quick Order Code: 872634
  • Barcode: 5055788252160
  • Category: Panels
  • Range Name: Evo
  • Product Type: 1200 x 300
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Emergency Option: Optional Conversion Kit
  • Emergency Category: Panels
  • Product Length (mm): 1195
  • Product Depth (mm): 35
  • Product Width (mm): 295
  • Product Weight (g): 1800
  • Optic: Opal diffuser
  • Material: Aluminium, Steel, PS Diffuser
  • Construction: Aluminimum backplate and frame
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILP1230B004_EU_label
  • Luminous Flux in Lumens (lm): 3600
  • Luminous efficacy (lm/W): 100
  • Peak Intensity (Cd): 1277
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 110
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 35000
  • Lighting Method: Back-lit
  • Switching Cycles: 17500
  • Power (W): 36
  • Power Consumption (W): 36
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 86.4
  • Amperage (mA): 900
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
  • TP rating: None
