Integral LED
EVO LED PANEL LIGHT 1200X600 5050LM 50W 6500K BACKLIT NON-DIMM 101LM/W INTEGRAL - ILP1260B010
EVO LED PANEL LIGHT 1200X600 5050LM 50W 6500K BACKLIT NON-DIMM 101LM/W INTEGRAL - ILP1260B010
Regular price
£53.17
exc. VAT
Regular price
exc. VAT
exc. VAT
Sale price
£53.17
Unit price
/
per
£63.80 inc. VAT
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability

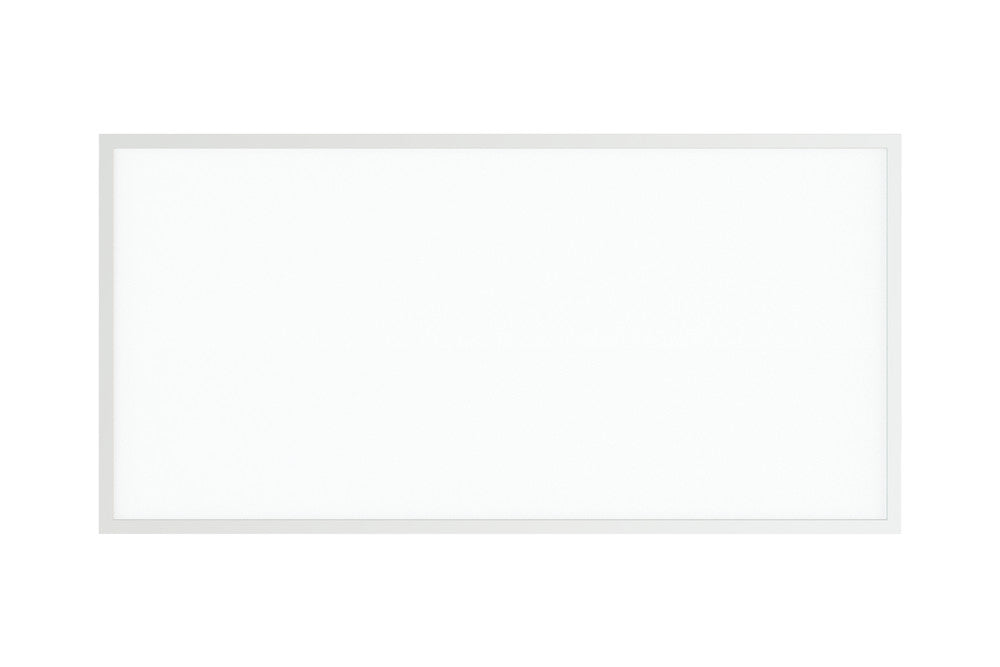

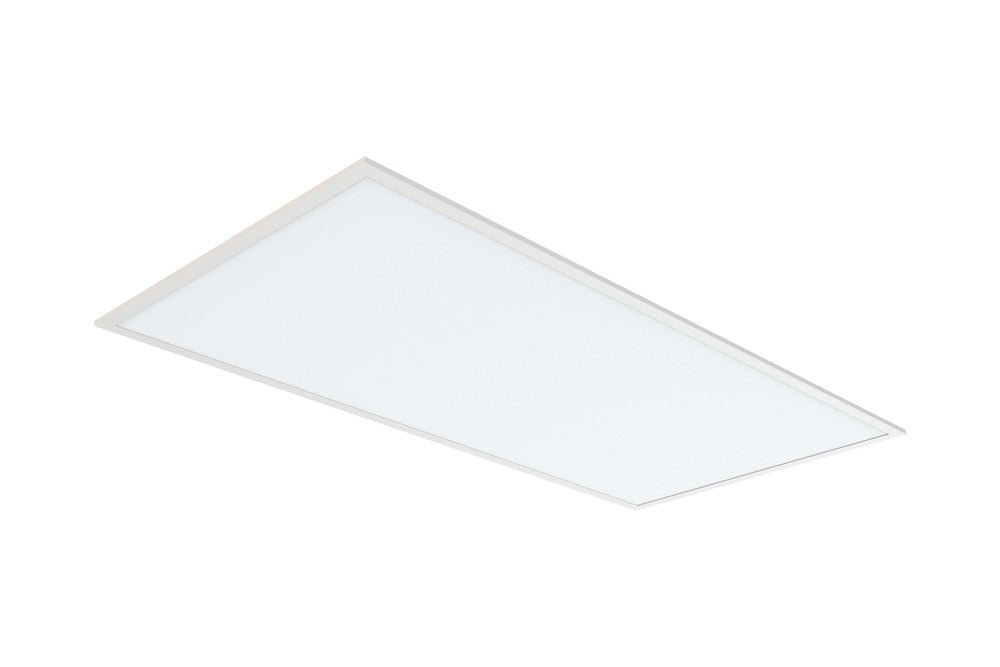

This is a 48W, 5040lm 1200x600 Integral LED Evo panel. It delivers a uniform daylight white light across the whole of its surface. The high level of efficacy (105lm/W) offers savings in running cost against traditional 144W fluorescent fittings as well as many other LED panels.
- Product Feature 1:
- Daylight White
- Product Feature 2:
- 5040 Lumens
- Product Feature 3:
- 105lm/w
- Product Feature 4:
- 3 Year warranty
Share
Details
Details
- Quick Order Code: 221365
- Barcode: 5055788252146
- Category: Panels
- Range Name: Evo
- Product Type: 1200 x 600
- Product Body Finish: Matt white
- Market Segment: Commercial indoor
- Warranty (Years): 3
Physical Data
Physical Data
- Emergency Option: Optional Conversion Kit
- Emergency Category: Panels
- Product Length (mm): 1195
- Product Depth (mm): 35
- Product Width (mm): 595
- Product Weight (g): 3600
- Optic: Opal diffuser
- Material: Aluminium, PS Diffuser
- Construction: Aluminimum backplate and frame
- Placement / Application: Indoor, General Lighting
Light Data
Light Data
- Energy Efficiency Label (Image): ILP1260B010_EU_label
- Luminous Flux in Lumens (lm): 5040
- Luminous efficacy (lm/W): 105
- Peak Intensity (Cd): 1813
- Correlated Colour Temperature (CCT) (K): 6500
- Colour Temperature: 6500K - Cool Daylight
- Colour Temperature Name: Daylight
- Beam Angle: 110
- Colour Rendering Index (CRI): 80
- Frequency Range (Hz): 50/60
- Instant on (Less than 1 second): Yes
- LED Type: Surface mounted device (SMD)
- Lifetime (hours): 35000
- Lighting Method: Back-lit
- Switching Cycles: 17500
Electrical Data
Electrical Data
- Power (W): 48
- Power Consumption (W): 48
- Power Factor: 0.9
- Voltage Range (v): 220-240
- Wattage equivalent (W): 172.8
- Amperage (mA): 1200
- Dimming: Non-Dimmable
- Driver Included: Yes
- Electric Current: AC
- EN: EN-60598
- LVD Certified: Yes
Environmental
Environmental
- EN: EN-60598
- LVD Certified: Yes
- CE RoHS: Yes
- New Energy Rating: F
- Hg 0% (Mercury Free): Yes
- IP Rating (Back/Recessed side): IP20
- IP Rating (Ingress Protection): IP20
- Lowest Operating Temperature (°C): -20
- Maximum Operating Temperature (°C): 40
- TP rating: None
