Integral LED

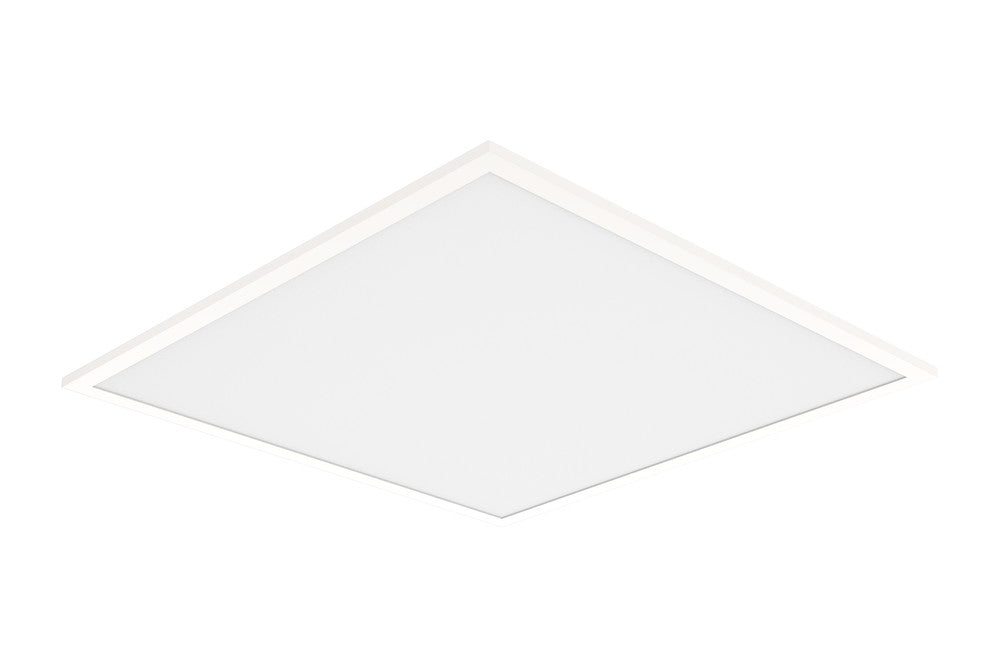

EVO LED PANEL LIGHT 600X600 3300LM 33W 4000K UGR<19 BACKLIT NON-DIMM 100LM/W INTEGRAL - ILP6060B038

EVO LED PANEL LIGHT 600X600 3300LM 33W 4000K UGR<19 BACKLIT NON-DIMM 100LM/W INTEGRAL - ILP6060B038

£21.27 exc. VAT
exc. VAT
exc. VAT
 £21.27

£25.52 inc. VAT
Sale Sold out
Shipping calculated at checkout.

This is a 30W, 3600lm 600x600 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface with a diffuser that will help acheive UGR<19 . The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.

Product Feature 1:
Cool White
Product Feature 2:
3300 Lumens
Product Feature 3:
100lm/W
Product Feature 4:
UGR<19
Product Feature 5:
3 Year Warranty
  • Quick Order Code: 188889
  • Barcode: 5055788257158
  • Category: Panels
  • Range Name: Evo
  • Product Type: 600 x 600
  • Product Body Finish: White
  • Market Segment: Commercial indoor
  • Warranty (Years): 3
  • Emergency Option: Optional Conversion Kit
  • Product Length (mm): 595
  • Product Depth (mm): 30
  • Product Width (mm): 595
  • Product Weight (g): 1400
  • Optic: Prismatic diffuser
  • Material: Aluminium, Steel, PS Diffuser
  • Construction: Aluminimum backplate and frame
  • Luminaire Fixing: Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required)
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILP6060B038_EU_label
  • Luminous Flux in Lumens (lm): 3300
  • Luminous efficacy (lm/W): 100
  • Peak Intensity (Cd): 1100
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 110
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 30000
  • Lighting Method: Back-lit
  • Switching Cycles: 25000
  • Power Consumption (W): 33
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 86.4
  • Amperage (mA): 850
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: F
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): 20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 45
  • TP rating: None
