Integral LED

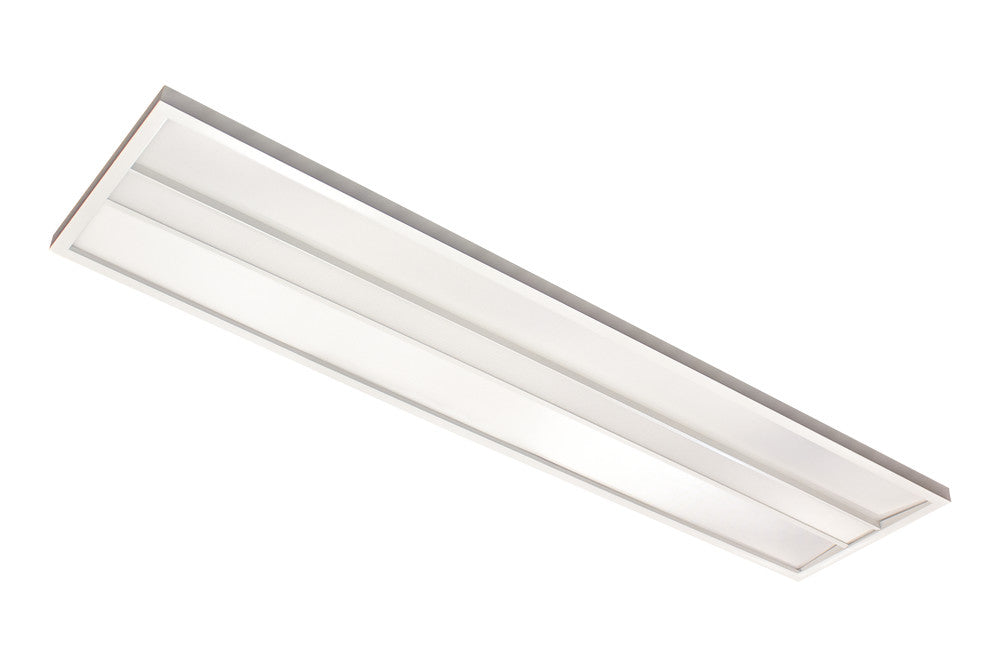

EVO LED RECESSED MODULAR 1200x300 3600lm 36W 4000k TPA UGR<19 BACKLIT NO DRIVER INCLUDED 100lm/w INTEGRAL - ILP1230B007

EVO LED RECESSED MODULAR 1200x300 3600lm 36W 4000k TPA UGR<19 BACKLIT NO DRIVER INCLUDED 100lm/w INTEGRAL - ILP1230B007

£40.61 exc. VAT
exc. VAT
exc. VAT
 £40.61

£48.73 inc. VAT
Sale Sold out
Shipping calculated at checkout.

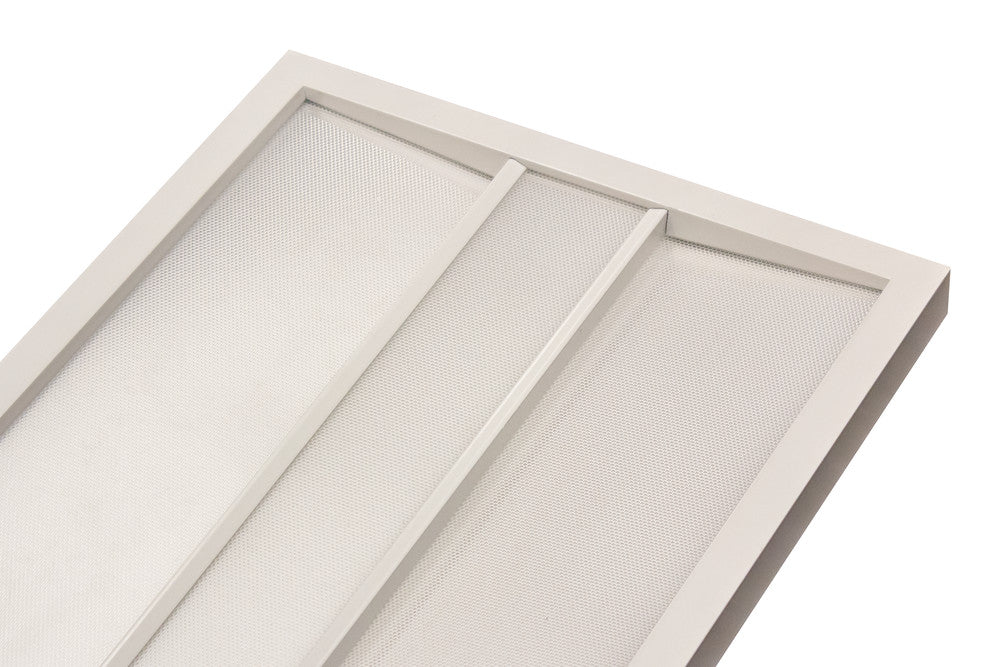

Integral LED’s recessed modular fittings feature a 3-surface angled construction with a prismatic diffuser, helping achieve URG<19 rating without modifying the traditional diffuser present in standard panels. The angled construction also allows for more control of the beam angle delivering a more attractive light compared to standard panels.Our recessed modular solutions are ideal for offices, meeting rooms, corridors, airports, schools/universities and retail environments, delivering much higher energy-saving levels compared to obsolete fluorescent fittings.The prismatic TP(a) polycarbonate diffuser has been tested by a UK-based laboratory and passed BS782-0:2004 Method 508A, as required by Fire Safety regulations.

Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
100lm/W
Product Feature 4:
UGR<19
Product Feature 5:
TP(a) rated diffuser
Product Feature 6:
5 Year Warranty
  • Quick Order Code: 557420
  • Barcode: 5055788267362
  • Category: Panels
  • Range Name: Evo
  • Product Type: 1200 x 300
  • Product Body Finish: RAL9006
  • Market Segment: Commercial indoor
  • Warranty (Years): 5
  • Emergency Option: Optional Conversion Kit
  • Product Length (mm): 1195
  • Product Depth (mm): 45
  • Product Width (mm): 295
  • Product Weight (g): 2000
  • Optic: TP(a) rated diffuser
  • Construction: Aluminimum backplate and frame
  • Luminaire Fixing: Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied)
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILP1230B007_EU_label
  • Luminous Flux in Lumens (lm): 3600
  • Luminous efficacy (lm/W): 100
  • Peak Intensity (Cd): 665
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 89
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Back-lit
  • Lifetime (hours): 35000
  • Lighting Method: Back-lit
  • Switching Cycles: 25000
  • Power (W): 36
  • Power Consumption (W): 36
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 86.4
  • Dimming: Dimmable with dimmable drivers and compatible dimmers
  • Driver Included: No
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 40
  • TP rating: TP(a)
