Integral LED

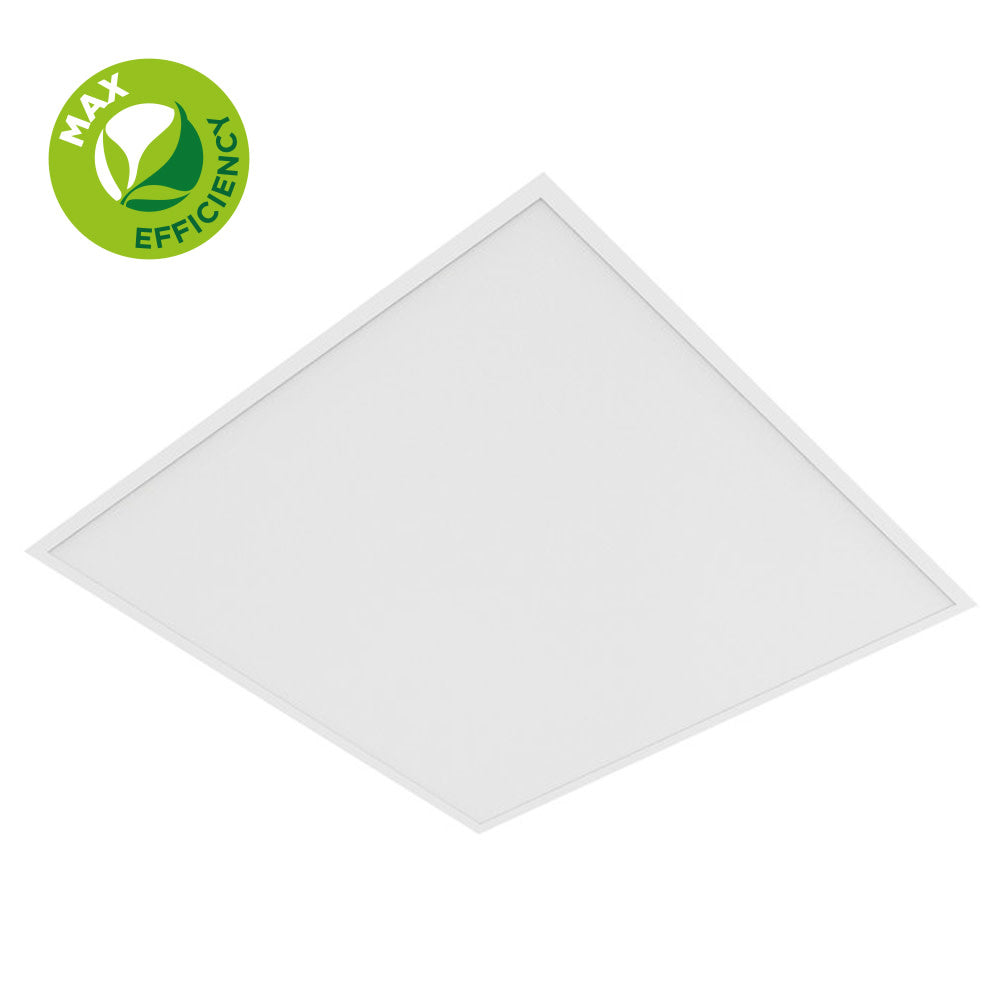

EVO MAX LED PANEL LIGHT 600X600 3600LM 20W 4000K TPA BACKLIT NON-DIMM 180LM/W INTEGRAL - ILP6060B050

EVO MAX LED PANEL LIGHT 600X600 3600LM 20W 4000K TPA BACKLIT NON-DIMM 180LM/W INTEGRAL - ILP6060B050

£35.58 exc. VAT
exc. VAT
exc. VAT
 £35.58

£42.70 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Evo Max is the latest product to receive our Max Efficiency mark, adding it to our range of high performance, energy saving luminaires.Taking office and commercial lighting efficiencies to new levels, the remarkable 180lm/W allows energy savings against traditional fluorescent fittings as well as many LED equivalents.The panel’s polycarbonate diffuser is TP(a) rated to meet BS 476-7 fire testing standard ensuring safety in the event of fire, whilst the back-lit design with frosted diffuser finish offers even, shadow-free light distribution for enhanced usability and visual comfort.Non-dimm driver included.

Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
180lm/W
Product Feature 4:
TP(a) rated diffuser
Product Feature 5:
5 Year Warranty
  • Quick Order Code: 84347
  • Barcode: 5055788298533
  • Category: Panels
  • Range Name: Evo Max
  • Product Type: 600 x 600
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 5
  • Emergency Option: No
  • Product Length (mm): 595
  • Product Depth (mm): 34
  • Product Width (mm): 595
  • Product Weight (g): 800
  • Optic: PS Diffuser
  • Material: Aluminium, Steel, PS Diffuser
  • Construction: Aluminimum backplate and frame
  • Luminaire Fixing: Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required)
  • Placement / Application: Indoor, General Lighting
  • Luminous Flux in Lumens (lm): 3600
  • Luminous efficacy (lm/W): 180
  • Peak Intensity (Cd): 1500
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lighting Method: Back-lit
  • Switching Cycles: 25000
  • Power Consumption (W): 20
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): IP20
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -10
  • Maximum Operating Temperature (°C): 40
  • TP rating: TP(a)
