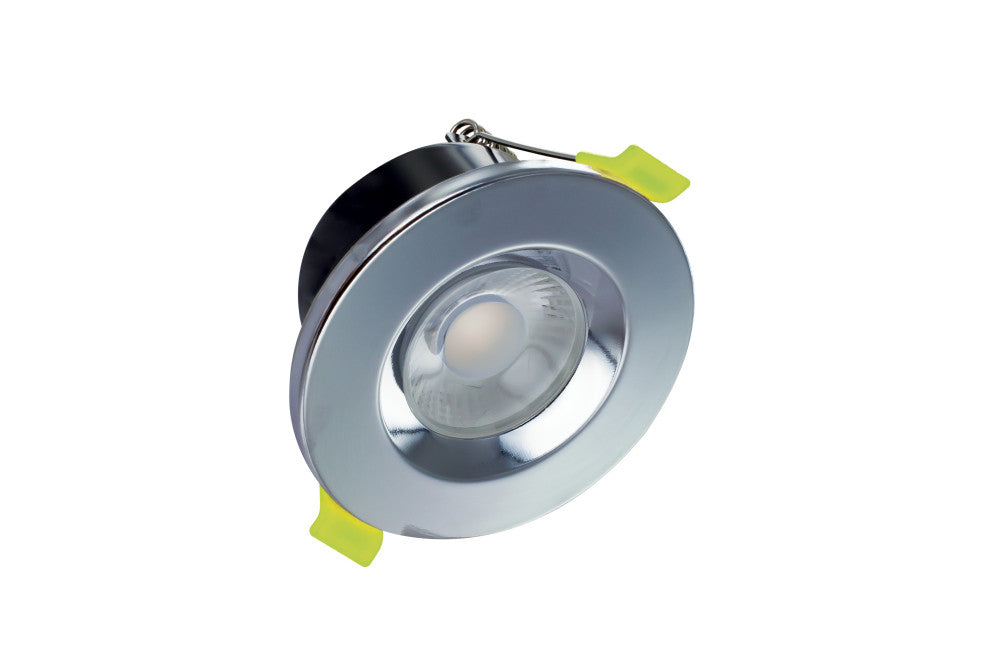

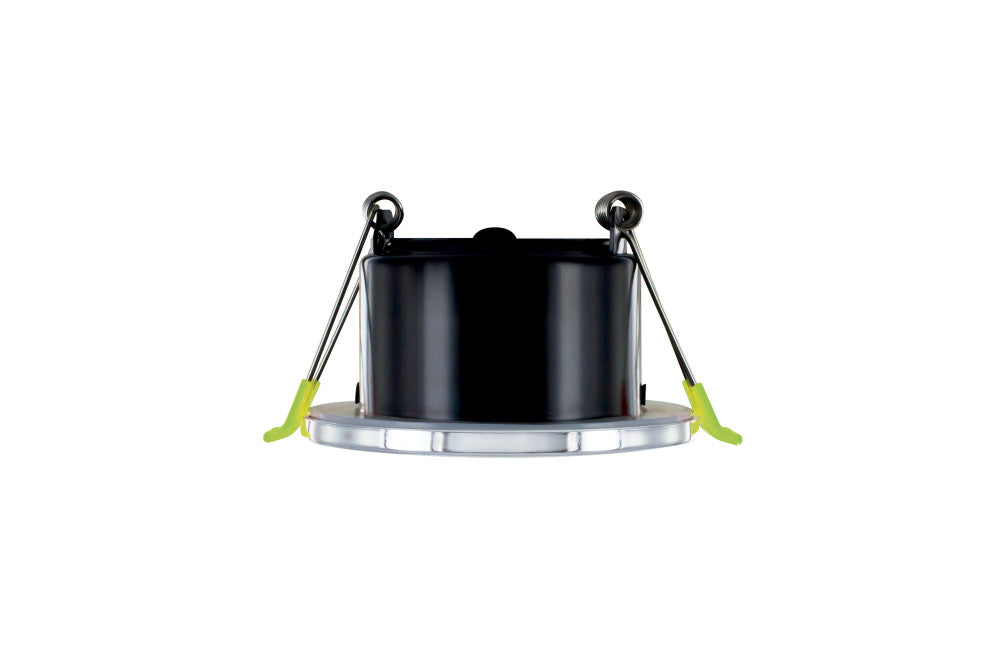

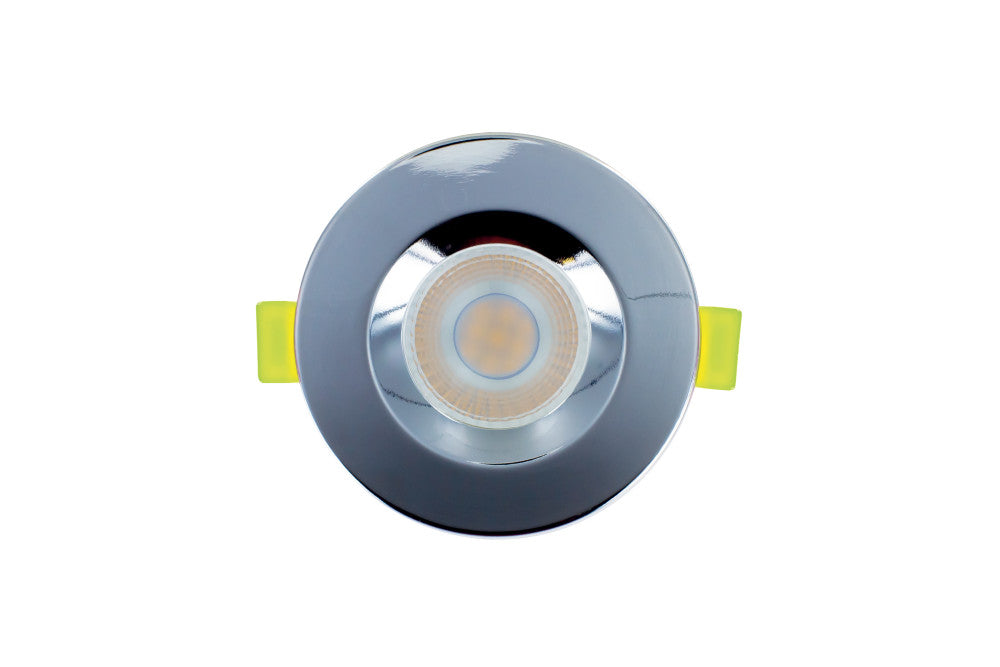

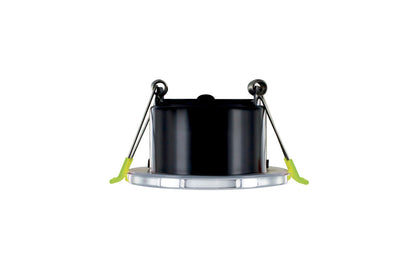

J-SERIES LOW-PROFILE FIRE RATED DOWNLIGHT 68MM CUTOUT IP65 800LM 8W 3000K 55 BEAM DIMMABLE 100LM/W POLISHED CHROME INTEGRAL - ILDLFR68J009

J-SERIES LOW-PROFILE FIRE RATED DOWNLIGHT 68MM CUTOUT IP65 800LM 8W 3000K 55 BEAM DIMMABLE 100LM/W POLISHED CHROME INTEGRAL - ILDLFR68J009

£3.81 exc. VAT
exc. VAT
exc. VAT
 £3.81

£4.57 inc. VAT
Sale Sold out
Shipping calculated at checkout.

J-Series is a new range of low-profile, high-quality fire-rated downlights with an attractive appearance that offers excellent value and efficiency (100 lm/W). Complete with an easy to install dimmable driver. Ideal for tight spaces in commercial and domestic areas.Easy to install loop-in/loop-out dimmable driver.IP65 – water-resistant – ideal for bathrooms and kitchens.Air Tightness Compliant with Part C, and Part L, Resistance to Sound Compliant with Part E.

Product Feature 1:
100lm/W
Product Feature 2:
630 Useful Lumens (800 Total Lumens)
Product Feature 3:
Low profile - 47mm
Product Feature 4:
Dimmable
Product Feature 5:
Warm White
Product Feature 6:
3000K
Product Feature 7:
IP65
Product Feature 8:
Polished Chrome Finish
  • Quick Order Code: 263543
  • Barcode: 5055788256168
  • Category: Downlights
  • Range Name: J-Series
  • Product Body Finish: Polished Chrome
  • Market Segment: Commercial indoor, Residential indoor
  • Fixed/Tiltable: Fixed
  • Warranty (Years): 3
  • Emergency Option: No
  • Product Depth (mm): 47
  • Product Width (mm): 85
  • Product Weight (g): 170
  • Diameter (mm): 85
  • Material: Steel, Glass
  • Overall diameter (mm): 85
  • Construction: Pressed Steel, Glass
  • Cut Out Diameter (mm): 68
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Spot Type: SMD
  • Lumen output: 800
  • Energy Efficiency Label (Image): ILDLFR68J009_EU_label
  • Luminous Flux in Lumens (lm): 800
  • Luminous efficacy (lm/W): 100
  • Correlated Colour Temperature (CCT) (K): 3000
  • Colour Temperature: 3000K - Warm White
  • Colour Temperature Name: Warm White
  • Beam Angle: 55
  • Colour Rendering Index (CRI): 80
  • Compatible Dimmers: Varilight JQP401W
  • Fire Rating (mins): 30, 60, 90
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • Integrated Light Source: Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 25000
  • Switching Cycles: 12500
  • Useful Lumens (lm): 630
  • Power Consumption (W): 8
  • Voltage Range (v): 220-240
  • Amperage (mA): 85
  • Dimming: Dimmable with compatible dimmers
  • Driver Included: Yes
  • Electric Current: AC
  • Insulation Guard: No
  • EN: Yes
  • LVD Certified: Yes
  • EN: Yes
  • LVD Certified: Yes
  • New Energy Rating: F
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Back/Recessed side): 20
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
