Integral LED

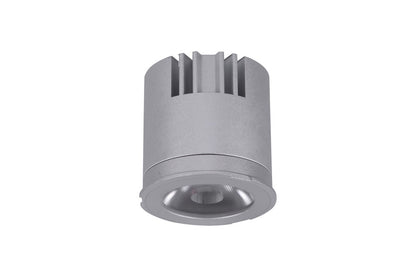

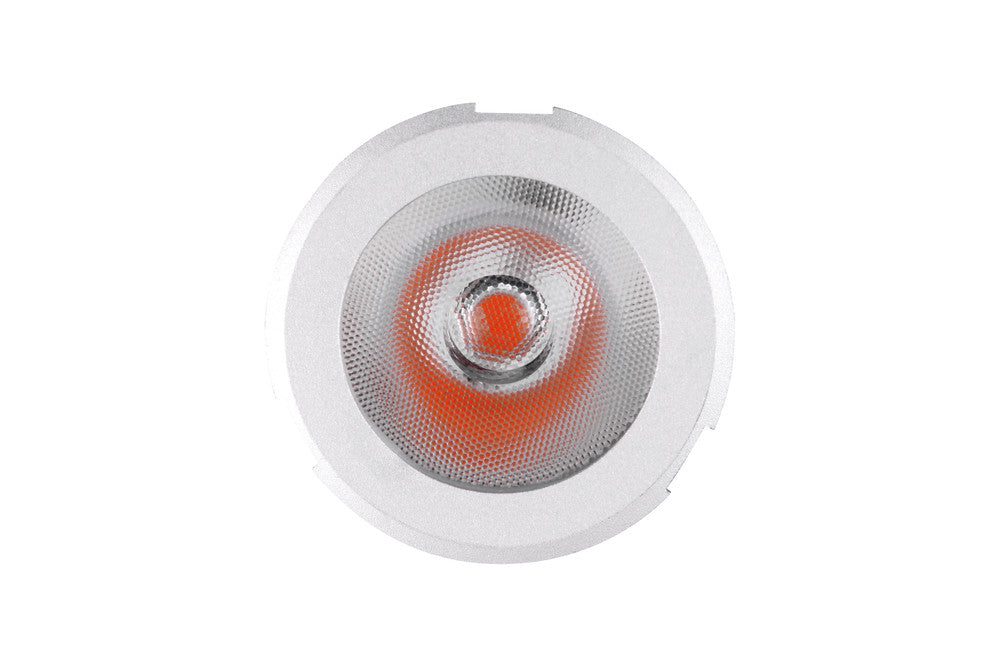

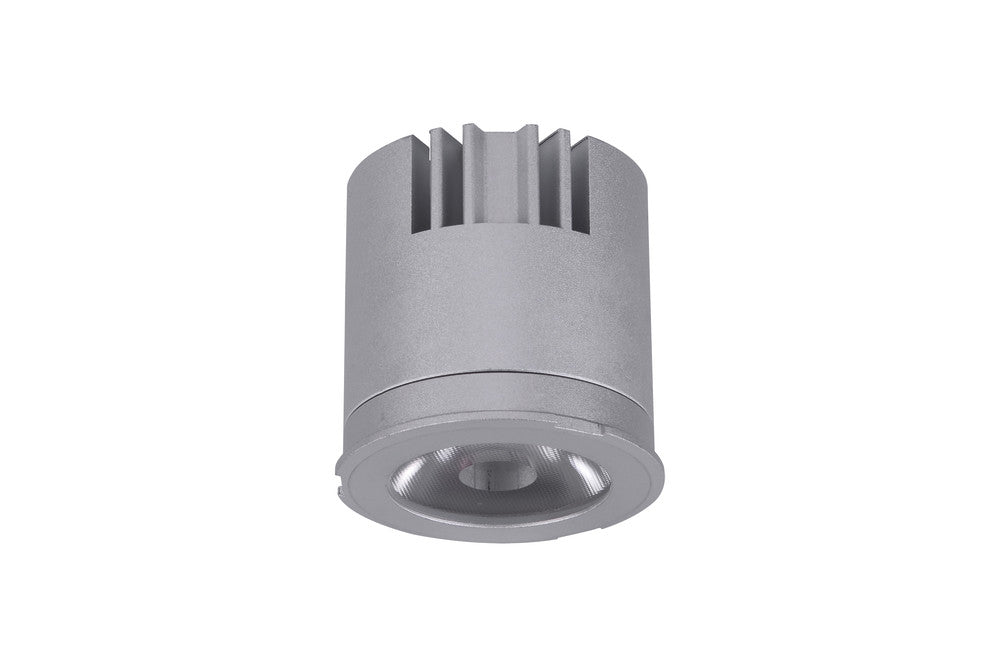

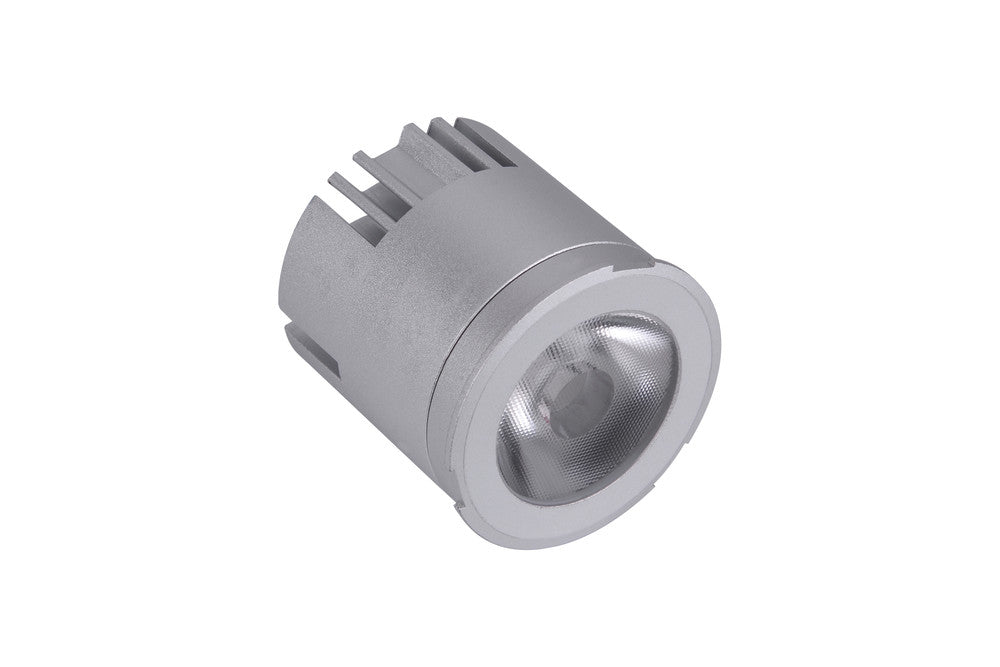

LED LIGHT MODULE 950LM 11W 86LM/W 3000K CRI90 36 BEAM IP54 36VDC 250MA WITHOUT DRIVER - ILMDD005

LED LIGHT MODULE 950LM 11W 86LM/W 3000K CRI90 36 BEAM IP54 36VDC 250MA WITHOUT DRIVER - ILMDD005

£19.09 exc. VAT
exc. VAT
exc. VAT
 £19.09

£22.91 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral’s AccentPlus light modules are the perfect solution for GU10/MR16 compatible downlight projects that require punchy light output or specific dimming integration such as Dali, 0-10V, TRIAC or push dim (see suggested products below for driver options).The modules are CRI90 giving real colour and have a range of beam angle accessories providing solutions for specific lighting designs.

Product Feature 1:
Warm Light
Product Feature 2:
Dimmable with compatible driver
Product Feature 3:
950 lumens
  • Quick Order Code: 403141
  • Barcode: 5055788268383
  • Category: Downlights
  • Range Name: AccentPlus
  • Market Segment: Accent lighting
  • Warranty (Years): 3
  • Product Length (mm): 50
  • Product Depth (mm): 50
  • Product Width (mm): 50
  • Product Weight (g): 230
  • Material: Aluminium
  • Construction: Aluminium
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Spot Type: COB
  • Energy Efficiency Label (Image): ILMDD005_EU_label
  • Luminous Flux in Lumens (lm): 950
  • Luminous efficacy (lm/W): 90
  • Correlated Colour Temperature (CCT) (K): 3000
  • Colour Temperature: 3000K - Warm White
  • Colour Temperature Name: Warm White
  • Beam Angle: 36
  • Colour Rendering Index (CRI): 90
  • Colour Type: Single
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • Integrated Light Source: Yes
  • LED Type: Chip on board (COB)
  • Lifetime (hours): 50000
  • Power Consumption (W): 10.5
  • Voltage (V): 36
  • Amperage (mA): 250
  • Dimming: Dimmable with dimmable drivers and compatible dimmers
  • Driver Included: No
  • Electric Current: DC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: F
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP54
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
