Integral LED

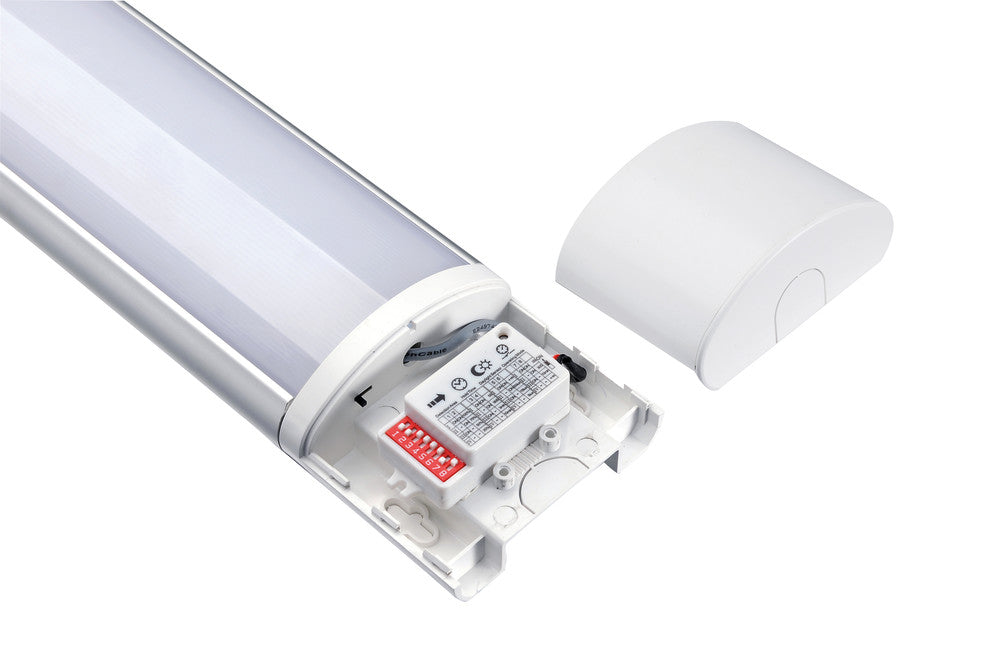

LIGHTSPAN SLIM II 4FT 40W 3000K4000K/6000K 120 BEAM 120LM/W NON-DIMM INTEGRAL EMERGENCY / SENSOR - ILBTF112

LIGHTSPAN SLIM II 4FT 40W 3000K4000K/6000K 120 BEAM 120LM/W NON-DIMM INTEGRAL EMERGENCY / SENSOR - ILBTF112

£70.98 exc. VAT
exc. VAT
exc. VAT
 £70.98

£85.18 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Lightspan Slim II is a range of low profile compact LED battens with a more decorative and elegant design, suitable for many applications from commercial to industrial. They can be surface or suspended mounted and feature a brushed aluminium housing. CCT, power switching, 3hr emergency and motion sensor options available.

Product Feature 1:
4800lm
Product Feature 2:
50000hrs
Product Feature 3:
120lm/w
Product Feature 4:
Slim Low Profile Design
Product Feature 5:
3hr Emergency and Microwave Sensor
Product Feature 6:
IP40
Product Feature 7:
IK10
  • Quick Order Code: '092609
  • Barcode: 5055788267638
  • Category: Luminaires
  • Range Name: Lightspan Slim II
  • Product Type: Battens
  • Product Body Finish: Matt white
  • Market Segment: Indoor commercial, Industrial, residential
  • Features: Emergency Function, Microwave Sensor
  • Warranty (Years): 5
  • Emergency Option: Integrated
  • Size (in ft): 4ft
  • Linkable: Yes
  • Product Length (mm): 1190
  • Product Depth (mm): 36
  • Product Width (mm): 80
  • Product Weight (g): 880
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Construction: Aluminium extrusion body, PC injection moulding diffuser and end caps
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Ceiling mounted
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILBTF112_EU_label
  • Luminous Flux in Lumens (lm): 4800
  • Correlated Colour Temperature (CCT) (K): 3000/4000/6000
  • Colour Temperature Name: Warm White/Cool White/Cool Daylight
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 25000
  • Power Consumption (W): 40
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK10
  • IP Rating (Ingress Protection): IP40
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
