Integral LED

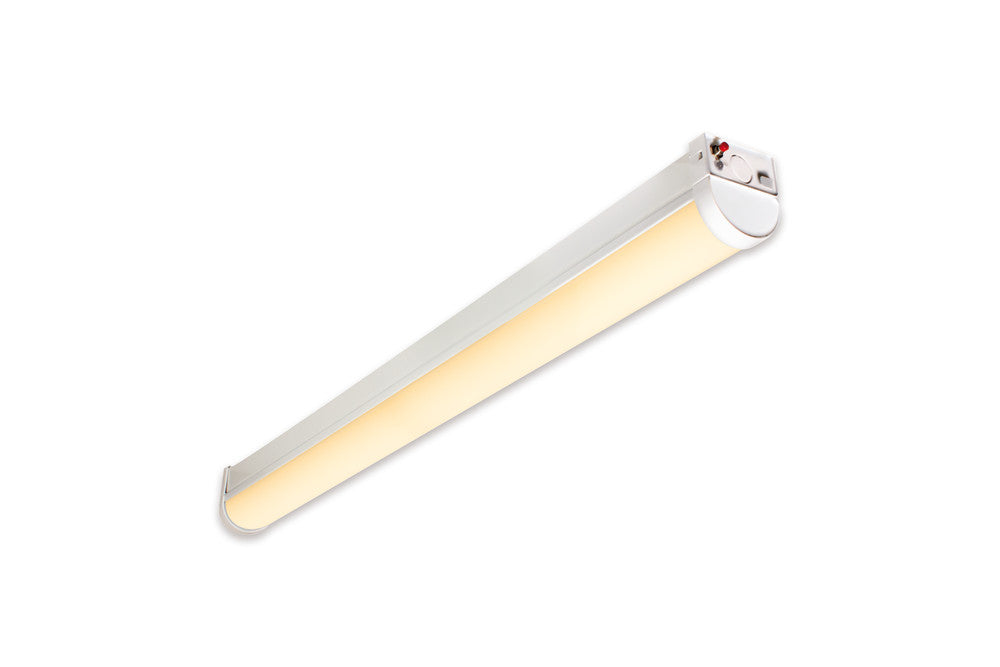

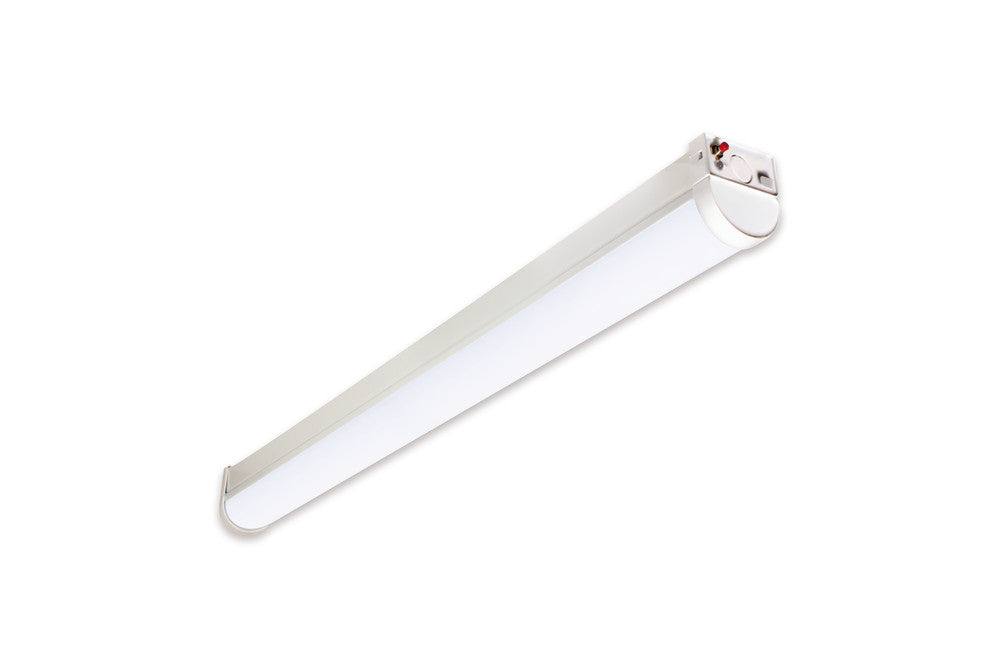

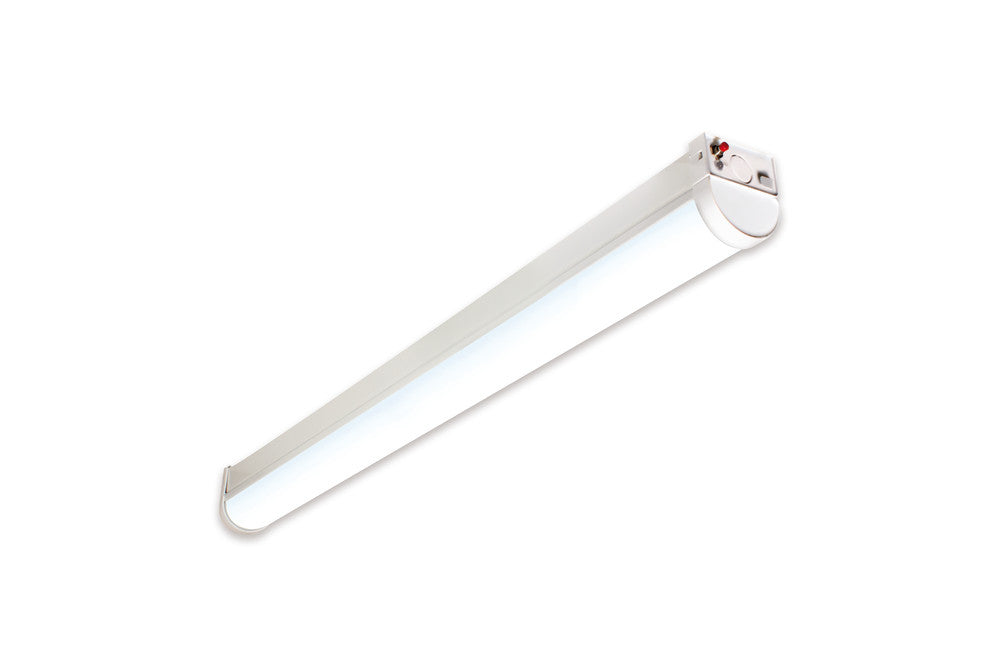

LIGHTSPAN+ T8 BATTEN 4FT EM3HR POWER & CCT ADJUSTABLE - 22/27/34/40W 3000/4000/6300K 2970-5800LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL - ILBTC121

LIGHTSPAN+ T8 BATTEN 4FT EM3HR POWER & CCT ADJUSTABLE - 22/27/34/40W 3000/4000/6300K 2970-5800LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL - ILBTC121

£35.42 exc. VAT
exc. VAT
exc. VAT
 £35.42

£42.50 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral Lightspan+ battens provide an exceptionally efficient alternative to equivalent fluorescent fixtures. With switchable Power & CCT, they are ideal for indoor commercial, industrial and retail spaces that need different colour temperature and lumen output to suit the activity. With an efficacy of up to 145lm/W, Lightspan+ battens offer huge energy savings compared to equivalent fluorescent lighting.

Product Feature 1:
22W: 2970/3300/2970 27W: 3510/3920/3510 34W: 4420/4930/4420 40W: 5200/5800/5200 lm
Product Feature 2:
50000hrs
Product Feature 3:
145lm/W
Product Feature 4:
Power & CCT Switchable
Product Feature 5:
3hr emergency
Product Feature 6:
IP20
Product Feature 7:
IK08
  • Quick Order Code: '083462
  • Barcode: 5055788261049
  • Category: Luminaires
  • Range Name: Lightspan+
  • Type: Single / Twin
  • Product Body Finish: Matt white
  • Market Segment: Indoor commercial, Industrial, residential
  • Features: Power & CCT Swtichable
  • Warranty (Years): 5
  • Size (in ft): 4ft
  • Linkable: Yes
  • Product Length (mm): 1170
  • Product Depth (mm): 71
  • Product Width (mm): 60
  • Product Weight (g): 1900
  • Optic: Polycarbonate diffuser
  • Material: Steel, Polycarbonate
  • Construction: Folded Mild Steel and Polycarbonate diffuser
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Ceiling mounted
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILBTC121_EU_label
  • Luminous Flux in Lumens (lm): 22W
  • Correlated Colour Temperature (CCT) (K): 3000/4000/6300
  • Colour Temperature: 3000/4000/6300 - Warm White/Cool White/Cool Daylight
  • Colour Temperature Name: Warm White/Cool White/Cool Daylight
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 25000
  • Power Consumption (W): 22/27/34/40
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • CE RoHS: Yes
  • New Energy Rating: D
