Integral LED

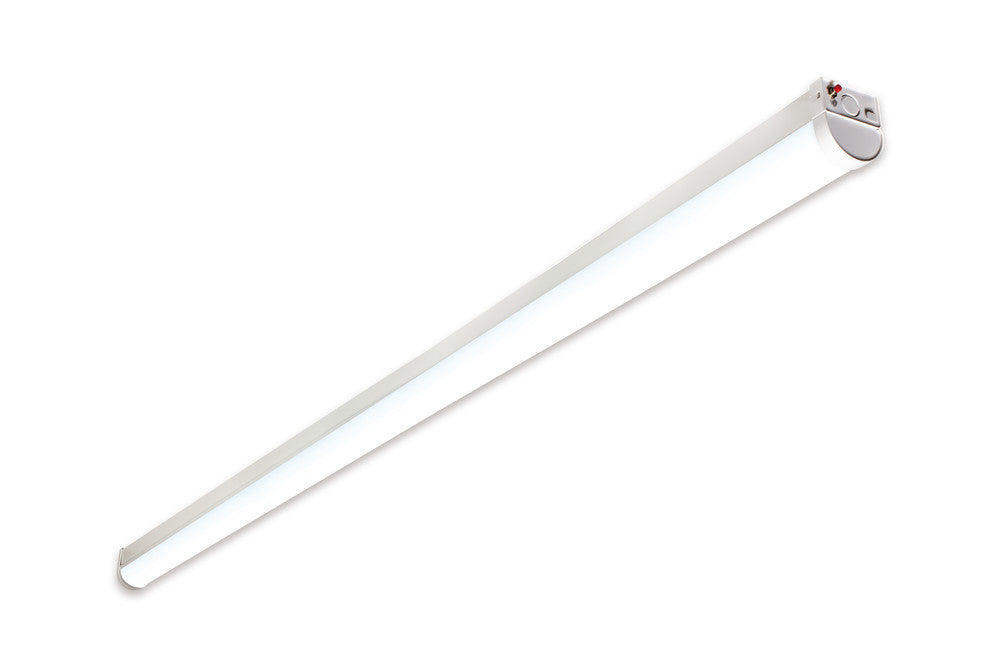

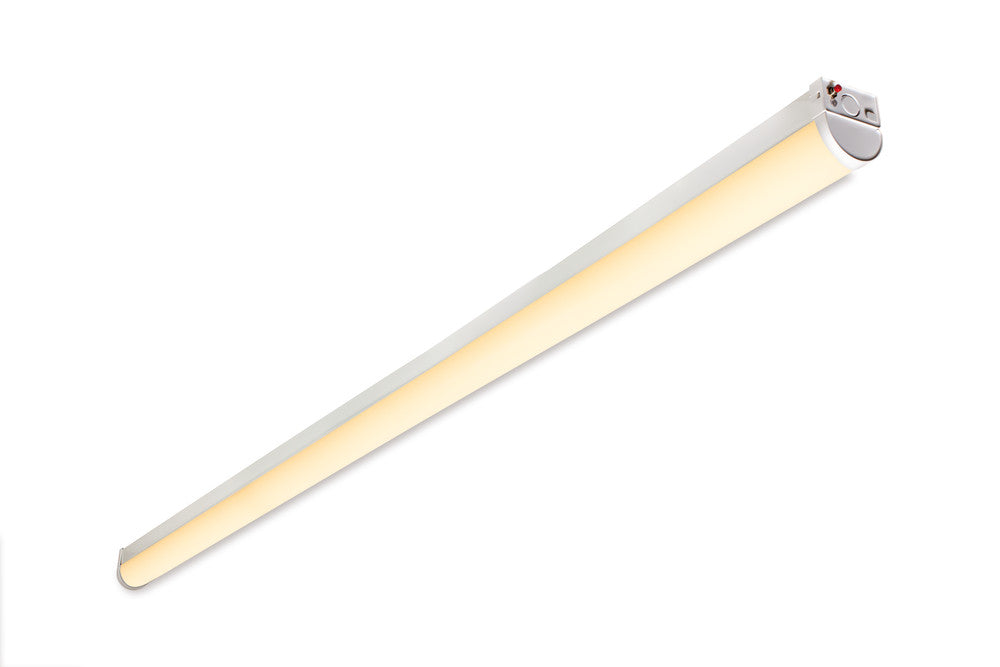

LIGHTSPAN+ T8 BATTEN 6FT EM3HR POWER & CCT ADJUSTABLE - 36/42/50/63W 3000/4000/6300K 4860-9130LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL - ILBTC141

LIGHTSPAN+ T8 BATTEN 6FT EM3HR POWER & CCT ADJUSTABLE - 36/42/50/63W 3000/4000/6300K 4860-9130LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL - ILBTC141

£51.47 exc. VAT
exc. VAT
exc. VAT
 £51.47

£61.76 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral Lightspan+ battens provide an exceptionally efficient alternative to equivalent fluorescent fixtures. With switchable Power & CCT, they are ideal for indoor commercial, industrial and retail spaces that need different colour temperature and lumen output to suit the activity. With an efficacy of up to 145lm/W, Lightspan+ battens offer huge energy savings compared to equivalent fluorescent lighting.

Product Feature 1:
36W: 4860/5400/4860 42W: 5460/6090/5460 50W: 6500/7250/6500 63W: 8190/9130/8190 lm
Product Feature 2:
50000hrs
Product Feature 3:
145lm/W
Product Feature 4:
Power & CCT Switchable
Product Feature 5:
3hr emergency
Product Feature 6:
IP20
Product Feature 7:
IK08
  • Quick Order Code: 586242
  • Barcode: 5055788261087
  • Category: Luminaires
  • Range Name: Lightspan+
  • Type: Single / Twin
  • Product Body Finish: Matt white
  • Market Segment: Indoor commercial, Industrial, residential
  • Features: Power & CCT Swtichable
  • Warranty (Years): 5
  • Size (in ft): 6ft
  • Linkable: Yes
  • Product Length (mm): 1734
  • Product Depth (mm): 71
  • Product Width (mm): 60
  • Product Weight (g): 2600
  • Optic: Polycarbonate diffuser
  • Material: Steel, Polycarbonate
  • Construction: Folded Mild Steel and Polycarbonate diffuser
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Ceiling mounted
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILBTC141_EU_label
  • Luminous Flux in Lumens (lm): 36W
  • Correlated Colour Temperature (CCT) (K): 3000/4000/6300
  • Colour Temperature: 3000/4000/6300 - Warm White/Cool White/Cool Daylight
  • Colour Temperature Name: Warm White/Cool White/Cool Daylight
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 25000
  • Power Consumption (W): 36/42/50/63
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Input Voltage (V): 200-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: D
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK08
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
