Integral LED

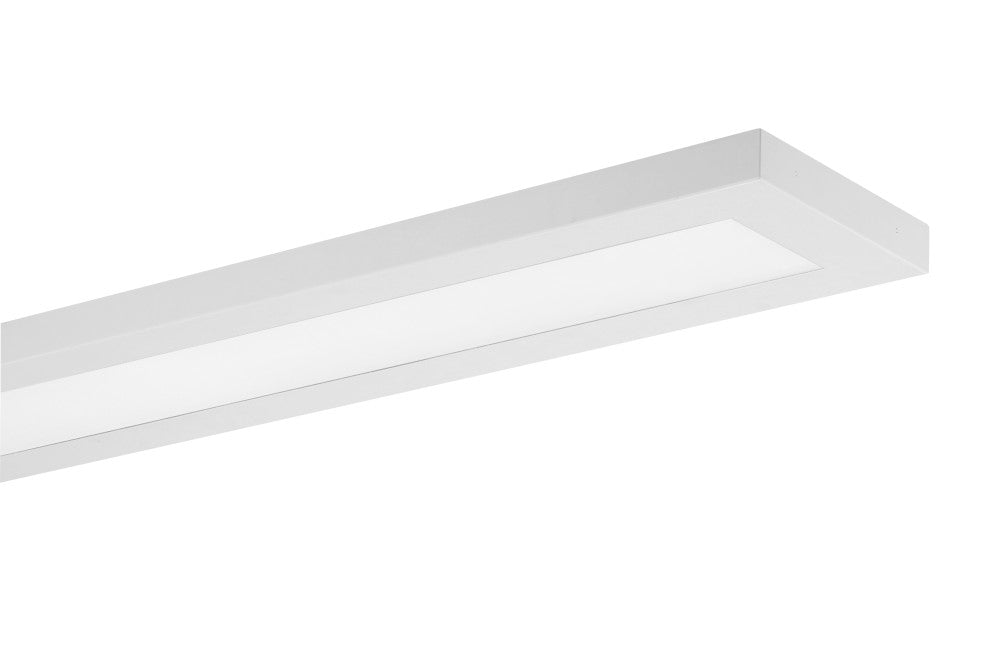

LINEAL SUSPENDED OFFICE DIRECT/INDIRECT 4FT EMERGENCY WATTAGE SWITCHABLE 22W/38W CCT SWITCHABLE 3000K/4000K/5000K 90º 110lm/w NON-DIMM WHITE - ILSOA011

LINEAL SUSPENDED OFFICE DIRECT/INDIRECT 4FT EMERGENCY WATTAGE SWITCHABLE 22W/38W CCT SWITCHABLE 3000K/4000K/5000K 90º 110lm/w NON-DIMM WHITE - ILSOA011

£104.78 exc. VAT
exc. VAT
exc. VAT
 £104.78

£125.74 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Lineal is a new range of highly efficient luminaires that offer a performance solution for surface and suspended linear fittings. This wide range includes options to deliver the optimal lighting performance, dimming option, emergency function, appearance and colour finish.The flexibility offered means the Lineal Fittings will meet multiple requirements making it ideal for schools, colleges, hospitals, offices, retail areas and general applications.With a strong, slimline design, linkable option and installation accessories included (surface, BESA and suspension kits), this is a comprehensive range that can enrich your projects.

Product Feature 1:
Power & CCT Switchable
Product Feature 2:
2350-2450lm and 2900-4150lm
Product Feature 3:
Up and down light output
Product Feature 4:
110lm/W
Product Feature 5:
Integrated Emergency Function
Product Feature 6:
5 Year Warranty
  • Quick Order Code: 442353
  • Barcode: 5055788275275
  • Category: Luminaires
  • Range Name: Lineal
  • Product Type: Battens
  • Product Body Finish: RAL9003
  • Market Segment: Commercial indoor
  • Finish: White
  • Features: Power & CCT Switchable, Integrated Emergency Function
  • Warranty (Years): 5
  • Emergency Option: Integrated
  • Size (in ft): 4ft
  • Linkable: Yes
  • Product Length (mm): 1274
  • Product Depth (mm): 37
  • Product Width (mm): 228
  • Product Weight (g): 4200
  • Optic: Opal diffuser
  • Material: Steel
  • Bulb or Luminaire Shape: Linear
  • Luminaire Fixing: Suspended
  • Mounting Type: Rear Cable & Side conduit Entry
  • Placement / Application: Indoor, General Lighting
  • Luminous Flux in Lumens (lm): 2350-2450lm and 2900-4150lm
  • Luminous efficacy (lm/W): 110
  • Correlated Colour Temperature (CCT) (K): 3000-4000-5000
  • Colour Temperature: 3000/4000/5000 - Warm White/Cool White/Daylight
  • Colour Temperature Name: CCT Switchable
  • Beam Angle: 90
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 30000
  • Power Consumption (W): 22/38
  • Power Factor: 0.9
  • Amperage (mA): 350
  • Input Voltage (V): 220-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN60598
  • LVD Certified: Yes
  • EN: EN60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
