Integral LED

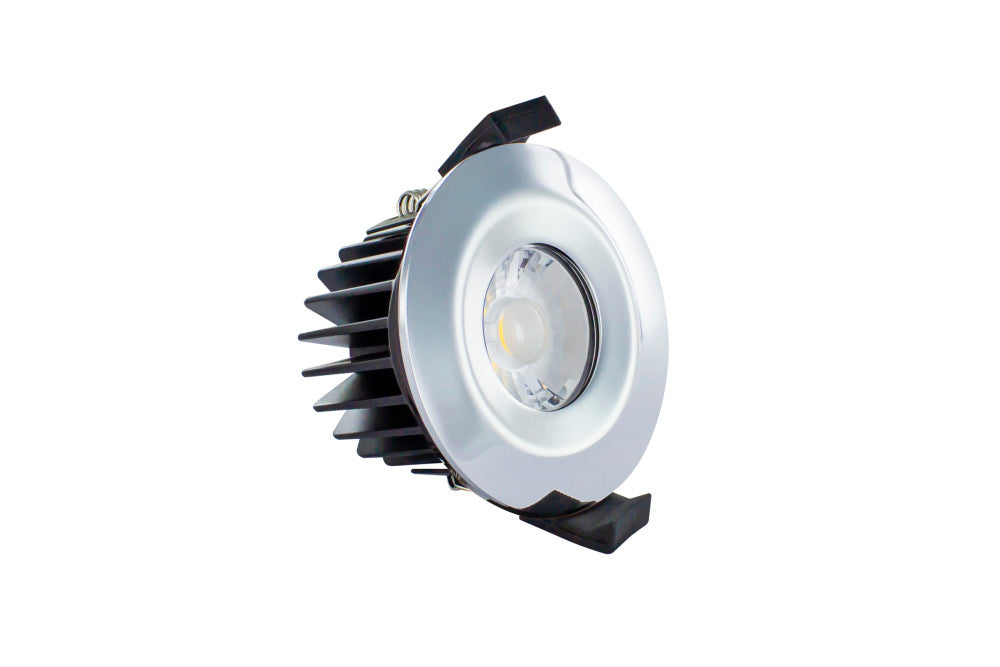

LOW-PROFILE FIRE RATED DOWNLIGHT 70-75MM CUTOUT IP65 430LM 6W 3000K 38 BEAM DIMMABLE 72LM/W POLISHED CHROME INTEGRAL - ILDLFR70B008

LOW-PROFILE FIRE RATED DOWNLIGHT 70-75MM CUTOUT IP65 430LM 6W 3000K 38 BEAM DIMMABLE 72LM/W POLISHED CHROME INTEGRAL - ILDLFR70B008

£11.17 exc. VAT
exc. VAT
exc. VAT
 £11.17

£13.40 inc. VAT
Sale Sold out
Shipping calculated at checkout.

These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.

Product Feature 1:
Warm white
Product Feature 2:
430 Lumens
Product Feature 3:
Dimmable
Product Feature 4:
Low-profile body
Product Feature 5:
Supplied with polished chrome bezel
  • Quick Order Code: 261344
  • Barcode: 5055788225096
  • Category: Downlights
  • Range Name: Low-profile
  • Product Type: Fire Rated
  • Product Body Finish: Polished Chrome
  • Market Segment: Commercial indoor, Residential indoor
  • Finish: Polished Chrome
  • Fixed/Tiltable: Fixed
  • Warranty (Years): 3
  • Emergency Option: Optional Conversion Kit
  • Emergency Category: Downlights
  • Product Length (mm): 58
  • Product Weight (g): 280
  • Diameter (mm): 85
  • Optic: Clear Refractor
  • Material: Aluminium alloy, Iron, Steel
  • Overall diameter (mm): 85

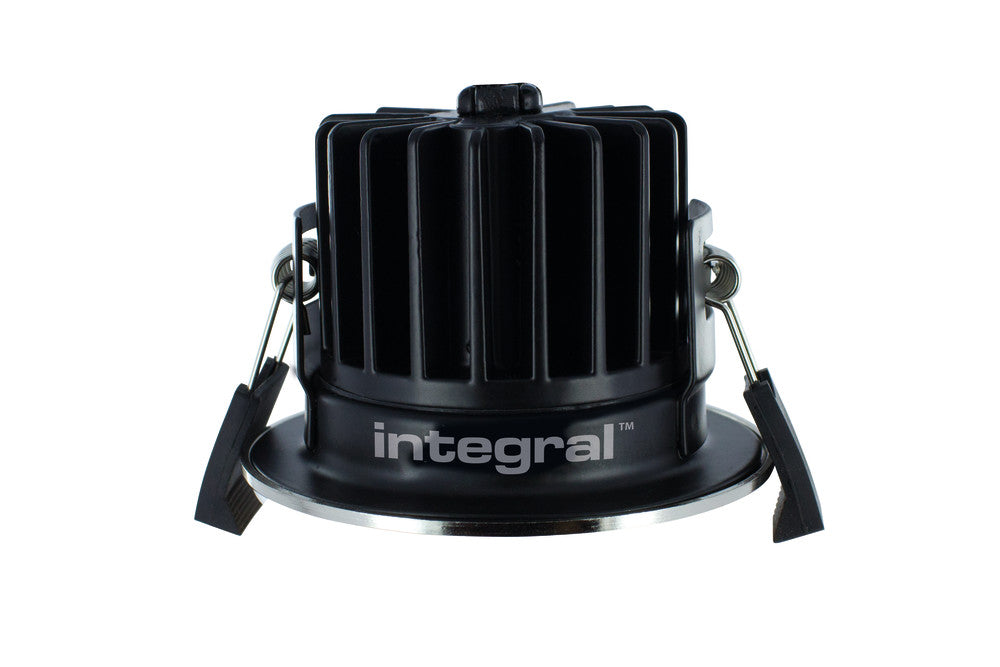

  • Construction: Extruded Aluminium heat-sink, Iron body, Steel springs and mounting plate
  • Cut Out Diameter (mm): 70-75
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Spot Type: COB
  • Energy Efficiency Label (Image): ILDLFR70B008_EU_label
  • Luminous Flux in Lumens (lm): 430
  • Luminous efficacy (lm/W): 72
  • Correlated Colour Temperature (CCT) (K): 3000
  • Colour Temperature: 3000K - Warm White
  • Colour Temperature Name: Warm White
  • Beam Angle: 38
  • Colour Rendering Index (CRI): 80
  • Compatible Dimmers: Varilight JQP401W
  • Fire Rating (mins): 30, 60, 90
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Chip on board (COB)
  • Lifetime (hours): 25000
  • Switching Cycles: 12500
  • Power (W): 6
  • Power Consumption (W): 6
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 40
  • Amperage (mA): 300
  • Dimming: Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: F
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
  • Installation Guide: https
