Integral LED

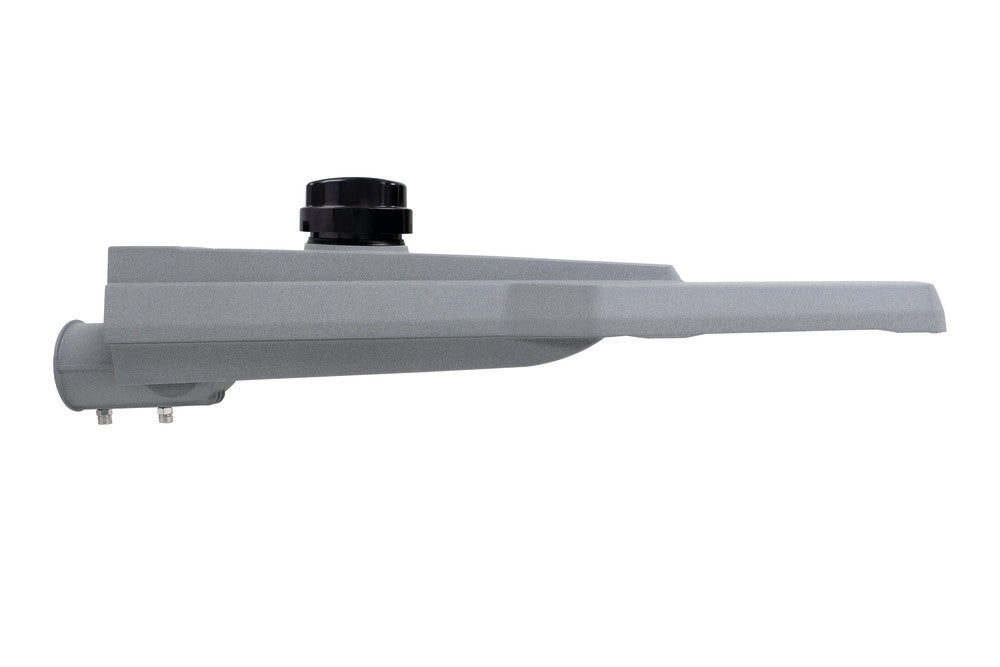

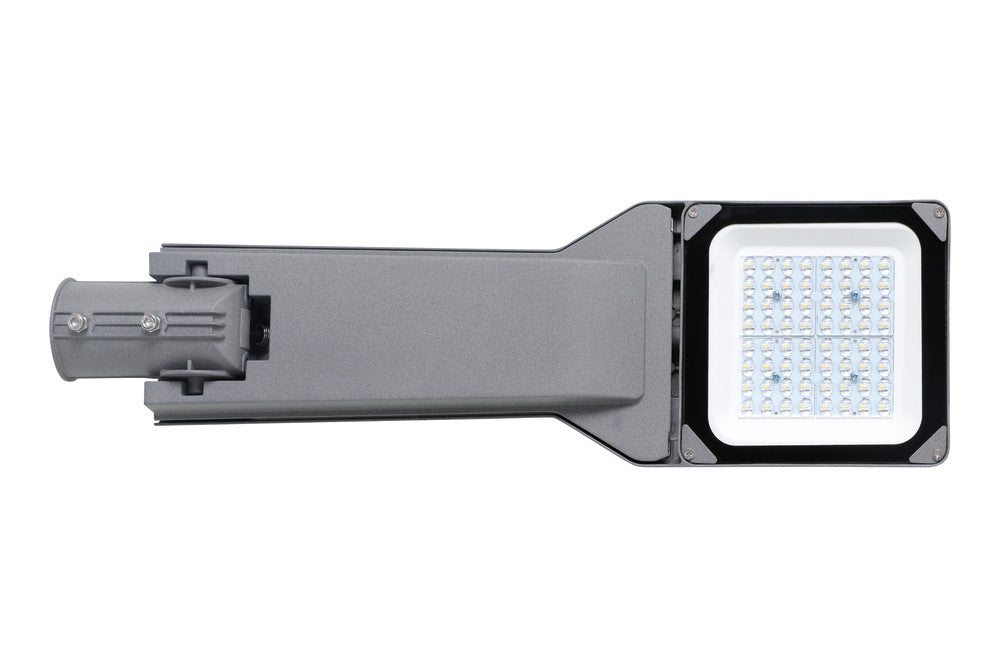

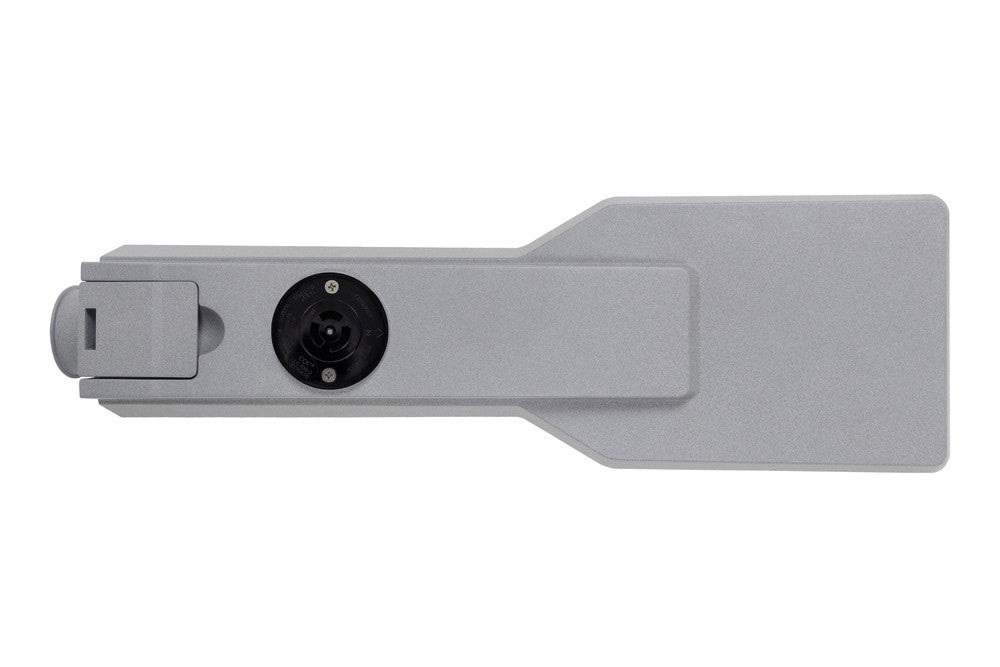

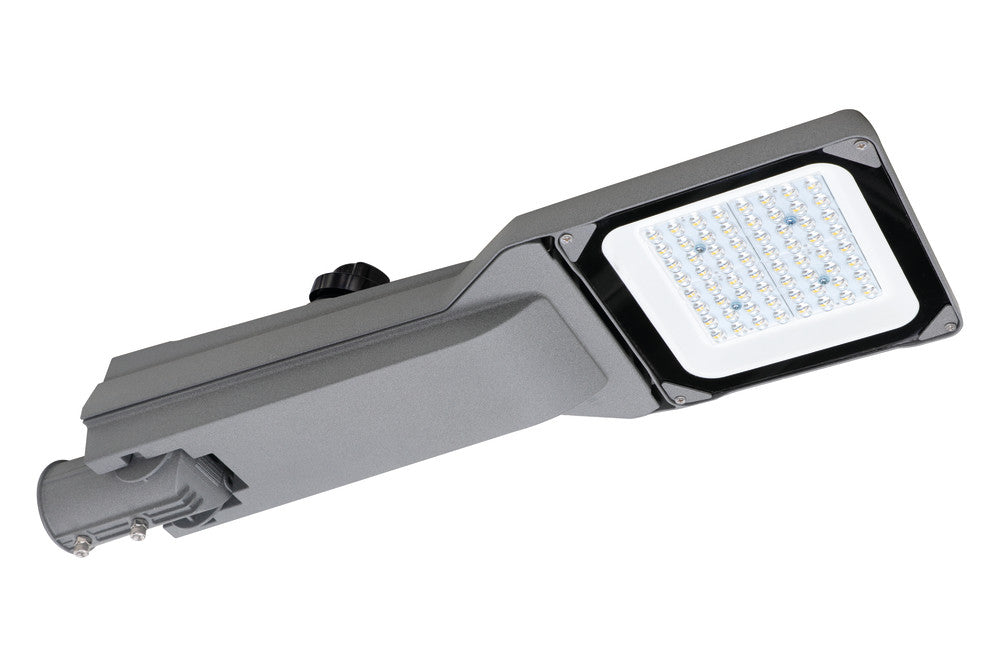

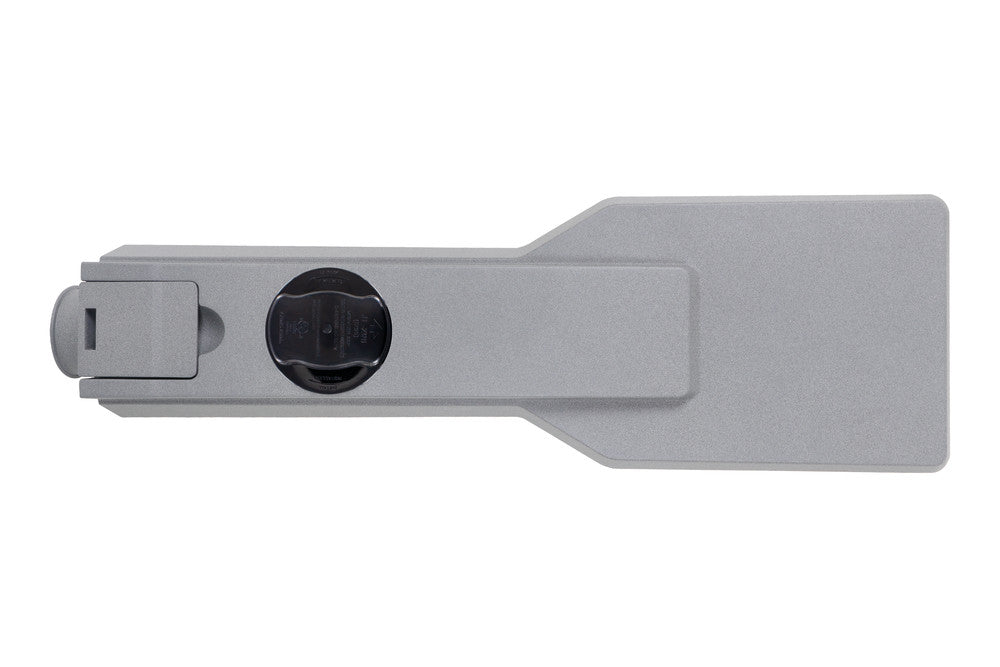

MATRIX MINI STREET LIGHT 4650LM 30W 4000K OPTIC-T2M IP66 34 TO 48MM DIA SPIGOT CLAMP NFC IK09 NEMA3 WITH CAP & AUTO-DISCONNECT RAL7037 - ILSLB001

MATRIX MINI STREET LIGHT 4650LM 30W 4000K OPTIC-T2M IP66 34 TO 48MM DIA SPIGOT CLAMP NFC IK09 NEMA3 WITH CAP & AUTO-DISCONNECT RAL7037 - ILSLB001

£117.16 exc. VAT
exc. VAT
exc. VAT
 £117.16

£140.59 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Product Feature 1:
Compact LED design
Product Feature 2:
Tough aluminium body tempered glass and marine grade fixings
Product Feature 3:
Ultra efficient LED latern for street lighting and car parks
Product Feature 4:
Field programmable driver using NFC
Product Feature 5:
3 pin NEMA Socket
Product Feature 6:
Thermally Optimised
Product Feature 7:
Contact us for columns and accessories
Product Feature 8:
Settable tilt angles From 10 to +15
  • Quick Order Code: 400961
  • Barcode: 5055788266051
  • Category: Luminaires
  • Range Name: Matrix
  • Product Body Finish: Grey
  • Market Segment: Commercial and Outdoor
  • Warranty (Years): 5
  • Product Length (mm): 517
  • Product Depth (mm): 110
  • Product Width (mm): 166
  • Product Weight (g): 3200
  • Material: Aluminium, Tempered Glass
  • Construction: Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver
  • Bulb or Luminaire Shape: Rectangle
  • Luminaire Fixing: Bracket for Wall & Pole Mounting
  • Placement / Application: Outdoor
  • Beam Type: Asymmetrical
  • Luminous Flux in Lumens (lm): 4650
  • Luminous efficacy (lm/W): 155
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: T2-M
  • Colour Rendering Index (CRI): 70
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 100000
  • Sensor / Overide: No
  • Switching Cycles: 100000
  • Power Consumption (W): 30
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Dimming: DALI2
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK09
  • IP Rating (Back/Recessed side): IP66
  • IP Rating (Ingress Protection): IP66
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 55
View full details
