Integral LED

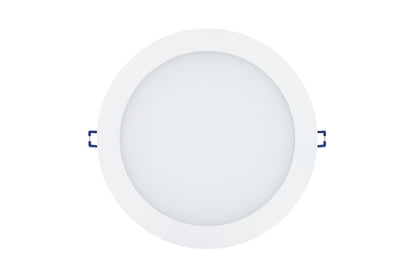

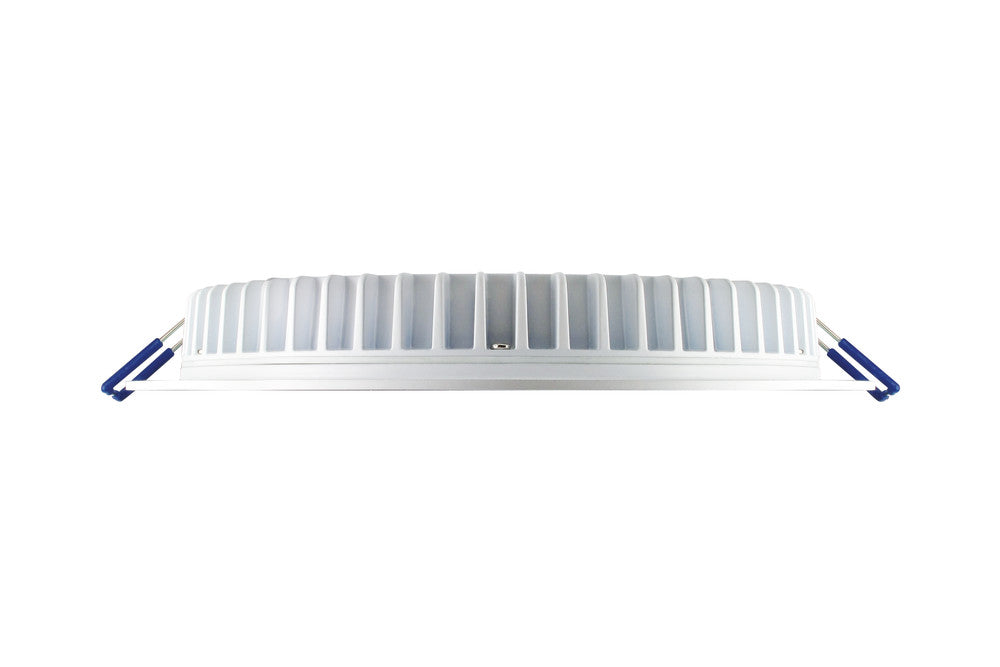

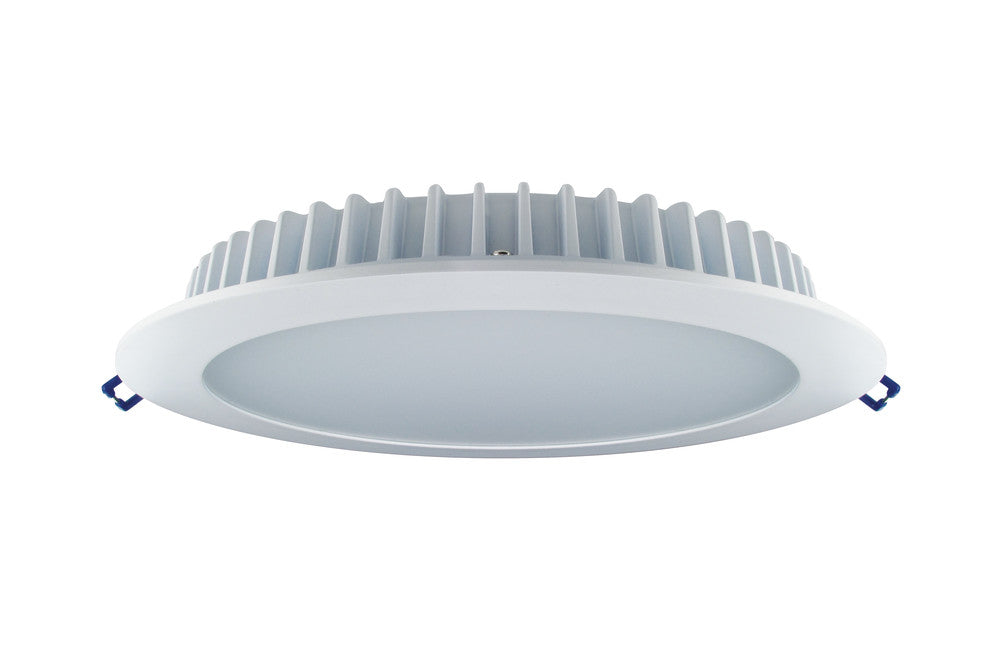

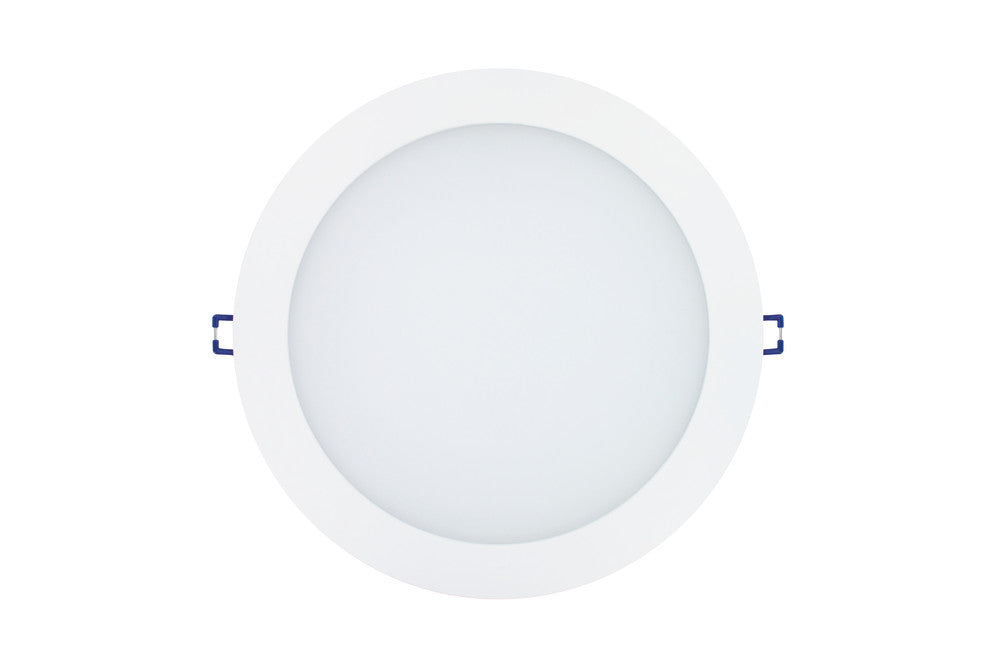

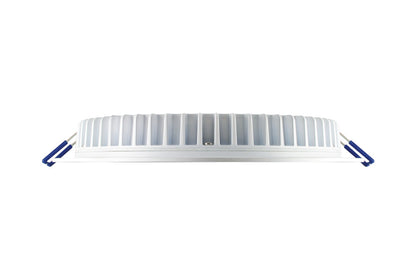

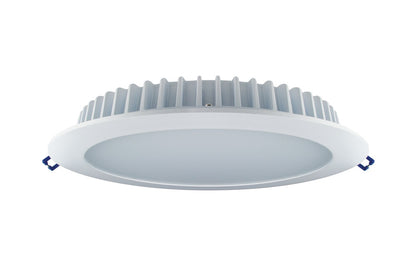

PERFORMANCE+ DOWNLIGHT 200MM CUTOUT 1050LM 12W 3000K NON-DIMM 88LM/W IP54 WHITE - ILDL200F003
PERFORMANCE+ DOWNLIGHT 200MM CUTOUT 1050LM 12W 3000K NON-DIMM 88LM/W IP54 WHITE - ILDL200F003
Regular price
£9.69
exc. VAT
Regular price
exc. VAT
exc. VAT
Sale price
£9.69
Unit price
/
per
£11.63 inc. VAT
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
The Integral LED 12W Watt Downlight delivers a warm white light and equivalent light output to traditional compact fluorescent. It incorporates a Polycarbonate diffuser and excellent thermal management to ensure a consistent light, long life and minimal maintenance. Ideal for commercial offices and buildings, retail premises and airports.A constant current non dimmable LED Driver is included as standard in this product. All Integral LED drivers and downlights benefit from our simple click and lock connectivity system.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 1050lm
- Product Feature 3:
- Non-Dimmable
- Product Feature 4:
- 88lm/W
- Product Feature 5:
- Part L compliant
Share
Details
Details
- Quick Order Code: 318042
- Barcode: 5055788232728
- Category: Downlights
- Range Name: Performance+
- Product Type: LED Downlights
- Product Body Finish: Matt white
- Market Segment: Commercial indoor
- Warranty (Years): 5
Physical Data
Physical Data
- Emergency Option: Optional Conversion Kit
- Emergency Category: Downlights
- Product Depth (mm): 27
- Product Weight (g): 800
- Diameter (mm): 230
- Optic: Polycarbonate diffuser
- Material: Aluminium, Polycarbonate
- Overall diameter (mm): 230
- Construction: Die cast Aluminium heat-sink and body, Polycarbonate sheet diffuser
- Cut Out Diameter (mm): 200
- Luminaire Fixing: Recess mounted
- Placement / Application: Indoor, General Lighting
Light Data
Light Data
- Luminous Flux in Lumens (lm): 1050
- Luminous efficacy (lm/W): 88
- Peak Intensity (Cd): 408
- Correlated Colour Temperature (CCT) (K): 3000
- Colour Temperature: 3000K - Warm White
- Colour Temperature Name: Warm White
- Beam Angle: 90
- Colour Rendering Index (CRI): 80
- Frequency Range (Hz): 50/60
- Instant on (Less than 1 second): Yes
- LED Size (mm): 4014
- LED Type: Surface mounted device (SMD)
- Lifetime (hours): 35000
- Switching Cycles: 20000
Electrical Data
Electrical Data
- Power (W): 12
- Power Consumption (W): 12
- Power Factor: 0.9
- Voltage Range (v): 220-240
- Wattage equivalent (W): 26
- Dimming: Non-Dimmable
- Driver Included: Yes
- Electric Current: AC
- EN: EN-60598
- LVD Certified: Yes
Environmental
Environmental
- EN: EN-60598
- LVD Certified: Yes
- CE RoHS: Yes
- Hg 0% (Mercury Free): Yes
- IP Rating (Ingress Protection): IP54
- Lowest Operating Temperature (°C): -20
- Maximum Operating Temperature (°C): 40
