Integral LED

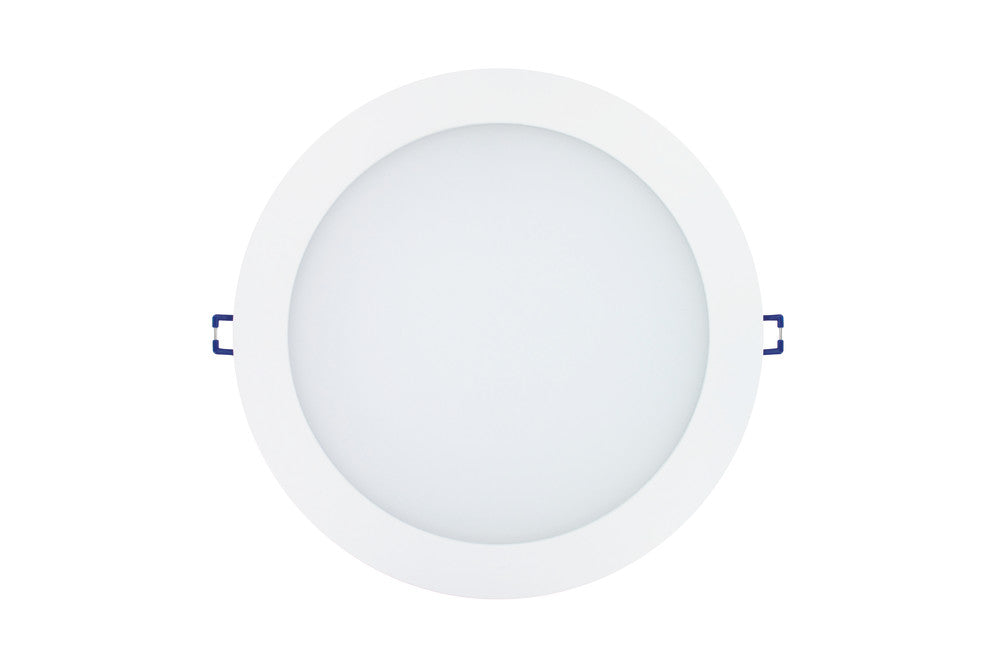

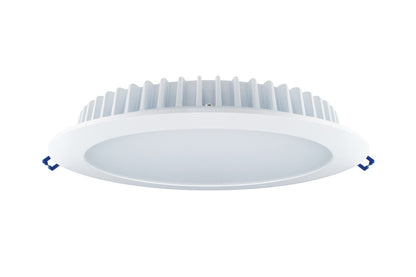

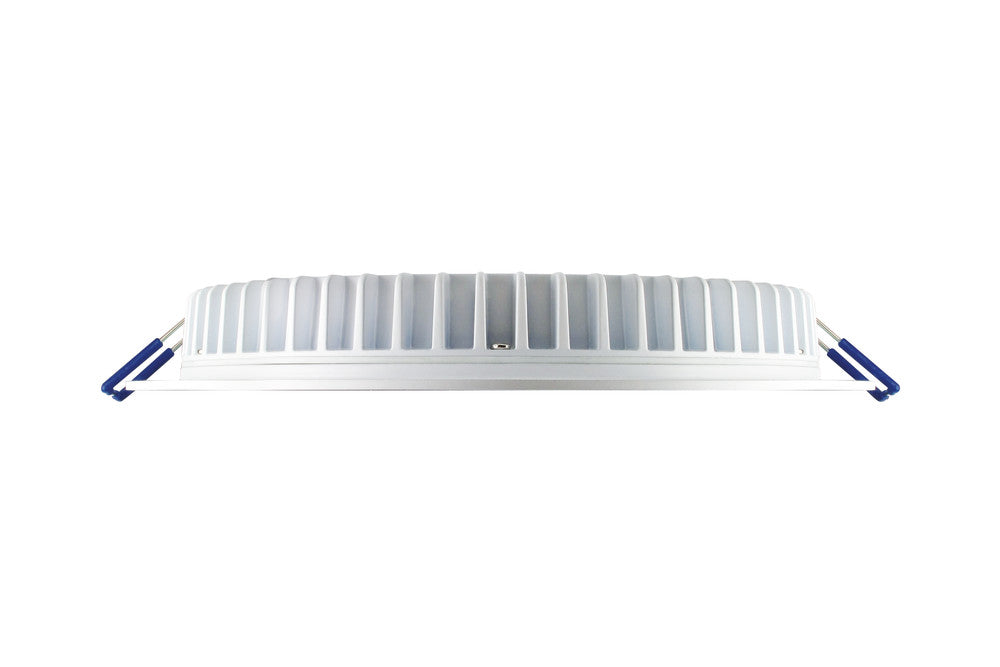

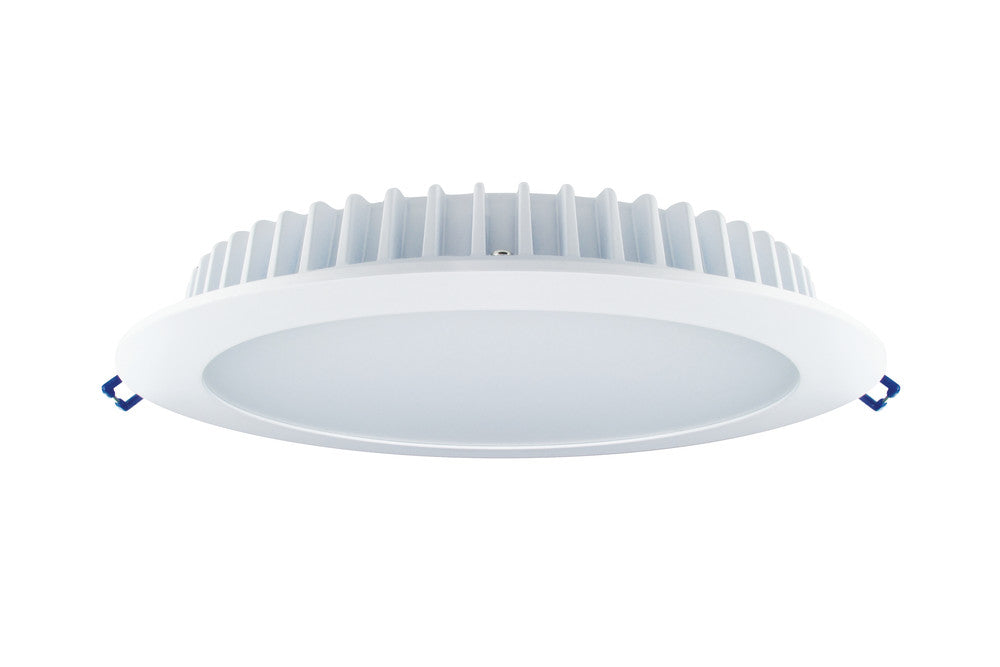

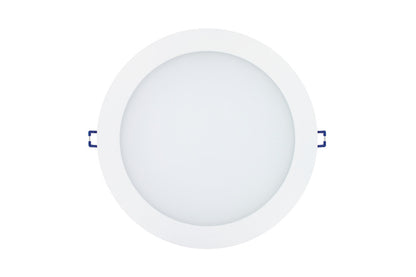

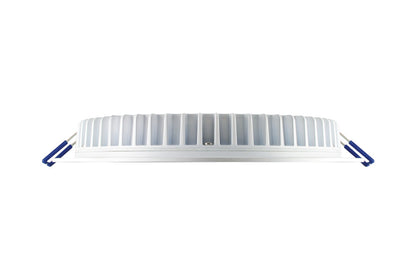

PERFORMANCE+ DOWNLIGHT 95MM CUTOUT 540LM 6W 4000K TRIAC DIMMABLE 90LM/W IP54 WHITE - ILDL95F012

PERFORMANCE+ DOWNLIGHT 95MM CUTOUT 540LM 6W 4000K TRIAC DIMMABLE 90LM/W IP54 WHITE - ILDL95F012

£7.81 exc. VAT
exc. VAT
exc. VAT
 £7.81

£9.37 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral LED 6W Watt Downlight delivers a cool white light and equivalent light output to traditional compact fluorescent. It incorporates a Polycarbonate diffuser and excellent thermal management to ensure a consistent light, long life and minimal maintenance. Ideal for commercial offices and buildings, retail premises and airports.A constant current dimmable LED Driver is included as standard in this product. All Integral LED drivers and downlights benefit from our simple click and lock connectivity system.

Product Feature 1:
Cool White
Product Feature 2:
540lm
Product Feature 3:
Dimmable
Product Feature 4:
90lm/W
  • Quick Order Code: 173216
  • Barcode: 5055788253495
  • Category: Downlights
  • Range Name: Performance+
  • Product Type: LED Downlights
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor
  • Warranty (Years): 5
  • Emergency Option: Optional Conversion Kit
  • Emergency Category: Downlights
  • Product Depth (mm): 24
  • Product Weight (g): 250
  • Diameter (mm): 110
  • Optic: Polycarbonate diffuser
  • Material: Aluminium, Polycarbonate
  • Overall diameter (mm): 110
  • Construction: Die cast Aluminium heat-sink and body, Polycarbonate sheet diffuser
  • Cut Out Diameter (mm): 95
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Luminous Flux in Lumens (lm): 540
  • Luminous efficacy (lm/W): 90
  • Peak Intensity (Cd): 229
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 90
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 20000
  • Power (W): 6
  • Power Consumption (W): 6
  • Power Factor: 0.5
  • Voltage Range (v): 220-240
  • Wattage equivalent (W): 13
  • Dimming: TRIAC
  • Driver Included: Yes
  • Electric Current: AC
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP54
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
