Integral LED

SLIMLINE CEILING/WALL LIGHT MICROWAVE SENSOR 250MM DIA IP54 1056LM 12W 4000K IK10 120 BEAM NON-DIMM WHITE 88LM/W INTEGRAL - ILBHC009

SLIMLINE CEILING/WALL LIGHT MICROWAVE SENSOR 250MM DIA IP54 1056LM 12W 4000K IK10 120 BEAM NON-DIMM WHITE 88LM/W INTEGRAL - ILBHC009

£39.69 exc. VAT
exc. VAT
exc. VAT
 £39.69

£47.63 inc. VAT
Sale Sold out
Shipping calculated at checkout.

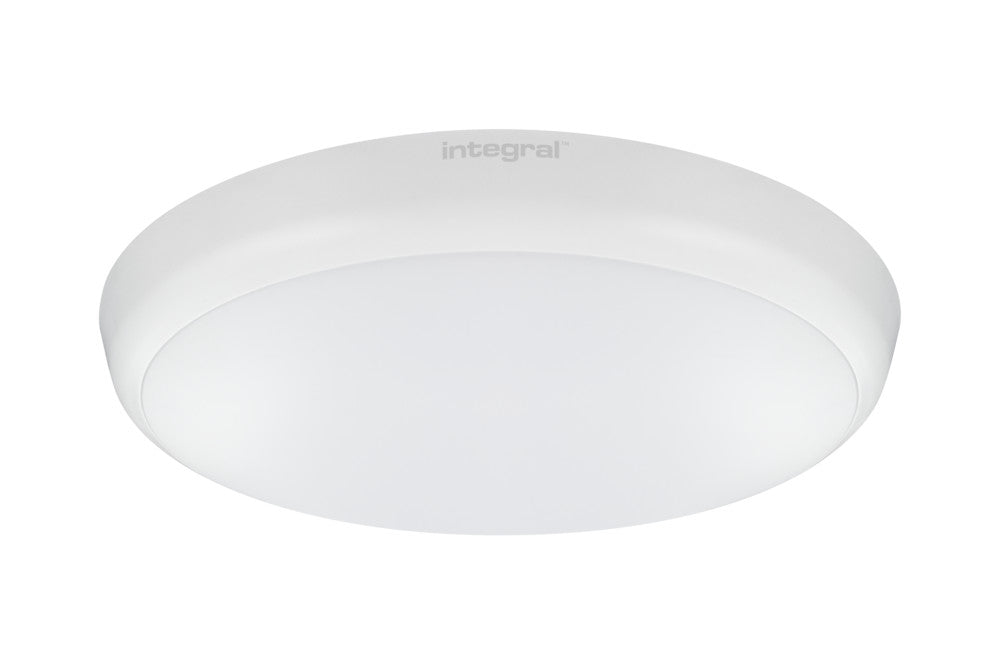

The Integral LED 12W low-energy ceiling and wall light delivers 1056 lumens, 4000K white colour temperature. Its back-lit LED design provides a 120 degree beam angle and an even light distribution. Integral IP54 Slimline ceiling and wall light has a low-profile depth of only 48mm and is suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2 and 3) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 40,000 hours based on normal usage. Each unit is supplied with an easy installation bracket and an easy-to-follow installation guide. Its integrated microwave sensor provides a 140 degree detection area within 5 to 7 meters.

Product Feature 1:
Low-Profile (48mm thin)
Product Feature 2:
Easy installation bracket
Product Feature 3:
Soft light for walls and ceilings
Product Feature 4:
1056 Lumens
Product Feature 5:
Integrated microwave sensor (non-adjustable)
  • Quick Order Code: 867377
  • Barcode: 5055788216032
  • Category: Luminaires
  • Range Name: Slimline
  • Product Type: Bulkheads-Ceiling-Wall Lights
  • Product Body Finish: Matt white
  • Market Segment: Commercial indoor, Residential indoor
  • Features: Non-adjustable Microwave Sensor
  • Warranty (Years): 3
  • Product Depth (mm): 48
  • Product Weight (g): 660
  • Diameter (mm): 250
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Overall diameter (mm): 250
  • Construction: Polycarbonate casing and diffuser
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Ceiling, Wall
  • Placement / Application: Indoor, General Lighting
  • Wiring / Mounting Options: Rear and side / BESA BOX
  • Energy Efficiency Label (Image): ILBHC009_EU_label
  • Luminous Flux in Lumens (lm): 1056
  • Luminous efficacy (lm/W): 88
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 40000
  • Sensor / Overide: Yes with sensor
  • Switching Cycles: 20000
  • Power (W): 12
  • Power Consumption (W): 12
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Amperage (mA): 150
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Emergency Lumens (lm): No
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: F
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK08, IK10
  • IP Rating (Ingress Protection): IP54
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
