Integral LED

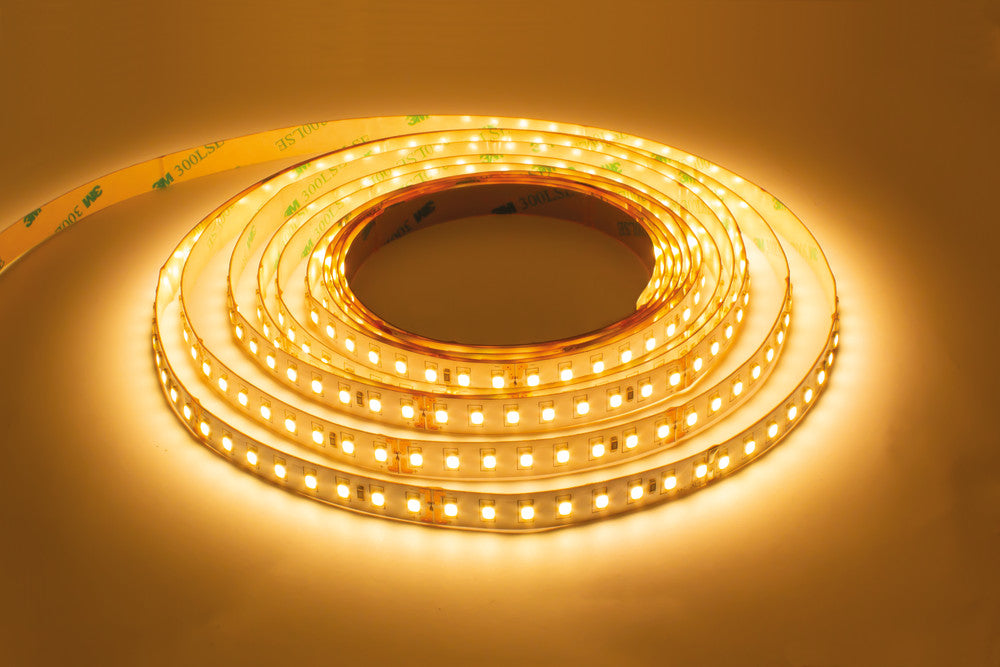

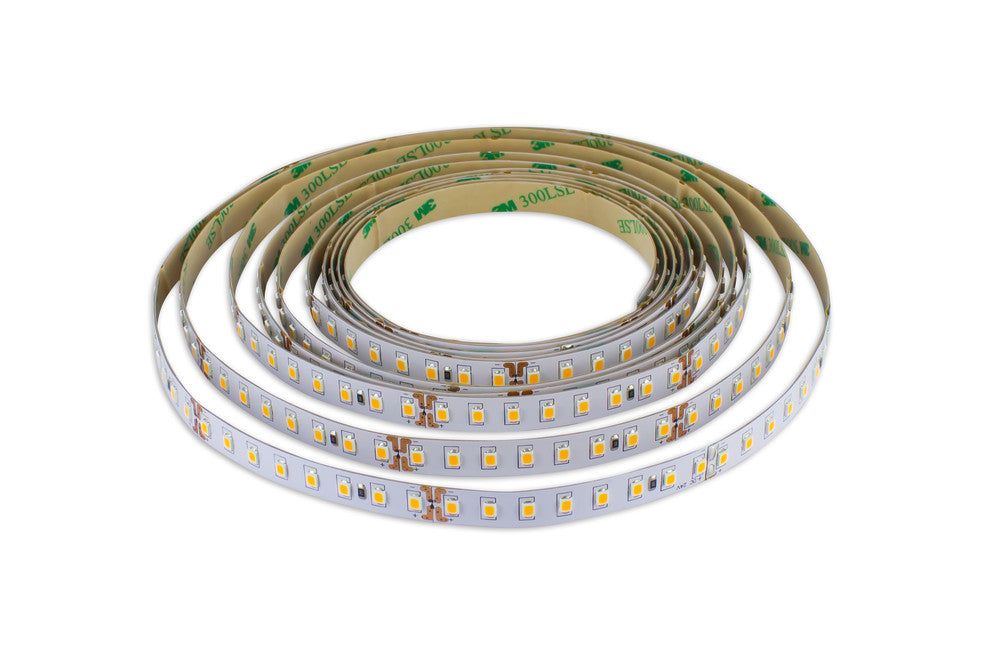

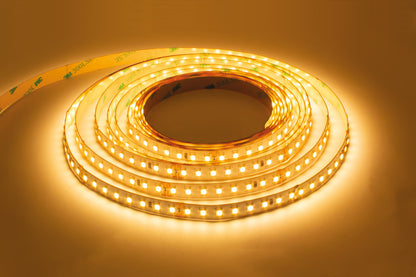

STRIP IP20 5M 2700K 24V 21.6W/M 2350LM/M 120LED/M 10MM WIDTH 120 BEAM CRI90 BAG PACK INTEGRAL - ILSTWHIA131E

STRIP IP20 5M 2700K 24V 21.6W/M 2350LM/M 120LED/M 10MM WIDTH 120 BEAM CRI90 BAG PACK INTEGRAL - ILSTWHIA131E

£64.23 exc. VAT
exc. VAT
exc. VAT
 £64.23

£77.08 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Integral High Lumen LED strips are designed to produce a brightness of 2350lm/m and to ensure superior consistency in colour temperature and light emission across the strip. The high CRI rating of >90 gives a real, vibrant colour rendering to bring out the true colour in space - including homes, retail, galleries and showrooms. The High Lumen LED strips are suitable for highquality architectural lighting and cove lighting with high ceiling integration. The cuttable marked positions every 66.6mm allow for the creation of custom-designed luminaires using suitable aluminium profiles.

Product Feature 1:
High Brightness - 2350lm/m
Product Feature 2:
High luminous efficacy up to 108lm/W
Product Feature 3:
Consistent light across the strip
Product Feature 4:
High CRI > 90
  • Quick Order Code: 475639
  • Barcode: 5055788250852
  • Category: Strips
  • Range Name: High Lumen Strip
  • Product Type: White strip
  • Market Segment: Commercial indoor
  • Features: High lumen
  • Warranty (Years): 3
  • Product Width (mm): 10
  • Product Weight (g): 120
  • Material: PCB
  • Construction: LED surface mounted on to strip
  • Strip Cut Points (mm): 66.6
  • Max Run Length (m): 5
  • Placement / Application: Decorative indoor
  • Strip length (M): 5
  • Strip Width (mm): 10
  • Energy Efficiency Label (Image): ILSTWHIA131E_EU_label
  • Luminous efficacy (lm/W): 109
  • Lumens per meter (lm/m): 21.6
  • Correlated Colour Temperature (CCT) (K): 2700
  • Colour Temperature Name: Warm
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 90
  • Colour Type: White
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • LEDs per meter: 120
  • Lifetime (hours): 25000
  • Power Consumption per meter (W/m): 21.6
  • Voltage (V): 24
  • Watts per metre: 20.1w - 30w
  • Dimming: Dimmable
  • Driver Included: No
  • Electric Current: DC
  • EN: IEC 62031
  • LVD Certified: Yes
  • EN: IEC 62031
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -25
  • Maximum Operating Temperature (°C): 45
