TOUGH SHELL+ BULKHEAD 350MM DIA IP66 2500LM 24W 4000K IK10 120 BEAM NON-DIMM BLACK 104LM/W INTEGRAL - ILBHA041

TOUGH SHELL+ BULKHEAD 350MM DIA IP66 2500LM 24W 4000K IK10 120 BEAM NON-DIMM BLACK 104LM/W INTEGRAL - ILBHA041

£16.77 exc. VAT
exc. VAT
exc. VAT
 £16.77

£20.12 inc. VAT
Sale Sold out
Shipping calculated at checkout.

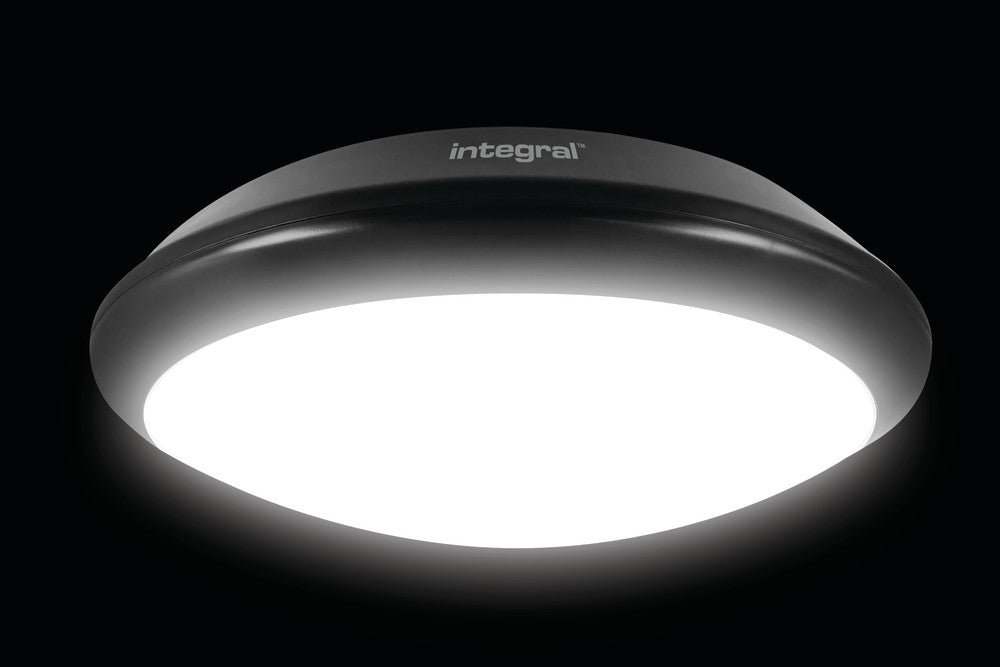

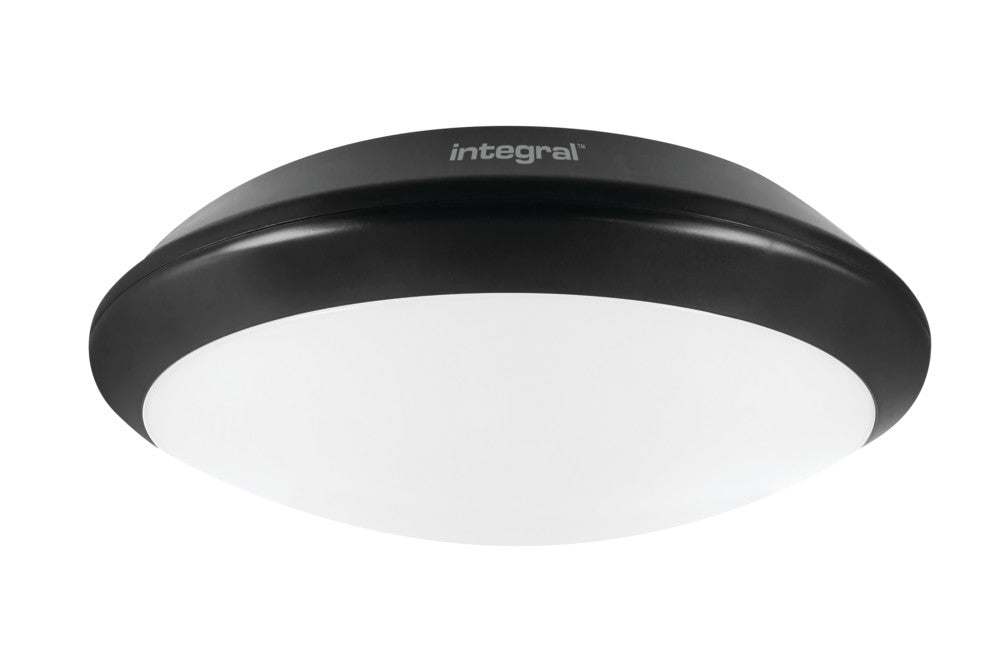

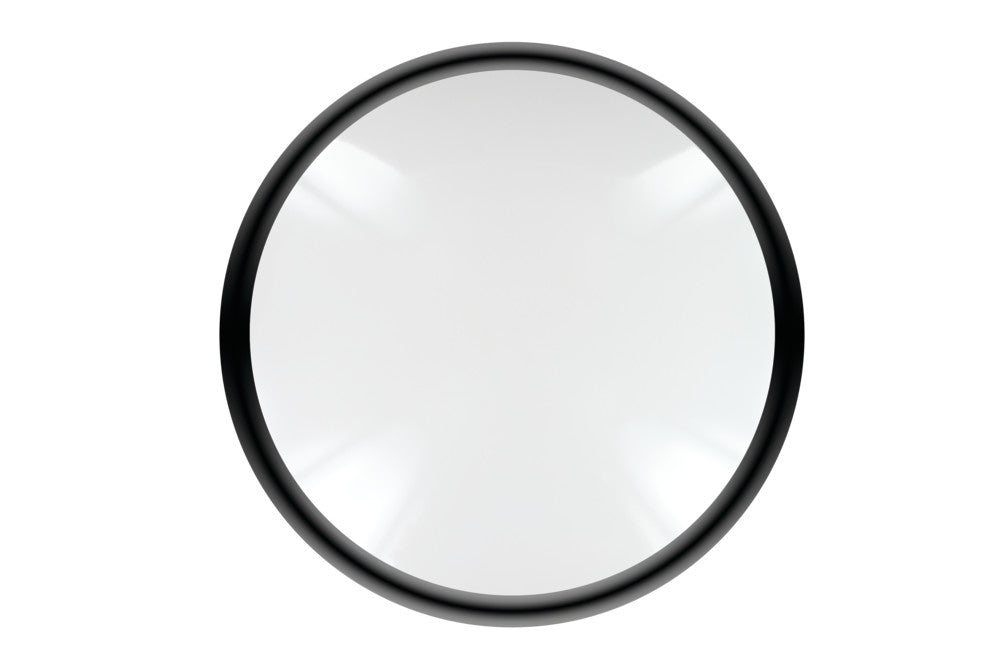

The Integral LED 24W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 120 degree beam angle and an even light distribution, available in a black and white finish.This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 2500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.

Product Feature 1:
Side and rear cable entries
Product Feature 2:
Tough casing (IK10)
Product Feature 3:
2500 Lumen
Product Feature 4:
High efficiency 100lm per watt
  • Quick Order Code: 170418
  • Barcode: 5055788229735
  • Category: Luminaires
  • Range Name: Tough-Shell
  • Product Type: Bulkheads-Ceiling-Wall Lights
  • Product Body Finish: Matt Black
  • Market Segment: Indoor and Outdoor Commercial, Industrial, Residential
  • Features: Standard
  • Warranty (Years): 3
  • Product Depth (mm): 103
  • Product Weight (g): 1190
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Overall diameter (mm): 350
  • Construction: Polycarbonate casing and diffuser
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Ceiling, Wall
  • Placement / Application: Indoor, Outdoor, General Lighting
  • Wiring / Mounting Options: Side and rear cable entries
  • Energy Efficiency Label (Image): ILBHA041_EU_label
  • Luminous Flux in Lumens (lm): 2500
  • Luminous efficacy (lm/W): 104
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 35000
  • Sensor / Overide: No
  • Switching Cycles: 17500
  • Power (W): 24
  • Power Consumption (W): 24
  • Power Factor: 0.9
  • Voltage Range (v): 220-240
  • Amperage (mA): 350
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Emergency Lumens (lm): No
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: F
  • EU Luminaire: L
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK10
  • IP Rating (Ingress Protection): IP66
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
