Integral LED

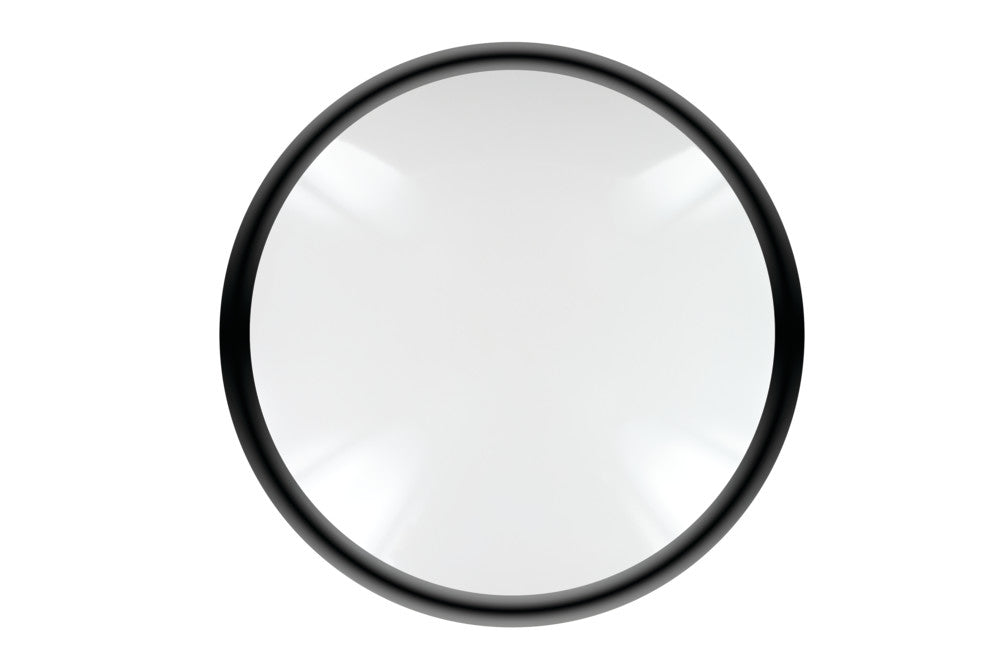

TOUGH SHELL+ BULKHEAD EMERGENCY 3HR AND MICROWAVE SENSOR 308MM DIA IP66 1400LM 15W 4000K IK10 110 BEAM NON-DIMM BLACK 93LM/W INTEGRAL - ILBHA063

TOUGH SHELL+ BULKHEAD EMERGENCY 3HR AND MICROWAVE SENSOR 308MM DIA IP66 1400LM 15W 4000K IK10 110 BEAM NON-DIMM BLACK 93LM/W INTEGRAL - ILBHA063

£51.45 exc. VAT
exc. VAT
exc. VAT
 £51.45

£61.74 inc. VAT
Sale Sold out
Shipping calculated at checkout.

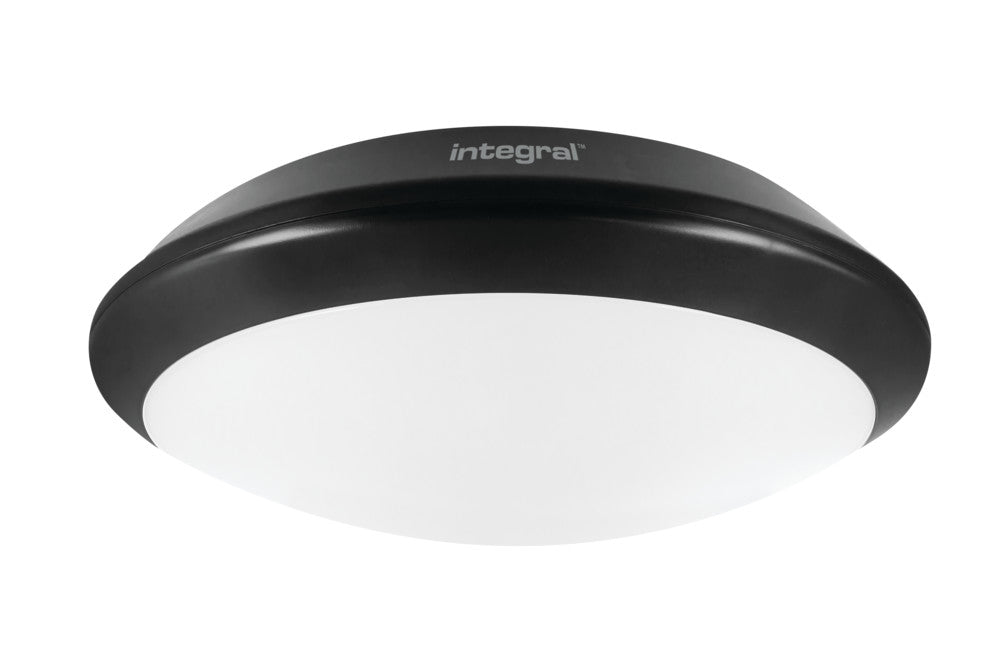

The Integral LED 15W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 110 degree beam angle and an even light distribution, available in a black and white finish.This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 1500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.This model features side conduit entries and BESA fixing points for added convenience when installing.

Product Feature 1:
Side conduit entry and BESA fixing points
Product Feature 2:
Tough casing (IK10)
Product Feature 3:
1400 Lumen (Emergency 200 Lumens)
Product Feature 4:
High efficiency 93lm per watt
Product Feature 5:
Integrated 3hr emergency and adjustable microwave sensor
  • Quick Order Code: 942065
  • Barcode: 5055788247586
  • Category: Luminaires
  • Range Name: Tough-Shell
  • Product Type: Bulkheads-Ceiling-Wall Lights
  • Product Body Finish: Matt Black
  • Market Segment: Indoor and Outdoor Commercial, Industrial, Residential
  • Features: Adjustable Microwave Sensor, Emergency Function
  • Warranty (Years): 3
  • Emergency Option: Integrated
  • Emergency Category: Bulkheads
  • Product Depth (mm): 100
  • Product Weight (g): 1240
  • Optic: Polycarbonate diffuser
  • Material: Polycarbonate
  • Overall diameter (mm): 308
  • Construction: Polycarbonate casing and diffuser
  • Bulb or Luminaire Shape: Round
  • Luminaire Fixing: Ceiling, Wall
  • Placement / Application: Indoor, Outdoor, General Lighting
  • Wiring / Mounting Options: Side conduit entry and BESA BOX fixing point
  • Energy Efficiency Label (Image): ILBHA063_EU_label
  • Luminous Flux in Lumens (lm): 1400
  • Luminous efficacy (lm/W): 93
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature Name: Cool White
  • Beam Angle: 110
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 35000
  • Lumens in Emergency mode (lm): 200
  • Sensor / Overide: Yes with sensor
  • Switching Cycles: 17500
  • Power (W): 15
  • Power Consumption (W): 15
  • Power Factor: 0.65
  • Voltage Range (v): 220-240
  • Amperage (mA): 300
  • Battery Configuration: Ni-Cd 1500mAh
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • Emergency Battery Life (years): 3
  • Emergency Lumens (lm): 200
  • EN: EN-60598
  • LVD Certified: Yes
  • EN: EN-60598
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK10
  • IP Rating (Ingress Protection): IP66
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 45
