Integral LED

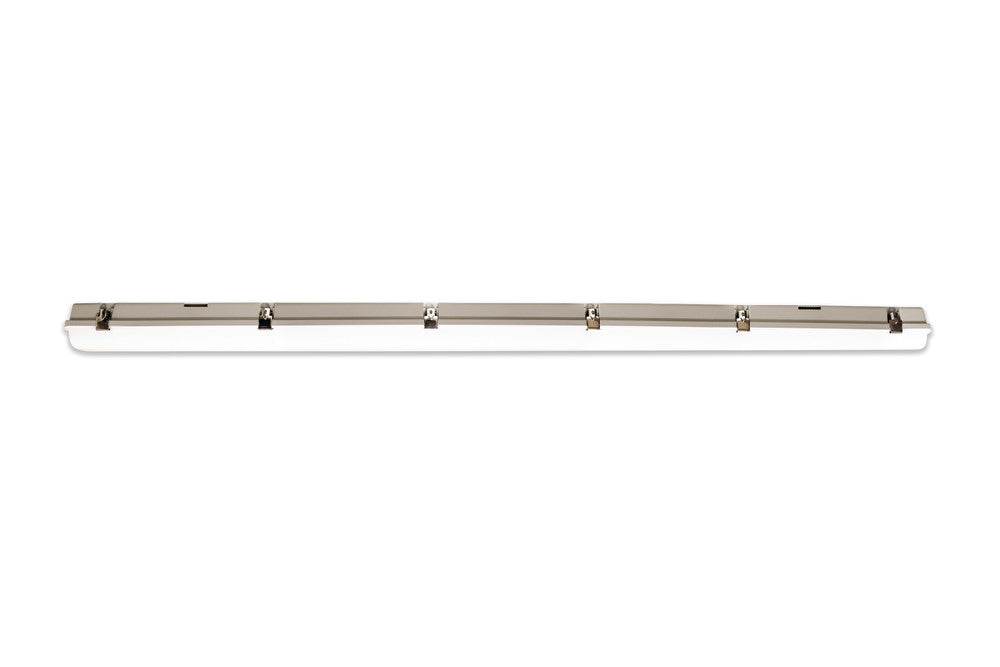

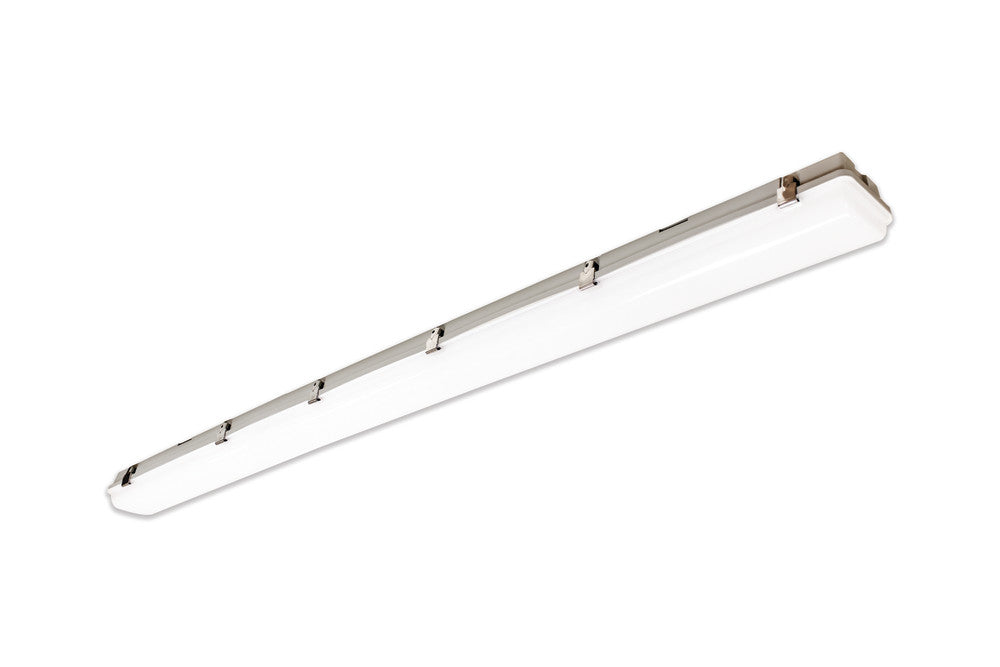

TOUGHSHELL BATTEN SINGLE  MOTION SENSOR IP65 30W 3600lm 4000K 120 BEAM ANGLE 120LM/W 5FT NON-DIMM NON- LINKABLE - ILBTD107

TOUGHSHELL BATTEN SINGLE  MOTION SENSOR IP65 30W 3600lm 4000K 120 BEAM ANGLE 120LM/W 5FT NON-DIMM NON- LINKABLE - ILBTD107

£46.80 exc. VAT
exc. VAT
exc. VAT
 £46.80

£56.16 inc. VAT
Sale Sold out
Shipping calculated at checkout.

The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.This model features an integrated Emergency Function to provide three hours of illumination in the event of a power cut.

Product Feature 1:
Integrated Motion Sensor
Product Feature 2:
IK08 for high impact resistance
Product Feature 3:
IP65 body protects against dust and moisture ingress
Product Feature 4:
Long 50000 hour lifetime
Product Feature 5:
Highly efficient - 120lm/W
Product Feature 6:
3 year warranty
  • Quick Order Code: 384456
  • Barcode: 5055788251354
  • Category: Luminaires
  • Range Name: Tough-Shell
  • Product Body Finish: Matt white
  • Market Segment: Indoor commercial, Industrial, residential
  • Finish: Matt White
  • Warranty (Years): 3
  • Product Length (mm): 1550
  • Product Depth (mm): 83
  • Product Width (mm): 73
  • Optic: Opal diffuser
  • Material: Polycarbonate
  • Construction: Polycarbonate casing and diffuser
  • Bulb or Luminaire Shape: Rectangle
  • Luminaire Fixing: Wall/Ceiling mounted
  • Placement / Application: Indoor, General Lighting
  • Energy Efficiency Label (Image): ILBTD107_EU_label
  • Luminous Flux in Lumens (lm): 3600
  • Luminous efficacy (lm/W): 120
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 120
  • Colour Rendering Index (CRI): 80
  • Frequency Range (Hz): 50/60
  • Instant on (Less than 1 second): Yes
  • LED Size (mm): 2835
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Switching Cycles: 50000
  • Useful Lumens (lm): 400
  • Power (W): 30
  • Power Consumption (W): 30
  • Power Factor: 0.9
  • Voltage Range (v): 200-240
  • Dimming: Non-Dimmable
  • Driver Included: Yes
  • Electric Current: AC
  • LVD Certified: Yes
  • LVD Certified: Yes
  • CE RoHS: Yes
  • New Energy Rating: E
  • Hg 0% (Mercury Free): Yes
  • IK Rating (Impact Protection): IK08
  • IP Rating (Ingress Protection): IP65
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
