Integral LED

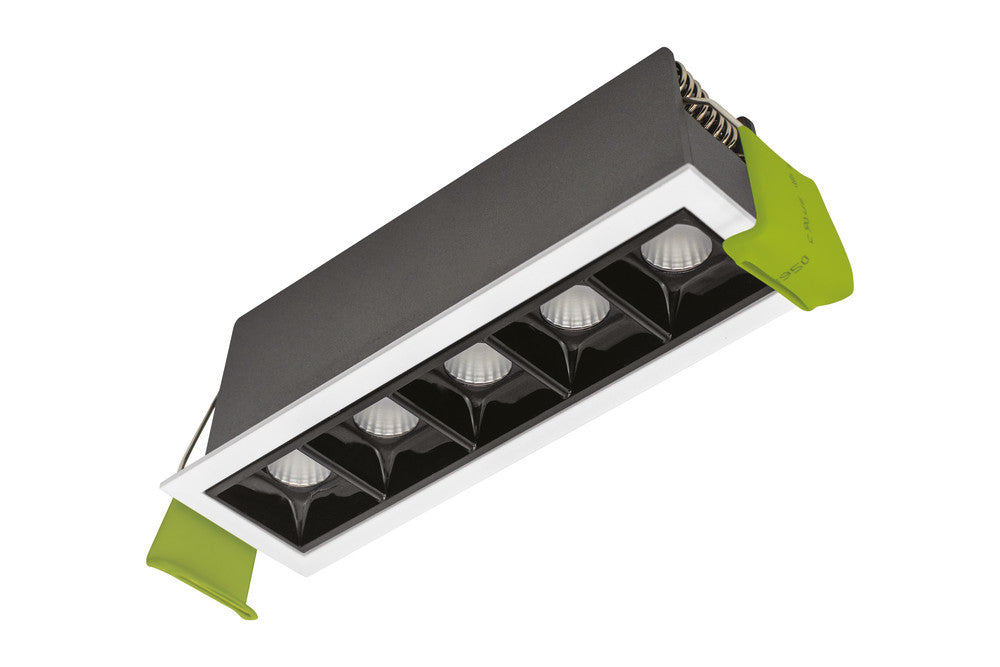

TRACELUX 10W 5 LIGHT 4000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT LED 140MM BY 37MM CUTOUT CRI90 IP20 830LM 30 DEG BEAM 83LM/W WHITE BEZEL WITHOUT OUTER COVER WITHOUT DRIVER - ILDLTR004

TRACELUX 10W 5 LIGHT 4000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT LED 140MM BY 37MM CUTOUT CRI90 IP20 830LM 30 DEG BEAM 83LM/W WHITE BEZEL WITHOUT OUTER COVER WITHOUT DRIVER - ILDLTR004

£33.30 exc. VAT
exc. VAT
exc. VAT
 £33.30

£39.96 inc. VAT
Sale Sold out
Shipping calculated at checkout.

Integral LED’s Tracelux family is a set of linear recessed downlights in various lengths that brings designer lighting at an affordable price, perfect for architectural spaces such as hotel foyers, boardrooms, high-end shops, museums, and galleries.The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests

Product Feature 1:
Premium designer look
Product Feature 2:
Attractive low glare design
Product Feature 3:
High quality aluminium construction
Product Feature 4:
CRI90 real colour
Product Feature 5:
Interchangeable outer covers
Product Feature 6:
Light does not include driver or outer cover
  • Quick Order Code: 676711
  • Barcode: 5055788274735
  • Category: Downlights
  • Range Name: Tracelux
  • Product Body Finish: Matt white
  • Market Segment: Accent lighting
  • Fixed/Tiltable: Fixed
  • Warranty (Years): 5
  • Emergency Option: Optional Conversion Kit
  • Product Length (mm): 147
  • Product Depth (mm): 49
  • Product Width (mm): 45
  • Product Weight (g): 212
  • Optic: Clear Refractor
  • Construction: Die cast Aluminium heat-sink and body
  • Cut Out Length (mm): 140
  • Cut Out Width (mm): 37
  • Bulb or Luminaire Shape: Rectangle
  • Luminaire Fixing: Recess mounted
  • Placement / Application: Indoor, General Lighting
  • Spot Type: SMD
  • Luminous Flux in Lumens (lm): 830
  • Luminous efficacy (lm/W): 83
  • Correlated Colour Temperature (CCT) (K): 4000
  • Colour Temperature: 4000K - Cool White
  • Colour Temperature Name: Cool White
  • Beam Angle: 30
  • Colour Rendering Index (CRI): 90
  • Integrated Light Source: Yes
  • LED Type: Surface mounted device (SMD)
  • Lifetime (hours): 50000
  • Lumens in Emergency mode (lm): 76
  • Power Consumption (W): 10
  • Amperage (mA): 600
  • Input Voltage (V): 15
  • Driver Included: No
  • Electric Current: DC
  • EN: Yes
  • LVD Certified: Yes
  • EN: Yes
  • LVD Certified: Yes
  • CE RoHS: Yes
  • Hg 0% (Mercury Free): Yes
  • IP Rating (Ingress Protection): IP20
  • Lowest Operating Temperature (°C): -20
  • Maximum Operating Temperature (°C): 40
